I currently do not own a table saw or a band saw which is what I have seen typically used to resaw wood in half or to smaller dimensions. I would like to half a board to make a small box but only have a Japanese pull saw, a reciprocating saw, circular saw, a chop saw, and a hack saw.

Which tool would be best to accomplish this and keep the cut reasonably straight? Using the pull saw is my first guess but the board is about 5 feet long and I worry about deviating from the line on material that's about a half an inch thick. I plan to plane down the material once it's sawed so I don't mind losing some of the waste material.

SaSSafraS1232
  • 5,510
  • 9
  • 21
brendon.otto
  • 103
  • 1
  • 6

1 Answers1

8

Which tool would be best to accomplish this

Of the saws you list I think the pull saw is the best choice, in fact while it's theoretically possible to do it with one or two of the others doing it with the pull saw may be the only reasonable option.

The Japanese routinely resaw boards by hand with their saws* and many Western woodworkers who use Asian-style saws find them good for this, better than the Western-style saws they've tried for the same operation. I should mention though, when comparing it should be done using a sharp, properly set rip saw on the Western end, and not a modern panel saw with general-purpose teeth which not infrequently is what the comparison is against.

keep the cut reasonably straight?

A lot of this depends on you. There are some standard techniques that can help ensure a straight cut but just as with anything involving hand tools it usually requires practice to get good results (some people have more of a knack for it than others).

Fundamentally it starts with careful marking out and good sawing technique. You saw slowly (letting the saw do the work and not forcing it, and deliberately not trying to saw fast), and pause often as you go so that you can spot and correct for drift when it occurs. Note these points are just as important for an experienced sawyer as for a beginner, so it's best to get into the habits early.

And also you shouldn't expect to saw a board through in one operation start to finish, that's nearly never done when resawing by hand. Instead expect to work in from both ends to meet up in the middle, repositioning the wood at least three or four times but frequently many more times than this.

Since most people tend to drift in the same direction try not to flip the board when doing this so that the drifts go in opposite directions.

If you do drift off your line a fair bit the sawn faces will require quite a bit of planing to get them flat so you can loose quite a bit more thickness than intended. You may want to factor this in to begin with by working to a greater thickness than eventually needed, or be flexible about the thickness of the stock you end up with.

Some pics showing resawing in action:

Resawing by hand

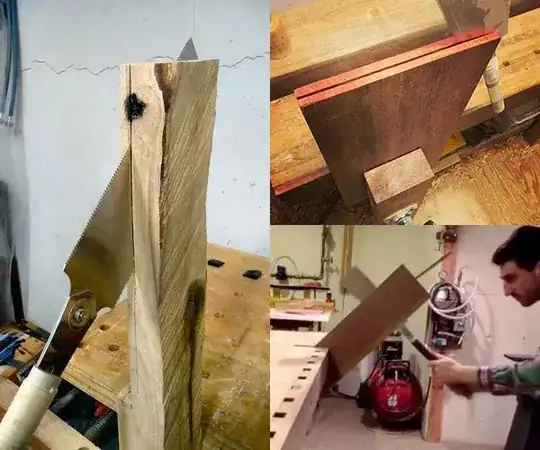

Bonus pics showing it being done with a ryoba:

Resawing with ryoba

I hope these help get across the importance of having your work firmly held as you saw. While using a vice for this is one of the simplest and best ways it's not the only way so anyone without a vice don't despair, you can get creative with a few clamps if that's all you have. But the work must be held firmly or you're setting yourself up for a world of trouble.

Detail pic of a ryoba showing the two types of teeth clearly:

Ryoba with detail of teeth

The larger triangular teeth are the rip teeth.

Kerfing tool
This is the way to 'cheat' on the experience of doing these cuts many times so you have become very good at it. Using a kerf established around all four edges of a board is the number one way to guard against drift and a dedicated kerf-cutting tool is the best way to create those kerfs.

On shorter boards it's quite doable to use a marking or cutting gauge, a knife & straightedge and a chisel to create a definite groove on the edges to work in from, but a properly established kerf is far better at keeping the saw on track (you still have to do your part).

Unfortunately it means you either have to buy a kerfing tool (or kit) or make one from scratch, but if you plan to resaw a lot by hand you may find it worth the money or effort. So far I haven't bitten the bullet and made one but it's on my to-do list as resawing any significant length is proving challenging.

See previous Answer for more on resawing and the modern kerf-cutting tool, the kerfing plane: Creating additional boards from thick lumber

Some further outside links with much more useful information, pics and video on resawing by hand:
Resawing By Hand on Close Grain.
Resawing again – Problems and Solutions on Bob Easton's blog.
Resawing a board by hand from Badger Woodworks.

As you can see, all three of the above emphasise the importance of flipping the board frequently.


*Note that this is a ripping operation so ideally you want to use a rip saw for it. There's a good chance your generic "Japanese pull saw" is sharpened for crosscutting and while it can do the job it'll labour, particularly in fibrous woods.

Graphus
  • 65,691
  • 3
  • 50
  • 139
  • Thank you so much! I will definitely need practice but going at the cut from two directions had not occurred to me. I will definitely investigate the use of a kerfing tool also. – brendon.otto Feb 01 '17 at 15:05
  • Welcome! I've made a couple of typos so when I correct those I'll edit in some more technique info. Expect an updated version of the Answer later on today or first thing in the morning. – Graphus Feb 01 '17 at 15:24
  • Have you written any books, a blog or anything of the kind? I've learned a ton of useful things from reading your posts. – 3Dave Feb 01 '17 at 16:00
  • The most common Japanese saw in Western woodworking is the "ryoba", a two-sided saw. It is almost always sharpened for crosscuts on one side and for rip cuts on the other. For resawing the rip cut side should be used. – SaSSafraS1232 Feb 01 '17 at 16:37
  • @SaSSafraS1232 That's the saw I have, but I am always confusing which side is for which cut. Do you have any suggestions on how to keep them straight? One side has much smaller teeth and the other has large and my assumption is always to use the large teeth for the rip cuts. Unfortunately the packaging of the saw I purchased was in Japanese and couldn't determine with certainty my hunch was correct. – brendon.otto Feb 01 '17 at 16:52
  • @brendon.otto You're correct, the rip-filed teeth should be bigger. You can also tell by the fact that the crosscut teeth will have "fleam" while the rip teeth will not. This is hard to explain without an image, but rip teeth are filed square across so they "chop" while crosscut teeth are filed at an angle so they "slice". – SaSSafraS1232 Feb 01 '17 at 19:16
  • 1
    @brendon.otto this should help show you what fleam is: http://blackburntools.com/articles/saw-tooth-geometry/images/fleam.gif – SaSSafraS1232 Feb 01 '17 at 19:19
  • @SaSSafraS1232 that's a great picture! Can't wait to get home to compare with my saw! Thank you very much! – brendon.otto Feb 01 '17 at 19:34
  • @DavidLively Sorry forgot to reply when I first read your Comment. No I don't have a blog or website. – Graphus Feb 02 '17 at 21:53
  • 1
    Traditionally, another approach would be to use a froe to split off a thinner board. But that doesn't work well unless the grain is going in the right direction, so it's much more useful for lumber that was produced this way in the first place, or that was riftsawn. – keshlam Feb 05 '17 at 05:50
