Mouth of a Plane

Question

I often read about planes that have adjustable mouths, that you can make smaller for finer shavings.

How does this work? Isn't the size of the shaving a function of how much the blade protrudes? It makes sense that a large mouth allows larger shavings to pass.. but why would making the mouth smaller help for finer shavings?

score 5 · Answer 1 · answered Sep 04 '18 at 16:17

5

Wood is not totally rigid. As the plane iron is cutting the wood it is pulling the wood up. This force is transferred ahead of the shaving and the material flexes up slightly. This causes the shaving to get thicker. In the extreme this can even cause fibers to split out ahead of the blade. Having a smaller mouth prevents the wood from pulling up into the throat of the plane and keeps the shaving thinner.

answered Sep 04 '18 at 16:17

SaSSafraS1232

5,510
9
21

1

Ahh.. so the mouth of the plane is holding the wood down before the blade cuts it. This makes sense. TYVM. – speg Sep 04 '18 at 19:47
1

Yes, exactly. That's actually a much more concise way to say it than my answer. – SaSSafraS1232 Sep 04 '18 at 20:09

score 2 · Accepted Answer · answered Sep 05 '18 at 11:54

I often read about planes that have adjustable mouths, that you can make smaller for finer shavings.
It makes sense that a large mouth allows larger shavings to pass.. but why would making the mouth smaller help for finer shavings?

A smaller mouth¹ is not to allow the plane to take finer shavings (a plane with a large mouth can take fine shavings just as easily as coarser ones) it's for improving the quality of the planed surface.

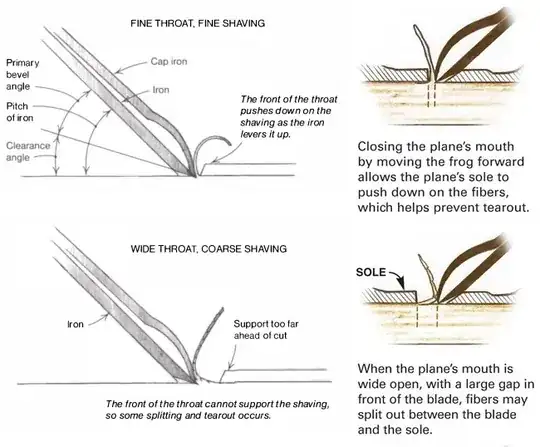

So how does mouth size control surface quality?

^{These images show double-iron planes which complicates the picture slightly but they're the only clear illustrations I could find. The same principle holds for single-iron planes, for which mouth size is of critical importance.}

But mouth size doesn't have to matter
Mouth size became something of secondary importance with the development of the cap iron..... sometime during the 18th century O_O

Prior to this all planes had single irons and mouth size was directly linked to the quality of the surface you could produce as the above images show. Note: almost all of these planes had neither moveable frogs nor adjustable mouths, it was just that those for producing finer surfaces had narrower mouths than those used for rougher work.

But the double iron changed all that. The shaving rising up from the cutting edge encountered the front surface of the cap iron and caused it to roll forwards sharply (or 'break', hence the other common name for the cap iron, the chipbreaker) which forces it to lose leverage and prevents it from being able to tear wood out ahead of the advancing plane iron².

Use the cap iron or mouth size, not both
A tight mouth and a close-set cap iron is a recipe for a blocked plane! So if you want to use mouth size you must move the cap iron back slightly so as to leave sufficient clearance for the easy passage of the shavings.

If you want to use setting of the cap iron to control tearout then a wider mouth doesn't matter much, or at all, so you can adjust the frog to a particular setting (usually right back, so the mouth is fully open) and basically leave it there permanently.

¹ Something worth emphasising is that most planes don't have adjustable mouths per se, on the majority of planes the mouth is fixed, but the irons are mounted to a moveable block (the frog) and this can move forward and back to narrow or widen the gap in front of the mouth.

² The cap iron must be shaped correctly and positioned properly to provide this effect. A great deal has been written about this so do read up on this further, but much of the key info can be read here in this previous Answer, hand plane controls (bevel down)

Thanks for the detailed response. Where did you find those images? That's the type of material I should be reading! — speg, Sep 08 '18 at 00:52
@speg, the right images were taken from a Fine Woodworking article I think. The left one I've seen reproduced in many places, I think it may originally be from one of the books on hand planes, either Chris Schwarz's or Garrett Hack's. — Graphus, Sep 08 '18 at 16:48
@speg, re. more reading, something I wanted to include in the Answer but it was already running long and it was going to come across as a bit too preachy, you've got to be careful what you take in when it comes to the issue of controlling tearout with hand planes. Most modern books don't cover the proper use of the cap iron because for some reason it got mostly forgotten during the latter part of the 20th century (it's not clear why) so the great majority will not tell you in plain English that you can use it by itself to control >95% of tearout issues, without any need to move the frog. — Graphus, Sep 08 '18 at 16:52
A lot of the planes that do have adjustable mouths don't have cap irons. Bevel-up planes like the ones from Lee Valley are good examples — the bevel-up design precludes the use of a cap iron, so you narrow the mouth instead. — Caleb, Sep 09 '18 at 21:30
@Caleb, yes an adjustable mouth is nearly ubiquitous in a bevel-up planes intended for a range of work, precisely because they don't have a cap iron and there needs to be an easily adjustable means to control tearout. The cap iron is far more effective than mouth size at doing this job, the main reason I'm not a fan of bevel-up planes (block planes excepted). — Graphus, Sep 10 '18 at 11:10
