Render issues – Geometrical Pattern

Question

I checked the similar question and didn't see anything like what IM experiencing.

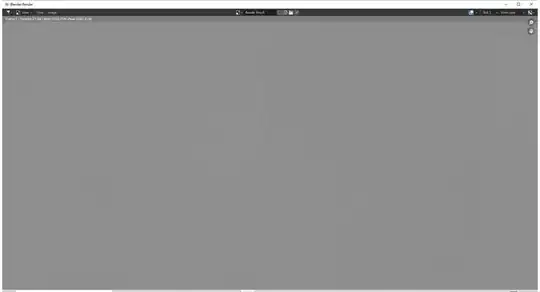

I'm rendering with Eevee, a render sample of 100. When I send it to render, I get a very light grey screen with a slightly darker geometric pattern on it. I don't know how else to explain.

I have tried a few youtube vids on Eevee rendering, and I am stuck. Any advice is welcomed.

Are you able to edit your question to post screenshots or include a link to your .blend file? (https://pasteall.org/blend/) It's hard to identify an issue without being able to properly look at this. — Onyx, Apr 14 '22 at 15:11
You can post a screengrab. Just edit your question and drag and drop your image into the editor or click the image icon in the body header and follow the prompts. To take a screen grab in Blender, use Blender's Window > Screenshot menu. — John Eason, Apr 14 '22 at 15:14
Interesting one :) https://imgur.com/lJhyKsJ ... you can try to delete object per object and see if issue still persist :) Like that, you can get also been file lighter to share :) — vklidu, Apr 14 '22 at 16:49
https://drive.google.com/drive/folders/169hsEYpRlRRixMJLu-qW7sWWpsrjM8TK?usp=sharing — Lizz, Apr 14 '22 at 17:13
change sharing option, like now people have to ask you for permission. — vklidu, Apr 14 '22 at 18:03
sorry, here is shared link, I do appreciate.... https://drive.google.com/drive/folders/169hsEYpRlRRixMJLu-qW7sWWpsrjM8TK?usp=sharing — Lizz, Apr 14 '22 at 19:15
Can be marked as duplicate of 11. Clip Start ... or 12. Object blocks View — vklidu, Apr 15 '22 at 09:24

score 1 · Answer 1 · answered Apr 15 '22 at 08:25

Your issue is object Cylinder.001 hidden from Viewport, but still enabled for Rendering ... check Outliner Editor.

This object is blocking Camera view. If Cylinder.001 should be a part of your render you would have to move Camera a bit forward or enlarge Cylinder.001

... or go to Properties Editor > Camera Properties > Lens > Clip Start and change value from 0.1 at least 0.4

BTW as recommended in my comment, you could discover the issue by your self if you would delete objects / collections in a few steps to see what affects render issue.

you are right, sorry over tired and over frazzeled meant I was thinking logically. thanks — Lizz, Apr 15 '22 at 16:42

score 0 · Answer 2 · answered Apr 14 '22 at 22:19

0

Your background texture is messed up. If you look in the render preview, the hdri doesn't show. I reimported all your assets into a fresh new EEVEE scene, added an hdri, and the render looks completely fine. Try doing the same. Hope this helps!

answered Apr 14 '22 at 22:19

BlenderMaster15

892
6
27

So I need to add an hdri in the world shader editor and not just choose from the drop-down menu? – Lizz Apr 14 '22 at 23:24
I'd copy all assets to a new file, then choose a new HDRi. Also, If you are using an HDRI, keep in mind it won't look too realistic (unlike cycles.) – BlenderMaster15 Apr 15 '22 at 00:58
1

A big thanks to all who commented – Lizz Apr 15 '22 at 17:13
