i've been working on a small oven model and i have a problem with the AO bake, for whatever reason there is a big round shadow in middle of the front and i have no ida what causing it.

Here is a screenshot of what i mean

Here is a screenshot of what i mean

and on the rendered ao texture

ao texture

any idea whats happening?

edit: i'm using blender render with approximate setting

edit2: blend file

enter image description here

Community
  • 1
Delcard
  • 43
  • 5

1 Answers1

3

For me it looks like a somehow artifact of Approximate method of calculating AO. If you slower Error value in Approximate settings, you will likely get rid of this effect (and increase your baking time):

enter image description here

(I added Edge Split modifier here)

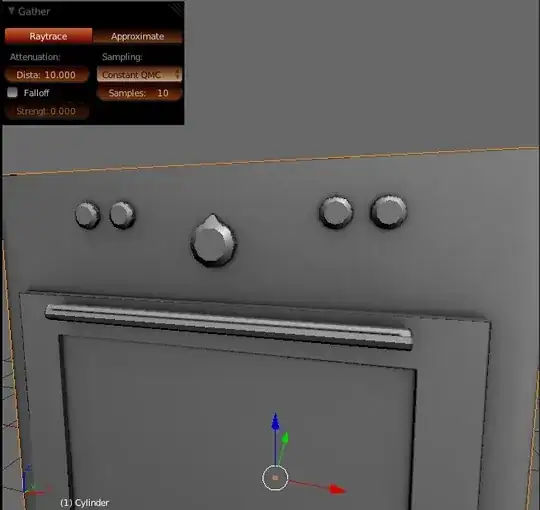

If using Raytrace method (like it's already described here), results will be similar, but at the same time you'll have more control over settings (actually, over baking time):

enter image description here

.blend

Mr Zak
  • 10,848
  • 4
  • 28
  • 77
  • alright thanks that fix'ed it. i just have a small question about the raytrace mode; is there anyway i can make it less grainy and more smooth like the approximate mode? – Delcard Mar 17 '15 at 19:38
  • @Delcard, only by increasing Samples value (and increasing bake time). In fact, it means that if one has 24 seconds to bake using 10 samples (for this model), then he will have 35 sec using 12 samples (as I've count). It's not critical on relatively simple models and as always - one should plan whether he needs high quality and a bunch of samples (and bake time) or it's not so important. – Mr Zak Mar 17 '15 at 20:00
