I duplicated the bone then flip name, but it did not really work. (Like the attached image below.)

The name of the bone was legUp.L. After duplicating, the new bone's name was legUp.L.001. Then I flipped name, and it became legUp.R.001.

Why didn't it remove .001?

enter image description here

Blender version:2.79

Yan Jun Li
  • 33
  • 1
  • 4

3 Answers3

11

I notice that flipping names is working different now in 2.79 version.

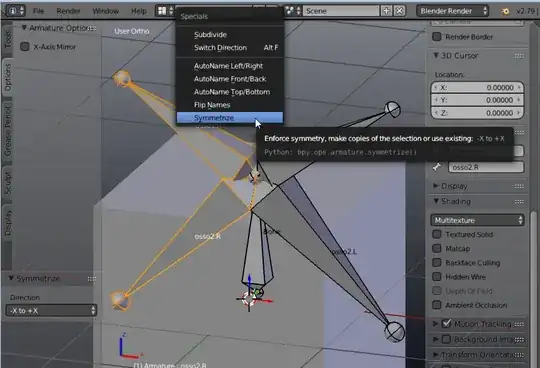

After some testintgs now I see that it only works using W and selecting Symetrize. This really duplicate mirrored and flip the names.

See the image below:

enter image description here

LeoNas
  • 1,643
  • 8
  • 10
2

I had the same issue. Try this. Don't duplicate the bones. Leave them as they are but make sure they are selected. Make sure they are named with an extension that helps blender determine what side in 3D space they occupy. For example .r,.R,_r,.r would all work. With the bones properly named and selected press "w" on your keyboard and select Symetrize. This will mirror your bone across the world axes and should rename them without adding the.001 extension.

Ryan
  • 21
  • 2
  • thanks but why is symmetrize not flipping the bones across the axis ? I had to mirror them manually (CTRL+M) – Phil Apr 29 '22 at 16:16
  • also symmetrize displace the bones so I have to put them back in place – Phil Apr 29 '22 at 16:17
0

Because the opposite of xxx.L.001 is xxx.R.001. Blender has no way of knowing that you follow a "duplicate, flip, rename" approach to create the right-hand side of the armature, and thus the Flip Name operator does only that: flip the name.

dr. Sybren
  • 7,139
  • 1
  • 23
  • 52
  • I think he was referring to this manual page https://docs.blender.org/manual/en/dev/rigging/armatures/bones/editing/naming.html which says "You can copy a bone named “bla.L” and flip it over using Specials ‣ Flip Left-Right Names. Blender will name the copy “bla.L.001” and flipping the name will give you “bla.R”." – m.ardito Oct 22 '17 at 19:50
  • Yap. I took blender manual page as reference. – Yan Jun Li Oct 23 '17 at 02:25
  • https://docs.blender.org/manual/en/latest/animation/armatures/bones/editing/naming.html "Before Blender handles an armature for mirroring or flipping, it first removes the number extension, e.g. “.001”." – user2867288 Nov 13 '21 at 00:16
