Question

Inspired by the recent question about xkcd styled plots I started looking at xkcd again and I came across a comic titled Click and Drag. And if you do that, you start exploring a larger drawing. A much larger drawing. How large? I don't know, but I spent about half and hour exploring it before my arm wore out.

Now I want to see all the comic but I don't want to give myself RSI in the process. That leads me, finally, to my questions:

• How can I use Mathematica to download the entire scrollable drawing?

• How can it be assembled and stored? This will surely be a tremendously large image; what data formats does Mathematica support that can handle it?

• Is it possible to navigate the image from within Mathematica?

In fairness people may ask "what have you tried" and I must say: nothing. Not long after posting I realized that the tiles are stored as PNG files with names that describe the location. This was also mentioned in the comments. This makes acquisition easier than I anticipated, and shifts the emphasis of this question to the second and third points.

Answer 1

Comment

This was originally answered on Oct 2, 2012 using V8. The performance can be dramatically improved using V9's URLFetchAsynchronous, as now shown below.

---

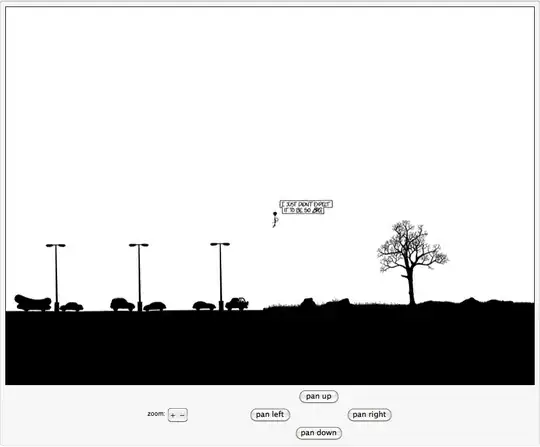

Fortunately, we needn't download all the tiles at once. We can use Dynamic to set up a little pan-and-zoom explorer. The first load takes a bit and zooming out takes a bit. Panning and zooming into previously visited spots are pretty snappy since we cache the tile URLs.

xRad = 2; (* Number of tiles to add to the right and left of the center tile. *)
yRad = 1; (* Number of tiles to add above and below the center tile. *)
xPad = 0; (* Number of extra tiles to cache to the right and left for perfomance. *)
yPad = 0; (* Number of extra tiles to cache above and below for perfomance. *)

Clear[indices2xkcdTile, indices2xkcdTileRecord, center];

indices2xkcdTileURL[m_, n_, z_] :=
  "http://xkcd1.rent-a-geek.de/converted/" <> ToString[z] <> "-" <>
    ToString[n] <> "-" <> ToString[m] <> ".png";

redraw[m0_,n0_,z_] := Map[
  Function[mn,
    Module[{m,n},
      m=First[mn]; n=Last[mn];
      If[indices2xkcdTileRecord[m,n,z] =!="Done",
        indices2xkcdTileRecord[m,n,z]="Done";
        If[m<0 || m>2^z-1 || n<0 || n>2^z-1,
          indices2xkcdTile[m,n,z] = blue,
          URLFetchAsynchronous[indices2xkcdTileURL[m,n,z],
           If[#2 == "data", indices2xkcdTile[m,n,z] =
              ImportString[FromCharacterCode[First[#3]]]]&]
        ]
      ]
    ]
  ],
  Table[{m,n},{m, m0-yRad-yPad, m0+yRad+yPad}, {n, n0-xRad-xPad, n0+xRad+xPad}],{2}];

blue = Image[Array[{0.2,0.2,1}&,{256,256}]];
waiting = Image[Array[0.8&,{256,256}]];
indices2xkcdTile[_,_,_] := waiting;
dynamicIndices2xkcdTile[m_,n_,z_] := Dynamic[Image[indices2xkcdTile[m, n, z],ImageSize->All]];

DynamicModule[{m0,n0,z},
 z = 10; m0 = 508; n0 = 512;
 center[10] = {m0,n0};
 redraw[m0,n0,z];
 redraw[Floor[m0/2],Floor[n0/2],9];
 Deploy[Panel[Column[{
     Dynamic[Grid[Table[dynamicIndices2xkcdTile[m,n,z], {m, m0-yRad, m0+yRad}, {n, n0-xRad, n0+xRad}],
       Spacings -> {0, 0}, Frame -> True]],
     Row[{"zoom: ",
       ButtonBar[{
         "+" :> If[z<10,
           center[z]=.;
           z = z + 1;
           {m0,n0} = center[z];
           redraw[m0,n0,z];
           If[z<9,
             redraw[center[z+1][[1]], center[z+1][[2]],z+1]]],
         "-" :> If[z>1,
           z = z - 1;
           m0 = Floor[m0/2];
           n0 = Floor[n0/2];
           center[z]={m0,n0};
           redraw[m0,n0,z];
           If[z>2,
             redraw[Floor[m0/2],Floor[n0/2],z-1]]]
         }],
       "                                 ",
       Grid[{
         {"",
          Button["pan up",
            m0 = m0-1;
            Do[
              center[zz] = {center[zz][[1]] - 2^(zz-z),center[zz][[2]]},
             {zz,z,10}
            ];
            redraw[m0,n0,z];
            If[z>2,
             redraw[Floor[m0/2],Floor[n0/2],z-1]];
            If[z<9,
             redraw[center[z+1][[1]], center[z+1][[2]],z+1]],
            ImageSize -> Automatic
          ], ""},
         {Button["pan left",
            n0=n0-1;
            Do[
              center[zz] = {center[zz][[1]],center[zz][[2]] - 2^(zz-z)},
             {zz,z,10}
            ];
            redraw[m0,n0,z];
            If[z>2,
             redraw[Floor[m0/2],Floor[n0/2],z-1]];
            If[z<9,
             redraw[center[z+1][[1]], center[z+1][[2]],z+1]],
            ImageSize -> Automatic], "",
          Button["pan right",
            n0 = n0+1;
            Do[
              center[zz] = {center[zz][[1]],center[zz][[2]] + 2^(zz-z)},
             {zz,z,10}
            ];
            redraw[m0,n0,z];
            If[z>2,
             redraw[Floor[m0/2],Floor[n0/2],z-1]];
            If[z<9,
             redraw[center[z+1][[1]], center[z+1][[2]],z+1]],
            ImageSize -> Automatic]},
         {"",
          Button["pan down",
            m0 = m0+1;
            Do[
              center[zz] = {center[zz][[1]] + 2^(zz-z),center[zz][[2]]},
             {zz,z,10}
            ];
            redraw[m0,n0,z];
            If[z>2,
             redraw[Floor[m0/2],Floor[n0/2],z-1]];
            If[z<9,
             redraw[center[z+1][[1]], center[z+1][[2]],z+1]],
            ImageSize -> Automatic], ""}
         }]
       }]}, Alignment -> Center]]]]

Answer 2

You can download all the original tiles using the following functions. 404 and file not founds are handled gracefully. I'm avoiding displaying to the FE so as to lower the chances of crashing.

url[n1_Integer, d1_String, n2_Integer, d2_String] :=
    "http://imgs.xkcd.com/clickdrag/" <> ToString@n1 <> d1 <> ToString@n2 <> d2 <> ".png"

download[dir_String, url_String] :=
    With[{file = First@StringCases[url, Longest[___] ~~ "/" ~~ x__ :> x]},
        CheckAbort[
            Export[FileNameJoin[{dir, file}],
                Quiet@Check[Import[url], Abort[], FetchURL::conopen]
            ],
            ## &[]
        ]
    ]

download["/path/to/xkcd/dir", #] & /@ Flatten@Table[
    url[n1, d1, n2, d2], {n1, 99}, {d1, {"n", "s"}}, {n2, 99}, {d2, {"e", "w"}}]

The tiles are numbered neatly, so you can easily stitch them together to form the full-res image.

Answer 3

There's no easy way, it's a custom script that assembles the image out of individual slices, and it's written by someone who clearly didn't intend anyone to read it again (including himself).

1. Reverse engineering. The script responsible is http://imgs.xkcd.com/clickdrag/1110.js, the image to be displayed is assembled in line 86 ($image=...). Scanning the line further reveals the image data to be <img ... src="http://imgs.xkcd.com/clickdrag/'+name+'.png" .../>; so what you're looking for is hidden in http://imgs.xkcd.com/clickdrag/, with some name.

   The name variable is defined in line 81, referring to tile_name(...), which is a function of some position (current image centre, I suppose). It first does something with some size array (possibly a pixel-to-picture-count conversion), and then returns return (y>=0?(y+1)+'s':-y+'n')+(x>=0?(x+1)+'e':-x+'w');. Stripping away the logical operators, the first parenthesis results in ys or yn with y being a number, depending on whether the initial number is positive. The second parenthesis is the same, except with w/e. This sounds a lot like geographical directions to me, and since the result is some kind of location this makes sense. Completing this interpretation, we can assume that the name parameter is calculated to be something along the lines of YnXe.

   Let's take it to a test and call http://imgs.xkcd.com/clickdrag/1n1e.png - bingo, it's the center image with the guy hanging on the balloon.

   What's left is finding out how far the whole thing goes in each direction. One possible way would be loading all pictures from -1000 to +1000 by brute force, but there must be some other way, since the script stops you from dragging the picture when you've reached the (far left) end. (Guess how I found out). The script has a line map_size=[(size[1]+size[3])*tilesize,(size[0]+size[2])*tilesize];, which is a 2-dimensional array of what is hopefully the x/y extension of the whole picture. This suggests that 1/3 are the extensions in n/s (or e/w), and 0/2 is the other direction. Let's give it a shot and call a couple of the extremes. 1n48e 2n48e (404!) 1n33w 1n34w (404!) - So it really extends 48 tiles east and 33 west, and not necessarily everything is filled up to the top/bottom.

   Taking everything together, we're looking to generate many filenames:

   t = Table[
         {x, y},
         {x, Union[Range[-33, 1], Range[1, 48]]},
         {y, Union[Range[1, 14], Range[-25, 1]]}
   ] // Flatten[#, 1] &;
   tupleToDir[{x_, y_}] := StringJoin @@ ToString /@ {Abs[x], If[x > 0, "e", "w"], Abs[y], If[y > 0, "n", "s"]}
   tupleToDir /@ t

   ==> {"33w25s", "33w24s", "33w23s", ... [3280 elements]}
