How could I add arrows to the axis of a figure?

Question

It is easy for me to add arrows to the axes of the a figure by taking advantage of AxesStyle -> Arrowheads[] when the differences between the horizontal and vertical coordinates is small. For instance, by using

Plot[1/x, {x, -20, 20}, AxesStyle -> Arrowheads[{0.0, 0.03}]]

the arrows appear at both the horizontal and vertical axis. However, I don't know how to add arrows to the ones whose differences are big. For example, when the following program is run

Plot[1/x^5, {x, -20, 20}, AxesStyle -> Arrowheads[{0.0, 0.00003}]]

the arrows cannot be seen obviously? I want to know how I can make the arrows to be found evidently just as the previous one?

@rm: [tag:graphics] might be a better fit; OP's question deals with primitives, as opposed to the plot itself. — J. M.'s missing motivation, Oct 05 '12 at 15:22
@J.M. The choice of primitives is not the issue here... it's just one of padding. Feel free to revert if you think graphics is better. — rm -rf, Oct 05 '12 at 15:33

score 31 · Accepted Answer · answered Oct 05 '12 at 15:17

31

Plot[1/x^5, {x, -20, 20}, AxesStyle -> Arrowheads[{0.0, 0.05}],
     ImagePadding -> None]

Mathematica graphics

answered Oct 05 '12 at 15:17

Dr. belisarius

115,881
13
203
453

Do you need the first 0.0? – cormullion Oct 05 '12 at 15:21
@cormullion only as a placeholder for specifying for example Arrowheads[{-0.05, 0.05}] later – Dr. belisarius Oct 05 '12 at 15:23
4

I know that ImagePadding was needed but I don't see why, nor why the default ImagePadding depends on the parameters of Arrowhead. – DavidC Oct 05 '12 at 15:24
@DavidCarraher I've to think about that. Probably it's due to the time in which the image size is determined (something in the plot scaling may be still unknown). You may post a question :) – Dr. belisarius Oct 05 '12 at 15:28

score 4 · Answer 2 · answered Nov 21 '16 at 12:00

A way to overcome this problem is drawing arrows separately and combining them with the main plot through the Show function:

PR = {{-20, 20}, {-2.1*10^-4, 2.1*10^-4}};(*PlotRange*)
AO = {0, 0};(*AxesOrigin*)
extX = 3;
extY = 3*10^-5;
lw = 0.003;(*width of arrows*)

PR1 = {{PR[[1, 1]], PR[[1, 2]] + extX}, {PR[[2, 1]], PR[[2, 2]] + extY}};
Show[
   Plot[1/x^5, {x, PR1[[1, 1]], PR1[[1, 2]] - extX/5}, PlotRange -> PR1],

   Graphics[{Thickness[lw], Arrow[{{PR1[[1, 1]], AO[[2]]}, {PR1[[1, 2]], AO[[2]]}}]}],
   Graphics[{Thickness[lw], Arrow[{{AO[[1]], PR1[[2, 1]]}, {AO[[1]], PR1[[2, 2]]}}]}],

   AxesOrigin -> AO,
   PlotRange -> PR,
   PlotRangeClipping -> False,
   ImagePadding -> {{All, 30}, {All, 20}},
   AxesStyle -> Black
]

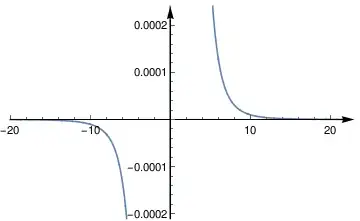

This is the result:

Comment:

This method helped me make a nice ListPlot of data like this,

lpData1 = {{937.65, 0.00640611}, {3758.83, 0.00668279}, {2966.86, 0.00709205}, {4184.60, 0.00788002}, {7708.82, 0.00729601}, {2582.33, 0.00830046}, {4728.61, 0.00704802}, {2257.23, 0.00701525}, {2886.35, 0.00801342}, {6477.75, 0.00755450}};

ListPlot[lpData1, PlotRange -> {{0, Max[lpData1] + 500}, {0, 0.0093}}, AxesStyle -> Arrowheads[{0.0, 0.05}], ImagePadding -> None] leads to lost axes ticks and numbers near them (corresponding plot); changes of ImagePadding and argument of Arrowheads don't help.
