How can i eliminate the diagonal lines from this ListLinePlot?

Question

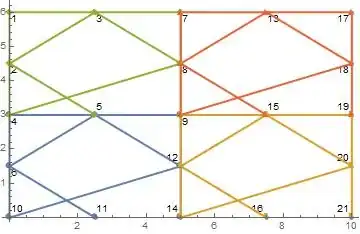

I'm trying to plot a finite element mesh with its node id's. But i'm facing a problem with the ListLinePlot, which connects all poits, instead connect only the neighbour node. I need to eliminate the diagonal lines from the following ListLinePlot:

topol={{4, 1, 5, 8, 3, 2, 6, 7}, {5, 13, 17, 8, 10, 15, 11, 6},
       {30, 37, 35, 26, 33, 36, 31, 28}, {35, 32, 24, 26, 34, 29, 25, 31},
       {17, 23, 18, 8, 20, 21, 12, 11}, {4, 8, 18, 14, 7, 12, 16, 9},
       {24, 14, 18, 26, 19, 16, 22, 25}, {26, 18, 23, 30, 22, 21, 27, 28}};

nnodes = {{0, 6}, {0, 4.5}, {2.5, 6}, {0, 3}, {2.5, 3}, {0, 1.5}, {5, 6},
          {5, 4.5}, {5, 3}, {0, 0}, {2.5, 0}, {5, 1.5}, {7.5, 6}, {5, 0},
          {7.5, 3}, {7.5, 0}, {10, 6}, {10, 4.5}, {10, 3}, {10, 1.5}, {10, 0}};

 allcoords = {{{5, 0}, {5, 3}, {0, 3}, {0, 0}, {5, 1.5}, {2.5, 3}, {0, 1.5}, {2.5, 0}},
              {{10, 0}, {10, 3}, {5, 3}, {5, 0}, {10, 1.5}, {7.5, 3}, {5, 1.5}, {7.5, 0}},
              {{5, 3}, {5, 6}, {0, 6}, {0, 3}, {5, 4.5}, {2.5, 6}, {0, 4.5}, {2.5, 3}},
              {{10, 3}, {10, 6}, {5, 6}, {5, 3}, {10, 4.5}, {7.5, 6}, {5, 4.5}, {7.5, 3}}};

nodeids =
  ListPlot[Table[Labeled[nnodes[[i]], i], {i, Length@nnodes}],
   AspectRatio -> Automatic];
undefplot =
  ListLinePlot[Tooltip[allcoords], AspectRatio -> Automatic,
   PlotMarkers -> Automatic, PlotStyle -> {Thick}];
Show[nodeids, undefplot]

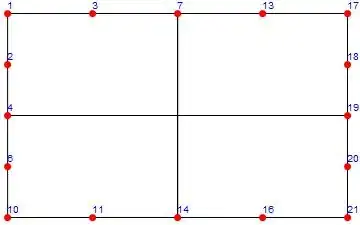

I need something like this:

Needs["NDSolve`FEM`"]
q = QuadElement[topol]
mesh = ToElementMesh["Coordinates" -> nnodes, "MeshElements" -> {q}]
Show[mesh["Wireframe"],
 mesh["Wireframe"["MeshElement" -> "PointElements",
   "MeshElementStyle" -> Directive[Red, PointSize[0.02]],
   "MeshElementIDStyle" -> Blue]]]

But in the figure above is missing the interior nodes.

How can i do that? Thank you!

How did you get your allcoords? Is it output from some code? — BlacKow, Jan 05 '17 at 21:07
Yes: allcoords = Table[nnodes[[ topol[[i]][[j]] ]], {i, 1, Length[topol]}, {j, 1, 8}]; — Stratus, Jan 05 '17 at 21:10
And topo is ...? It will be useful if you show a plot of desired result - maybe hardcoding coordinates fro demonstration purposes. — BlacKow, Jan 05 '17 at 21:11
topol = Transpose@Drop[Transpose@Import["file.txt", "Table"], 1]; — Stratus, Jan 05 '17 at 21:12
topol={{4, 1, 5, 8, 3, 2, 6, 7}, {5, 13, 17, 8, 10, 15, 11, 6}, {30, 37, 35, 26, 33, 36, 31, 28}, {35, 32, 24, 26, 34, 29, 25, 31}, {17, 23, 18, 8, 20, 21, 12, 11}, {4, 8, 18, 14, 7, 12, 16, 9}, {24, 14, 18, 26, 19, 16, 22, 25}, {26, 18, 23, 30, 22, 21, 27, 28}} — Stratus, Jan 05 '17 at 21:13

corey979 · Accepted Answer · 2017-01-05T21:46:37.497

3

ord = FindCurvePath /@ allcoords // Flatten[#, 1] &;

allcoordsNEW = MapThread[Part[#1, #2] &, {allcoords, ord}];
 (* or *)
allcoordsNEW = Table[allcoords[[i, ord[[i]]]], {i, 1, Length@ord}];

undefplot =
  ListLinePlot[Tooltip[allcoordsNEW], AspectRatio -> Automatic,
   PlotMarkers -> Automatic, PlotStyle -> {Thick}];

Show[nodeids, undefplot]

edited Jan 05 '17 at 21:46

answered Jan 05 '17 at 21:38

corey979

23,947
7
58
101

1

A bit overkill for FindCurvePath.. I was sure the OP wants triangular mesh – BlacKow Jan 05 '17 at 21:48
1

Some text to accompany code is usually nice... – Jason B. Jan 06 '17 at 02:19
