ListPlot connection problem

Question

I'm having a problem to plot a finite element solution. I have one array of orinal coordinates and an array with the new coordinates that I want to compare to the original array. The problem occurs when I try to use the ListPlot function. The ListPlot connect the wrong points. Here is the code:

allcoords = {{{0, 0}, {2, 0}, {2, 2}, {0, 2}}, {{2, 0}, {4, 0}, {4,
     2}, {2, 2}}, {{4, 0}, {6, 0}, {6, 2}, {4, 2}}, {{6, 0}, {8,
     0}, {8, 2}, {6, 2}}, {{0, 2}, {2, 2}, {2, 4}, {0, 4}}, {{2,
     2}, {4, 2}, {4, 4}, {2, 4}}, {{4, 2}, {6, 2}, {6, 4}, {4,
     4}}, {{6, 2}, {8, 2}, {8, 4}, {6, 4}}};
tabdeformed = {{0.1298087, 0.}, {2.11861, 0.`}, {4.09145241,
    0.`}, {6.04989819195069`, 0.`}, {8.`, 0.`}, {8.`,
    2.1329644641693166`}, {6.042519693730256`,
    2.122638305596309`}, {4.078337372835341`,
    2.0936720451127013`}, {2.101748416923281`,
    2.0528629576754973`}, {0.11109027800216474`,
    2.010820010989869`}, {8.`,
    4.262007609299412`}, {6.016203961015385`,
    4.241797525456124`}, {4.03110886320685`,
    4.185184098398641`}, {2.04359292365999`,
    4.103056727380703`}, {0.05011706001719006`, 4.018270354896997`}};
undefplot =
  ListLinePlot[allcoords, AspectRatio -> Automatic,
   PlotMarkers -> Automatic, Joined -> True];
defplot =
  ListLinePlot[tabdeformed, AspectRatio -> Automatic,
   PlotMarkers -> {Automatic, 12}, PlotStyle -> {Thick, Red, Dashed}];
Show[defplot, undefplot]

It's not clear what do you mean by "connect the wrong points". Which points do you want to connect? Please describe what is the desired output. — corey979, Dec 28 '16 at 22:57
Each original point has a coordinate. The Finite Element solution is the original coordnate plus the solution, wich is small. When i mean wrong, i mean that the coordinates at the plot are comparing different coordinates. — Stratus, Dec 28 '16 at 23:01
You should also know that Show does not take the plot options the way you think it will. See Plot Option Precedence while combining Plots with Show[] and Why does the order of arguments in Show influence the result?. — corey979, Dec 28 '16 at 23:20

score 1 · Accepted Answer · answered Dec 28 '16 at 23:17

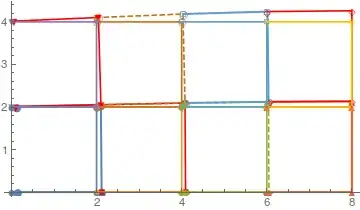

Is this what you want?

nf = Nearest[tabdeformed]

tabdeformed2 =
 ArrayReshape[#, Dimensions@allcoords] & @
  Flatten[nf @ Flatten[allcoords, 1], 1]

undefplot =
  ListLinePlot[allcoords, AspectRatio -> Automatic,
   PlotMarkers -> Automatic, Joined -> True];
defplot =
  ListLinePlot[tabdeformed2, AspectRatio -> Automatic,
   PlotMarkers -> {Automatic, 12},
   PlotStyle -> {Thick, Red, Dashed}];
Show[defplot, undefplot]
