Simple Birth Death Process

Question

I am trying to implement simple birth death process. Why my code does not work? Any suggestion. Thanks. Cross posted http://community.wolfram.com/groups/-/m/t/1205656

birthDeath[λ_, μ_, initialPopulation_, numOfReaction_] :=
 NestList[(
    Δt1 =  RandomVariate[ExponentialDistribution[λ  #]];
    Δt2 = RandomVariate[ExponentialDistribution[μ #]];
    If[Δt1 < Δt2, {# + 1}, {# - 1}]) &,  initialPopulation, numOfReaction]

birthDeath[3, 1, 10, 2]

OkkesDulgerci · Answer 1 · 2017-10-20T22:04:39.290

Here is improved version

   exact[\[Lambda]_, \[Mu]_, initialPopulation_] :=
 Module[{},
  DSolveValue[{p'[t] == (\[Lambda] - \[Mu]) p[t],
    p[0] == initialPopulation}, p[t], t]];
birthDeath[\[Lambda]_, \[Mu]_, initialPopulation_, numOfReaction_] :=
 NestList[(\[CapitalDelta]t1 =
     RandomVariate[ExponentialDistribution[\[Lambda] #[[2]]]];
    \[CapitalDelta]t2 =
     RandomVariate[ExponentialDistribution[\[Mu] #[[2]]]];
    \[CapitalDelta]t = Min[\[CapitalDelta]t1, \[CapitalDelta]t2];
    {#[[1]] + \[CapitalDelta]t,
     If[\[CapitalDelta]t1 < \[CapitalDelta]t2, #[[2]] + 1, #[[2]] -
       1]}) &, {0, initialPopulation}, numOfReaction]

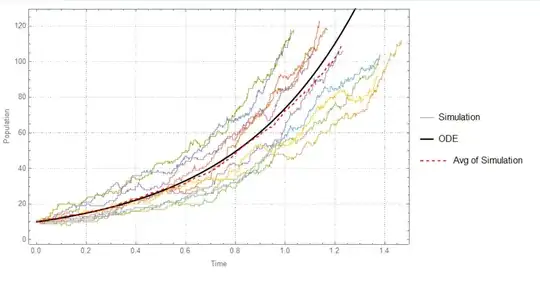

With[{\[Lambda] = 3, \[Mu] = 1, initialPopulation = 10,
  numOfReaction = 1000, numOfsim = 10},
 sim = Table[
   birthDeath[\[Lambda], \[Mu], initialPopulation, numOfReaction],
   numOfsim];
 Show[ListStepPlot[sim, PlotLegends -> {"Simulation"},
   PlotStyle -> Directive[AbsoluteThickness[0.2]], Frame -> True,
   PlotTheme -> "Detailed", FrameLabel -> {"Time", "Population"},
   ImageSize -> Large],
  Plot[Evaluate@exact[\[Lambda], \[Mu], initialPopulation], {t, 0,
    Max@sim[[All, -1, 1]]}, PlotStyle -> {Black, Thick},
   PlotLegends -> {"ODE"}],
  ListLinePlot[Mean@sim, PlotLegends -> {"Avg of Simulation"},
   PlotStyle -> {Red, Dashed}]]]

Chris K · Answer 2 · 2017-10-21T03:36:01.053

6

I just did this in class today using @IstvánZachar's GillespieSSA function from this answer. Load that, then:

ClearAll[n];
reactions = {n -> 2 n, n -> Null};
b0 = 3;
d0 = 2;
rates = {b0, d0};
init = <|n -> 10|>;

tmax = 1;

sto = GillespieSSA[reactions, init, rates, {0, tmax}];

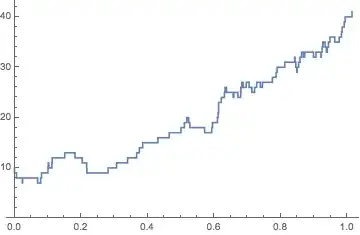

ListLinePlot[sto, InterpolationOrder -> 0, PlotRange -> {0, All}]

Mathematica graphics

For fun, here's a version with density-dependent mortality:

ClearAll[n];
reactions = {n -> 2 n, n -> Null, 2 n -> Null};
b0 = 3;
d0 = 1;
d1 = 0.01;
rates = {b0, d0, d1};
init = <|n -> 10|>;

tmax = 10;

sto = GillespieSSA[reactions, init, rates, {0, tmax}];
ListLinePlot[sto, InterpolationOrder -> 0, PlotRange -> {0, All}]

Mathematica graphics

edited Oct 21 '17 at 03:36

answered Oct 19 '17 at 21:45

Chris K

20,207
3
39
74

Thanks Chris. I saw that fabulous implementation, but it is too advanced for me. I can't follow some part of the code. So I decided to make my own code to understand to process. – OkkesDulgerci Oct 20 '17 at 22:16
Nice application Chris! Thanks for the mention! – István Zachar Oct 21 '17 at 07:07

score 5 · Accepted Answer · answered Oct 19 '17 at 20:46

5

How can I store Δt = Min[Δt1, Δt2] so that I can plot time vs population

One way is

birthDeath2[λ_, μ_, initialPopulation_, numOfReaction_] :=
        NestList[(Δt1 = RandomVariate[ExponentialDistribution[λ #[[2]]]];
                Δt2 =   RandomVariate[ExponentialDistribution[μ #[[2]]]];
                {Min[Δt1, Δt2],  If[Δt1 < Δt2, #[[2]] + 1, #[[2]] - 1]}) &,
  {0, initialPopulation}, numOfReaction]

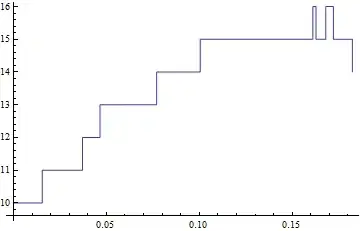

{Δt, pop} = Transpose[birthDeath2[3, 1, 10, 10]];
ListLinePlot[Transpose[{Accumulate@Δt, pop}], InterpolationOrder -> 0]

answered Oct 19 '17 at 20:46

kglr

394,356
18
477
896

Thanks kglr. That's helped a lot. – OkkesDulgerci Oct 20 '17 at 22:21
@okkes, my pleasure. Thank you for the accept. – kglr Oct 20 '17 at 22:54

score 1 · Answer 4 · answered Oct 19 '17 at 18:52

1

I fixed it. If should be If[Δt1 < Δt2, # + 1, # - 1]

birthDeath[λ_, μ_, initialPopulation_, numOfReaction_] :=
 NestList[(
    Δt1 =  RandomVariate[ExponentialDistribution[λ  #]];
    Δt2 = RandomVariate[ExponentialDistribution[μ #]];
    If[Δt1 < Δt2, # + 1, # - 1]) &,  initialPopulation, numOfReaction]

birthDeath[3, 1, 10, 2]

answered Oct 19 '17 at 18:52

OkkesDulgerci

10,716
1
19
38

How can I store $ \Delta t=Min[ \Delta t_1, \Delta t_2] $ so that I can plot time vs population – OkkesDulgerci Oct 19 '17 at 19:34

score 1 · Answer 5 · answered Oct 25 '17 at 07:39

Just to "automate":

f[b_, d_, n0_, n_] :=
 NestList[Function[u,
   If[u[[2]] == 0, u,
    u + {Min[#1, #2], Sign[#2 - #1]} & @@ {RandomVariate[
       ExponentialDistribution[b u[[2]]]],
      RandomVariate[ExponentialDistribution[d u[[2]]]]}]], {0, n0}, n]
vis[b_, d_, n0_, n_, m_] :=
 Module[{tab = Table[f[b, d, n0, n], m], mx},
  mx = Max[(Join @@ tab)[[All, 1]]];
  Show[ListStepPlot[tab,
    PlotStyle -> Directive[AbsoluteThickness[0.2]], Frame -> True,
    PlotTheme -> "Detailed", FrameLabel -> {"Time", "Population"},
    ImageSize -> Large], ListStepPlot[Mean@tab, PlotStyle -> Red],
   Plot[n0 Exp[(b - d) t], {t, 0, mx}, PlotStyle -> Dashed]]]

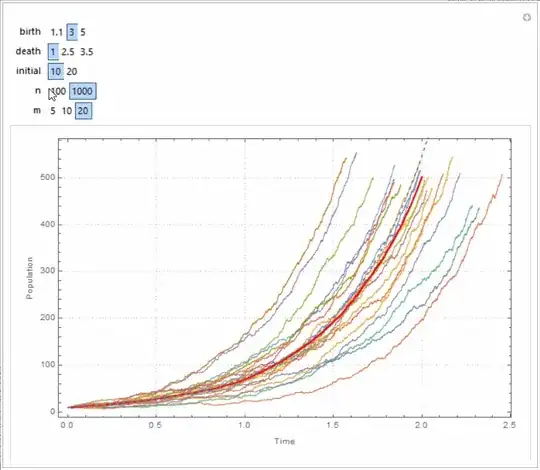

So,

Manipulate[
 vis[birth, death, initial, n,
  m], {birth, {1.1, 3, 5}}, {death, {1, 2.5, 3.5}}, {initial, {10,
   20}}, {n, {100, 1000}}, {m, {5, 10, 20}}]
