Extract four (von Neumann) neighbors of a matrix entry

Question

Assume I have a $m\times n$ matrix and I would like to extract four neighbors of randomly selected entry of a matrix. I have handled if location is not on the boundary. Any suggestion how to handle it if entry is on the boundary or handle it all in once? Thanks.

Here is an example.

SeedRandom[123];
{n, m} = {4, 6};
mat = RandomInteger[{1, 5}, {n, m}];
MatrixForm@mat

$\text{mat}= \left( \begin{array}{cccccc} 4 & 2 & 3 & 1 & 1 & 3 \\ 4 & 2 & 2 & 5 & 1 & 2 \\ 5 & 4 & 3 & 3 & 5 & 5 \\ 3 & 5 & 2 & 2 & 5 & 3 \\ \end{array} \right)$

loc = {RandomInteger[{2, n - 1}], RandomInteger[{2, m - 1}]}
fourNeighbor = (Extract[mat, # + loc] &) /@ {{0, -1}, {0, 1}, {-1, 0}, {1, 0}}

Edit:

Here is Moore Neighbors

nf = Nearest[Tuples@Range@Dimensions@mat -> Flatten[mat],
   DistanceFunction -> ChessboardDistance];
neighbors[pt_] := nf[pt, {All, 1}][[1 ;;]]

Or

   mooreNeighborPositions =  AdjacencyList[NearestNeighborGraph[Tuples@Range@Dimensions@#,
 DistanceFunction -> ChessboardDistance], #2] &;
mooreNeighbors = Extract[#, mooreNeighborPositions@##] &;  mooreNeighbors[mat, {1, 1}]

How do you want to handle boundary cases? Wrap around (periodic) or include <4 neighbors or ? — Chris K, Dec 21 '17 at 15:24

score 10 · Accepted Answer · answered Dec 21 '17 at 15:21

10

You could use Nearest for this.

nf = Nearest[Tuples @ Range @ Dimensions @ mat -> Flatten[mat]];

neighbors[pt_] := nf[pt, {All, 1}][[2;;]]

Some examples:

neighbors[{3, 3}]
neighbors[{1, 1}]
neighbors[{4, 6}]

{2, 4, 3, 2}

{2, 4}

{5, 5}

answered Dec 21 '17 at 15:21

Carl Woll

130,679
6
243
355

something is wrong: {2,4} is not a neighbor to {1,1}... – Ulrich Neumann Dec 22 '17 at 09:04
...sorry my fault! Every thing is ok! – Ulrich Neumann Dec 22 '17 at 09:14

kglr · Answer 2 · 2021-01-05T07:29:30.743

vNNeighborPositions = AdjacencyList[
   NearestNeighborGraph @ Tuples @ Range @ Dimensions @ #, #2] &;

vNNeighbors = Extract[#, vNNeighborPositions @ ##] &;

Examples:

Row[Labeled[Style[#, 20] & @ MatrixForm @
      MapAt[Highlighted[#, Background -> Red] &,
       MapAt[Highlighted, mat, vNNeighborPositions[mat, #]], #],
    Grid[{{"pos:", #}, {"neighbors:", vNNeighbors[mat, #]}}], Top] & /@
 {{1, 1}, {1, 4}, {3, 1}, {4, 6}, {3, 5}},
 Spacer[10]]

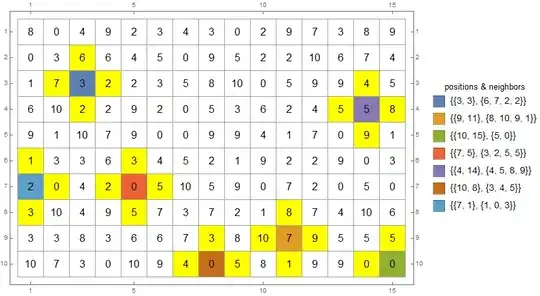

SeedRandom[333]
mat = RandomInteger[10, {10, 15}];
poslist = RandomSample[Tuples @ Range @ Dimensions @ mat, 7];
Legended[MatrixPlot[ReplacePart[mat,
   Join[Thread[poslist -> (ColorData[97] /@ Range[Length@poslist])],
     Thread[vNNeighborPositions[mat, #] & /@ poslist -> Yellow],
     {{_, _} :> White}]], ImageSize -> 1 -> 40, Mesh -> All,
   Epilog ->  MapIndexed[Text[Style[#, 16, Black], #2 - .5] &,
    Reverse /@ Transpose @ mat, {2}]],
 Placed[SwatchLegend[(ColorData[97] /@ Range[Length @ poslist]),
   Style[#, 14] & /@ ({Defer @ #, vNNeighbors[mat, #]} & /@ poslist),
   LegendMarkerSize -> 20, LegendLabel -> "positions & neighbors"], Right]]

Ulrich Neumann · Answer 3 · 2017-12-22T09:13:27.440

2

The four neighbors are

ij=Map[loc + # &, {{0, -1}, {0, 1}, {-1, 0}, {1, 0}}]

Now you must check the index range:

DeleteCases[Map[{Max[1,Min[n,#[[1]] ]],Max[1,Min[m,#[[2]] ]]}& ,ij],loc] (* index pairs*)
Extract[mat,%] (* neighbors  *)

edited Dec 22 '17 at 09:13

answered Dec 21 '17 at 14:25

Ulrich Neumann

53,729
2
23
55

score 1 · Answer 4 · answered Dec 21 '17 at 15:15

nbrs[loc_?VectorQ, m_?MatrixQ] := Module[{nrows, ncols, pts},
  {nrows, ncols} = Dimensions[m];
  pts = Select[(loc + # &) /@ {{0, -1}, {0, 1}, {-1, 0}, {1, 0}},
    Between[#[[1]], {1, nrows}] && Between[#[[2]], {1, ncols}] &];
  Extract[mat, pts]
  ]
