Finding Root of BesselJ

Question

When I work on some physical problem I needed to know how to get all of first 100 roots of BesselJ[n,x] function -which is a quasi periodic function-, as a List. I tried this code:

FindRoot[BesselJ[0, x], {x, {2, 5, 8, 11, 14}}]

{x -> {2.40483, 5.52008, 8.65373, 11.7915, 14.9309}}

but it's so terrible because you need firstly to know the approximation root as argument, and it'll give you the exact root.

I ask if there any other direct methods.

Update from comment:

Yeah [there is BesselJZero[],] but I want to know what is the code inside this BesselJZero[]. I mean how I can construct it by myself?

[Edit notice: I (Michael E2) discovered the answer to this question, which now sits in a comment. I'd be happy to post the comment as an answer if the community thinks this question should be reopened.]

Have you seen BesselJZero[]? There's a link to it near the bottom of the doc page for BesselJ under "See Also". — Michael E2, Jun 28 '18 at 22:00
Yeah but i want to know what is the code inside this BesselJZero[] i mean how i can construct it by myself ? — El-Mo, Jun 28 '18 at 22:11
There are some unsatisfying hints in the "Related Links" of the doc page for BesselJZero, which suggest they might use "use series and asymptotic expansions." — Michael E2, Jun 28 '18 at 22:48
For a more complicated example involving roots of combinations of Bessel functions, see e.g. Labeling solutions of an Eigenvalue equation involving Bessel functions. In my answer to that question, I use FindRoot with starting values determined by the (asymptotic) WKB approximation to find the roots - giving an improved version of BesselJYJYZeros. — Jens, Jun 29 '18 at 02:50
You may also be interested in the numerical approaches discussed in Find roots of a function involving Bessel functions — Jens, Jun 29 '18 at 02:56
Before BesselJZero was introduced in V6, there was a package NumericalMath`BesselZeros`, available here, that contains code for BesselJZero. I don't know if it is the same as the current implementation. It cites Abramovitz & Stegun 9.5.12, which is the same as DLMF 10.21.19. You can inspect the code yourself. The main function is bz[], which handles the zeros of both the $J$ and the $Y$ functions. — Michael E2, Jun 29 '18 at 17:31

score 6 · Answer 1 · answered Jun 29 '18 at 00:33

The asymptotic form for $x\rightarrow\infty$ of $J_0(x)$ is $\sqrt{2/(\pi *x)} {\rm Cos}[x-\pi/4]$, with zeros at $x=(k-1/4)\pi$, for $k=1,2,3,...$. These values of $x$ approximate the zeros quite well.

If you want to use FindRoot so you "can construct it by myself", try

Table[FindRoot[BesselJ[0, x], {x, (k - 1/4) Pi}], {k, 1, 100}]

where k is the index of the root. The result is the same as

BesselJZero[0, Range[1.,100.]]

The asymptotic form for $J_n(x)$ is $\sqrt{2/(\pi *x)} {\rm Cos}[x-\pi/4-n \pi/2]$.

The asymptotic form starts to give poor starting points for the roots for small k when the order n is greater than or equal to 6. — Michael E2, Jun 30 '18 at 22:21

score 6 · Answer 2 · answered Jun 29 '18 at 01:33

6

A more general result than that provided by KennyColnago

The built-in BesselJZero[n, k]

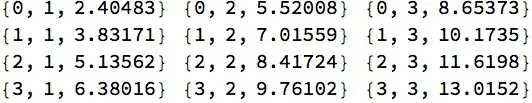

Grid[tab = Table[{n, k, BesselJZero[n, k] // N}, {n, 0, 3}, {k, 3}]]

While this is not the code that Mathematica uses, you can generate your own BesselJZero[n, k] values using FindRoot

Grid[tab2 = Table[
   {n, k, x /. FindRoot[BesselJ[n, x] == 0, {x, (2 k + 1) (2 n + 9)/8}]},
   {n, 0, 3}, {k, 3}]]

Verifying,

tab - tab2 // Chop

(* {{{0, 0, 0}, {0, 0, 0}, {0, 0, 0}}, {{0, 0, 0}, {0, 0, 0}, {0, 0, 0}}, {{0, 0,
    0}, {0, 0, 0}, {0, 0, 0}}, {{0, 0, 0}, {0, 0, 0}, {0, 0, 0}}} *)

answered Jun 29 '18 at 01:33

Bob Hanlon

157,611
7
77
198

1

Sorry, @Bob Hanlon, but {x, (2 k + 1) (2 n + 9)/8} are very bad starting values. Regard tab1 = Flatten[ Table[{n, k, BesselJZero[n, k] // N}, {n, 0, 20}, {k, 100}], 1]; and tab2 = Flatten[ Table[{0, 0, x /. First@ FindRoot[BesselJ[n, x] == 0, {x, (2 k + 1) (2 n + 9)/8}, WorkingPrecision -> 20]}, {n, 0, 20}, {k, 100}], 1]; to see, nearly all but the first 3 zeros are wrong. ListPointPlot3D[tab1 - tab2, PlotRange -> {-1000, 0}] . – Akku14 Jun 29 '18 at 07:34

Ulrich Neumann · Answer 3 · 2018-06-29T07:23:24.537

2

An easy straightforward approach

NSolve[{BesselJ[0, x], 0 <= x <= 50}, x]
(*{{x -> 2.40483}, {x -> 5.52008}, {x -> 8.65373}, {x -> 11.7915},
{x ->14.9309}, {x -> 18.0711}, {x -> 21.2116}, {x -> 24.3525},
{x ->27.4935},{x  -> 30.6346}, {x -> 33.7758}, {x -> 36.9171},
{x ->40.0584}, {x -> 43.1998}, {x -> 46.3412}, {x -> 49.4826}}*)

evaluates all roots in the given range.

Unfortunately the possible range seems to be restricted x<55.7655 perhaps for numerical reasons. Adapting WorkingPrecision might help...

edited Jun 29 '18 at 07:23

answered Jun 29 '18 at 07:03

Ulrich Neumann

53,729
2
23
55

In MMA Version 8.0, x is not restricted at all. – Akku14 Jun 29 '18 at 08:01
If you try NSolve[{BesselJ[0, x], 50 <= x <= 100}, x] MMA 11.0.1.0 gives only two solutions {{x -> 52.6241}, {x -> 55.7655}} which is obviously wrong. – Ulrich Neumann Jun 29 '18 at 08:09
This is a real setback compared to Version 8, which gives all. – Akku14 Jun 29 '18 at 14:13
NSolve[{BesselJ[0, x], 50 <= x <= 100}, x, WorkingPrecision -> 32] gives all roots. – Michael E2 Jun 30 '18 at 06:12
