What are these markers at the bottom of BarLegend?

Question

Bug introduced in 11.3 and fixed in 12.0

I've noticed these small ruler-type markers at the bottom of BarLegend objects.

BarLegend["Rainbow"]

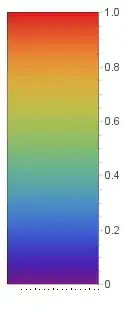

(Enhance!)

I don't remember seeing them in previous answers and they only appear in the documentation when I reevaluate objects. I don't see any reference to it in the documentation to manipulate or hide them either (I've tried Ticks->None to no effect). Any ideas how to remove them?

This is on Mathematica 11.3 on Linux.

Answer 1

I get the same issue in version 11.3 (Wolfram Cloud):

$Version

"11.3.0 for Linux x86 (64-bit) (March 7, 2018)"

bl = BarLegend["Rainbow", LegendMarkerSize -> {100, 300}]

ImageResize[ImageCrop[Rasterize[bl, RasterSize -> 200], {Full, 100}, Top], 500]

This is caused by the option FrameTicks -> {{False, False}, {True, False}} (that gets in there somewhere along the way):

Cases[ToBoxes[bl], p : Rule[FrameTicks, _], Infinity]

{FrameTicks -> {{False, False}, {True, False}}}

A work-around: post-process the box expression to modify FrameTicks option value:

RawBoxes @ Replace[ToBoxes[bl], Rule[FrameTicks, _] :> Rule[FrameTicks, False], ∞]

Alternatively, change the setting for FrameTicksStyle to White:

RawBoxes@Replace[ToBoxes[bl], Rule[FrameTicksStyle, _]:> Rule[FrameTicksStyle, White], ∞]

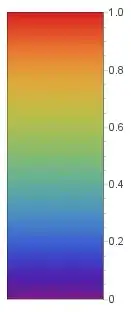

same picture

Answer 2

kglr's answer shows a more comprehensive analysis of what is going on. However, if the goal is to export your graphic, there's a simple, but limited workaround. Testing shows that using Export on a rasterized format will display the artefact ticks but NOT if the export is in vector graphics format.

Compare

Export["rasterbar.png",BarLegend["Rainbow"]]

and

Export["vectorbar.svg",BarLegend["Rainbow"]]

(*.pdf also works)
