I wish to debug my NDSolve function and this is my first time using the Mathematica debugger. I have read around and attempted various different ways of debugging but I cannot figure it out. I want to be able to go step by step through NDSolve and see values for x[t], y[t], t, etc.. My code is as follows:

(* Define the \[Theta] terms via piecewise functions *)
\[Theta]North \
:= Piecewise[{{ArcTan[x[t] - L/2 , y[t] - H],
    x[t] > L/2 && y[t] > H}, {ArcTan[x[t] - L/2, H - y[t]],
    x[t] > L/2 && y[t] < H}, {ArcTan[L/2 - x[t], y[t] - H],
    x[t] < L/2 && y[t] > H}, {ArcTan[L/2 - x[t], H - y[t]],
    x[t] < L/2 && y[t] < H}}]


(* Define the force terms in the x and y directions using piecewise \
functions *)
Fnx :=
 Piecewise[{{Cn*Abs[H - y[t]]*Cos[\[Theta]North]*Sign[L/2 - x[t]],
    x[t] != L/2 && y[t] != H}, {Cn*(L/2 - x[t]), y[t] == H}, {0,
    x[t] == L/2}}]
Fny := Piecewise[{{Cn*(H - y[t])*Sin[\[Theta]North],
    y[t] != H && x[t] != L/2}, {Cn*(H - y[t]), x[t] == L/2}, {0,
    y[t] == H}}]

(* Define frictional terms *)
Ffx := -B*Sign[x'[t]]
Ffy := -B*Sign[y'[t]]

solution =
  NDSolve[{x''[t] == (1/M)*(Fnx + Ffx), y''[t] == (1/M)*(Fny + Ffy),
    x[0] == x0, x'[0] == vx0, y[0] == y0, y'[0] == vy0}, {x, y, Fnx,
    Fny, \[Theta]North}, {t, 0, simTime}];

Is there a way to peer inside of NDSolve one step at a time? (I hope so that is kind of the point of a debugger).

Edit 1: Adding Parameter values:

(* Define the constants for simulation *)
(* Define the size of the \
box *)
L = 5;
H = 5;
(* Define Spring Constant *)
Cn = 0.3;
(* Define initial conditions *)
x0 = 0;
y0 = 0;
vx0 = 0;
vy0 = 0;
(* Define magnitude of sliding friction *)
B = 0.1;
(* Define mass of object *)
M = 1;
(* Define the simulation length *)
simTime = 50;
Connor Fuhrman
  • 477
  • 2
  • 9
  • 2
    Could you add parameter values so that your code can be run? Also, you might check out the NDSolve options EvaluationMonitor and StepMonitor. – Chris K Oct 18 '18 at 03:07
  • I was able to implement the StepMonitor function as such: StepMonitor :> Print["t = ", t, " (x,y) = (", x[t], ",", y[t], "). (x',y') = (", x'[t], ",", y'[t], "). [Theta] = ", [Theta]North, ". Fn = (", Fnx, ",", Fny, ")."] – Connor Fuhrman Oct 18 '18 at 04:34
  • Do you mean you want to stop at every time step and observe with the debugger? Have you read this post?: https://mathematica.stackexchange.com/a/119916/1871 – xzczd Oct 18 '18 at 07:47

2 Answers2

4

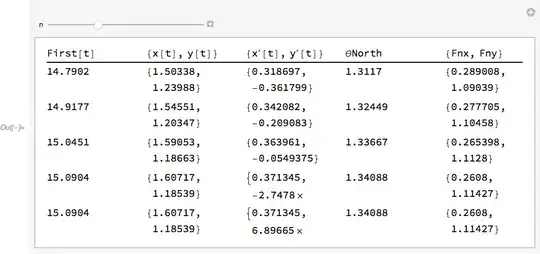

The steps are stored in the InterpolatingFunction results. Here's a way to view five steps at a time:

stepdata = MapThread[
   Function[{tt, xx, yy, xp, yp},
    Block[{x, y, t},
     x[t] = xx; x'[t] = xp;
     y[t] = yy; y'[t] = yp;
     {First@tt, {x[t], y[t]}, {x'[t], y'[t]}, θNorth, {Fnx,
        Fny}} /. solution]
    ],
   {x["Grid"], x["ValuesOnGrid"], y["ValuesOnGrid"],
     x'["ValuesOnGrid"], y'["ValuesOnGrid"]} /. solution
   ];

Manipulate[
 TableForm[
  Map[Pane[#, {100, 40}] &, stepdata[[n ;; n + 4]], {2}],
  TableHeadings -> {None,
    HoldForm /@
     Unevaluated@{First@t, {x[t], y[t]}, {x'[t], y'[t]}, θNorth, {Fnx, Fny}}}],
 {n, 1, Length@stepdata - 4}]

Mathematica graphics

Michael E2
  • 235,386
  • 17
  • 334
  • 747
2

I read the post suggested by xzczd and it is quite useful. However I did accomplish what I wanted by the StepMonitor function with the Print function (although it did generate over 70 pages of data).

I used this command:

StepMonitor :> Print["t = ", t, " (x,y) = (", x[t], ",", y[t], "). (x',y') = (", x'[t], ",", y'[t], "). [Theta] = ", [Theta]North, ". Fn = (", Fnx, ",", Fny, ")."]
Chris K
  • 20,207
  • 3
  • 39
  • 74
Connor Fuhrman
  • 477
  • 2
  • 9
  • You can use Monitor. For more information, check the Applications section of Monitor carefully. – xzczd Oct 19 '18 at 07:54
