Graphing random points on the XY-plane

Question

I am trying to generate around 10-20 points on the xy- plane in the domain $[-10,10]\times[-10,10]$ (in 3D) and I am having trouble. I want to draw the plane in 3D, graph the random (they do not have to be random but at least nicely dispersed) points, and then graph vertical lines through these points. I found this How to generate random points in a region? and tried to adopt it for a plane in 3D but since i am very new to Mathematica I cannot seem to make it work. I am aware of the RandomPoint command but the problem is i need to describe the region and I do not know how to describe the region of xy-plane. I tried z=0 but I think it only accepts "worded" regions.

Any help would be appreciated.

If you want to use RandomPoint, there's ImplicitRegion: RandomPoint[ ImplicitRegion[Abs@x < 10 && Abs@y < 10 && z == 0, {x, y, z}], 100] will give you 100 points in the specified region. Alternatively, you could also generate points in 2D using RandomReal[10,{100,2}] and add the z coordinate using Append[0]/@pts — Lukas Lang, Mar 05 '19 at 17:22

score 10 · Accepted Answer · edited Nov 18 '19 at 06:54

10

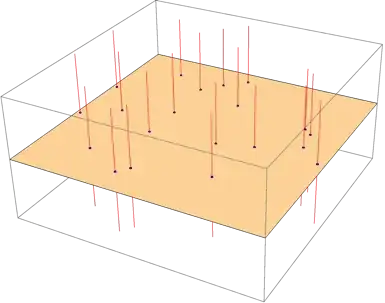

You can use RandomPoint with InfinitePlane and draw lines using InfiniteLine:

plane = InfinitePlane[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}}];
pts = RandomPoint[plane, 20, {{-10, 10}, {-10, 10}, {0, 0}}];

Graphics3D[{plane, Red, InfiniteLine[#, {0, 0, 1}] & /@ pts, Blue,
  Sphere[pts, .1]}, PlotRange -> {{-10, 10}, {-10, 10}, {-5, 5}}]

edited Nov 18 '19 at 06:54

J. M.'s missing motivation

124,525
11
401
574

answered Mar 05 '19 at 17:37

halmir

15,082
37
53

Wow, that is perfect. Now if i wanted to change the direction vector of the line depending on the points, how would i do that? I tried changing ${0,0,1}$ to ${#[[2]], #[[1]], sqrt[#[[2]]^2 + #[[1]]^2]}$ but that didn't work. – Sorfosh Mar 05 '19 at 19:18
1

@Sorfosh it works fine to me. Did you type sqrt instead Sqrt ? – halmir Mar 05 '19 at 20:23
oh... wow. I forgot it is case sensitive. Thank you! :P – Sorfosh Mar 05 '19 at 21:41

m_goldberg · Answer 2 · 2019-03-05T18:25:41.033

4

Maybe this will work for you.

First define a function for generating $n$ random points on the xy-plane.

pts[n_] := {#1, #2, 0} & @@@ RandomReal[{-10., 10.}, {n, 2}]

Then

SeedRandom[42];
Module[{n = 20, p0} ,
  p0 = pts[n];
  Graphics3D[
    {{AbsolutePointSize[4], Point[p0]},
     {Red, Thick, HalfLine[#, {0, 0, 1}] & /@ p0}},
    PlotRange -> {{-10, 10}, {-10, 10}, {0, 10}}]]

edited Mar 05 '19 at 18:25

answered Mar 05 '19 at 17:39

m_goldberg

107,779
16
103
257
