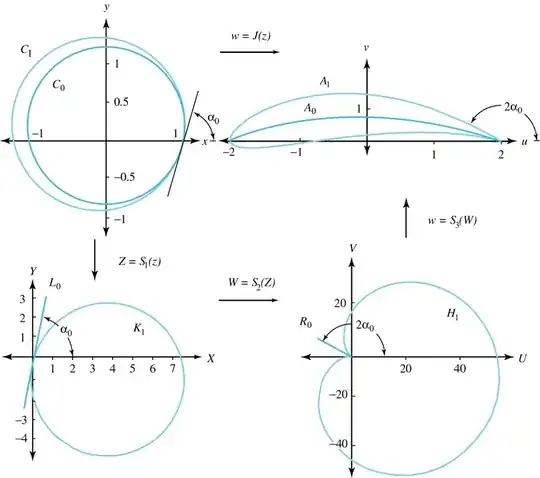

I have a problem with computing of $\alpha_{0}$ like on the figure for
joukowski[c_][{x_, y_}] := {x, y} + 1/(x^2 + y^2) {x, -y}
How to show on manipulate tangent line and change of $\alpha$ that $\alpha$ for this simulations:
Manipulate[
Module[{radius = Max[Norm[{1, 0} - center], Norm[{1, 0} - center]], circle},
circle = 1 {Cos[#], Sin[#]} + center &;
ParametricPlot[
{circle[θ], joukowski[1][circle[θ]]}, {θ, 0, 2 π},
PlotRange -> 2.5,
Epilog ->
{AbsolutePointSize[10],
Blue, Point[{1, 0}], Point[{-1, 0}],
Red, Circle[{-0.2, 0.2}, 0.08],
Circle[{-0.2, 0.2}, 0.05],
Circle[{-0.2, 0.2}, 0.02],
Line[{{-0.2, 0.1}, {-0.2, 0.3}}],
Line[{{-0.3, 0.2}, {-0.1, 0.2}}]},
PlotStyle -> {{Thick, Blue}, {Thick, Red}},
ImageSize -> {480, 480}]],
{{center, {0, 0}}, Locator},
SaveDefinitions -> True]

GridorGraphicsGrid. -- Is it also that you do not know how to calculate the tangent line? Or is that you do not know how to plot the equation? -- Finally, a third possibility is that you do not know how to useArrowto make the double-arrow angle markers? -- -- One other thing that is not clear to me is how the point of tangency is determined. In yourManipulatethe curve moves about. – Michael E2 Nov 24 '19 at 14:24
