Solving complex differential equation with ParametricNDSolveValue

Question

I am trying to solve a complex differential equation for the function $S(u,v)$ depending on the parameter $\omega$. The code is:

ClearAll["Global`*"]
m = 100;
L = 2;
r[u_, v_] = 2 m (1 + ProductLog[- ((u v)/E)]);
F[u_, v_] = (32 m^3)/r[u, v]^3 Exp[-(r[u, v]/(2 m))];
Vz[u_, v_] = FullSimplify [-2 (D[F[u, v], u] D[F[u, v], v])/F[u, v] +
    4 D[r[u, v], u, v]/r[u, v] + 2/F[u, v] D[F[u, v], u, v] +
    2/F[u, v] D[F[u, v], u] D[r[u, v], v] +
    2/F[u, v] D[F[u, v], v] D[r[u, v], u]];
Z[u_, v_] = Exp[-I (u + v)/2 ω] S[u, v];
sol = ParametricNDSolveValue[{D[Z[u, v], u, v] +
     F[u, v] (L (L + 1))/r[u, v]^2 Z[u, v] + Z[u, v] Vz[u, v] == 0,
   S[u, -1] == 1, S[1, v] == 1},
  S, {u, 1, 100}, {v, -100, -1}, ω]

I get the error

ParametricNDSolveValue::mconly: "For the method !("IDA"), only machine real code is available. Unable to continue with complex values or beyond floating-point exceptions"

So it seems that Mathematica expects real numbers, but it finds complex numbers instead. How can I solve the differential equation?

Answer 1

This question can be addressed by solving for Z rather than S, splitting the PDE into its real and imaginary parts, and later constructing S if desired.

solr[ω_] := NDSolveValue[{D[Z[u, v], u, v] +
    F[u, v] (L (L + 1))/r[u, v]^2 Z[u, v] + Z[u, v] Vz[u, v] == 0,
    Z[u, -1] == Cos[1/2 (-1 + u) ω], Z[1, v] == Cos[1/2 (1 + v) ω]},
    Z, {u, 1, 2}, {v, -2, -1}]
soli[ω_] := NDSolveValue[{D[Z[u, v], u, v] +
    F[u, v] (L (L + 1))/r[u, v]^2 Z[u, v] + Z[u, v] Vz[u, v] == 0,
    Z[u, -1] == -Sin[1/2 (-1 + u) ω], Z[1, v] == -Sin[1/2 (1 + v) ω]},
    Z, {u, 1, 2}, {v, -2, -1}]
zr = solr[1];

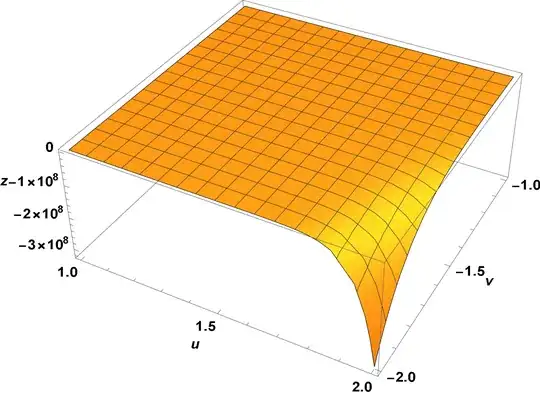

Plot3D[zr[u, v], {u, 1, 2}, {v, -2, -1}, PlotRange -> All,
    ImageSize -> Large, AxesLabel -> {u, v, z}, LabelStyle -> {15, Black, Bold}]

zi = soli[1];
Plot3D[zi[u, v], {u, 1, 2}, {v, -2, -1}, PlotRange -> All,
    ImageSize -> Large, AxesLabel -> {u, v, z}, LabelStyle -> {15, Black, Bold}]

Two notes. First, the integration ranges of u and v have been greatly reduced, because the solution grows exponentially large otherwise, and Plot3D fails. Second, using ParametricNDSolveValue instead of SetDelayed and NDSolveValue causes the kernel to crash.
