RegionPlot edges with different BoundaryStyles?

Question

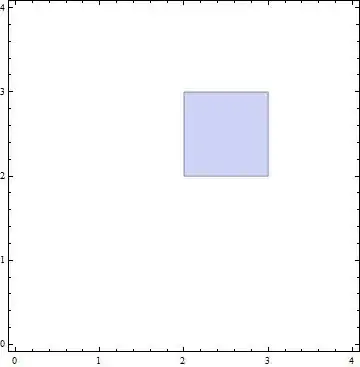

I executed this command:

RegionPlot[x > 2 && x < 3 && y > 2 && y < 3, {x, 0, 4}, {y, 0, 4}]

I would like the top and right sides of the square to be dashed lines and the bottom and left sides of the square to be thick, solid lines. How do I do this?

Answer 1

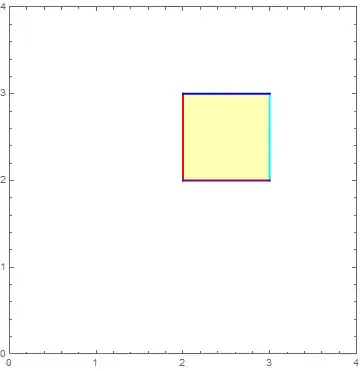

One possible way is to use the options MeshFunctions and Mesh:

RegionPlot[x >= 2 && x <= 3 && y >= 2 && y <= 3, {x, 0, 4}, {y, 0, 4},
 PlotPoints -> 100,
 BoundaryStyle -> None,
 PlotStyle -> Opacity[.3, Yellow],
 MeshFunctions -> {# &, #2 &},
 Mesh -> {{{2, Opacity[1, Red]}, {3, Opacity[1, Cyan]}},
  {{2, Opacity[1, Purple]}, {3, Opacity[1, Blue]}}},
 BaseStyle -> Thick]

An alternative way is to use Graphics (as suggested by MarcoB in comments):

Graphics[{FaceForm[Opacity[.3, Yellow]], Rectangle[{2, 2}, {3, 3}],
  Thick, MapThread[List, {{Red, Cyan, Purple, Blue}, Line /@
   {{{2, 2}, {2, 3}}, {{3, 2}, {3, 3}}, {{2, 2}, {3, 2}}, {{2, 3}, {3, 3}}}}]},
 PlotRange -> {{0, 4}, {0, 4}}, Frame -> True]

A more convenient way to avoid listing of line coordinates:

{lines, polygon} = MeshPrimitives[
     BoundaryDiscretizeRegion[Rectangle[{2, 2}, {3, 3}],
      MaxCellMeasure -> Infinity], #] & /@ {1, 2};
Graphics[{FaceForm[Opacity[.3, Yellow]], polygon,
  Thick, MapThread[List, {{Purple, Cyan, Blue, Red}, lines}]},
 PlotRange -> {{0, 4}, {0, 4}}, Frame -> True]

same picture

SeedRandom[1];
randompolygon = RandomPolygon[10];
Graphics[{FaceForm[Opacity[.25, Yellow]], randompolygon,
  Thick, {RandomColor[], Line @ #} & /@
   Partition[Append[#, First @ #] & @ randompolygon[[1]], 2, 1]}]

Related Q/A: Different Boundary Style on each edge of 3D Plot
