How to sort lines into continous paths efficiently

Question

As part of my work I get a bunch of lines from my co-worker. (Background: I do electromagnetic designs, my co-worker does the mechanical design). These lines are in random order, but I need them in continous paths, with all line segments running in the same direction.

I've created a small example, real work consists of several thousand lines.

Create some test data:

(* create some test data *)
spiral1 = N@Table[{p Cos[p], p Sin[p]}, {p, Pi, 4 Pi, Pi/16}];
spiral2 =
  N@Table[{p Cos[p + Pi], p Sin[p + Pi]}, {p, Pi, 5 Pi, Pi/16}];
lines = Join[Partition[spiral1, 2, 1], Partition[spiral2, 2, 1]];
(* scramble *)
randomLines =
  MapAt[Reverse, RandomSample@lines,
   List /@ RandomChoice[Range[Length[lines]],
     Floor[Length[lines]/2]]];

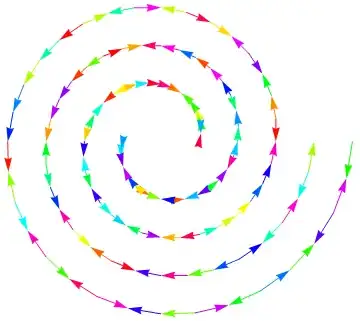

And see what we've got:

Graphics[Table[{Hue[i/Length[randomLines]],
   Arrow@randomLines[[i]]}, {i, Length[randomLines]}] ]

These lines are now sorted (code below):

sorted = mySort[randomLines];

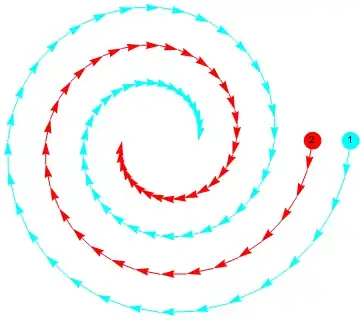

The random lines were sorted into seperate paths with a continous direction of the lines. (The total direction of each path is still random, but that's OK for me).

Looks as expected:

Graphics[Table[{PointSize[0.05], Hue[i/Length[sorted]],
   Point[sorted[[i, 1, 1]]], Arrow@sorted[[i]], GrayLevel[0],
   Text[i, sorted[[i, 1, 1]], {0, 0}]}, {i, Length[sorted]}] ]

My question now is, how can I make my prodedural code more Mathematica-like? And hopefully more efficient? For real work, my code is too slow.

Code:

mySort[in : {{{_?NumberQ ..}, {_?NumberQ ..}} ..}] := Module[
  {sorted, pool, this, found,
   tol = 10.0*^-9},
(* start *)
  sorted = {{First[in]}};
  pool = Rest[in];
While[Length[pool] > 0,
found = False;
   (* use the last of all sorted paths that were found so far,
      the other paths are already complete *)
For[i = 1, i <= Length[pool] && Not[found], i++,
    this = pool[[i]];
    (* check if this fits onto the sorted line path )
    found = Which[
      ( this fits on end )
      Norm[sorted[[-1, -1, -1]] - this[[1]]] < tol,
        sorted[[-1]] = Append[sorted[[-1]], this];
        True,
      ( reversed this fits on end )
      Norm[sorted[[-1, -1, -1]] - this[[-1]]] < tol,
        sorted[[-1]] = Append[sorted[[-1]], Reverse@this];
        True,
      ( this fits on beginning )
      Norm[sorted[[-1, 1, 1]] - this[[-1]]] < tol,
        sorted[[-1]] = Prepend[sorted[[-1]], this];
        True,
      ( reversed this fits on beginning )
      Norm[sorted[[-1, 1, 1]] - this[[1]]] < tol,
        sorted[[-1]] = Prepend[sorted[[-1]], Reverse@this];
        True,
      ( nothing found )
      True,
        False
      ]( end of which );
    ]( end of for *);
(* remove from unsorted list *)
   pool = DeleteCases[pool, this];
If[Not[found],
    (* need to start a new path )
    sorted = Append[sorted, {this}];
    ];
   ]( end of while *);
(* return result *)
  sorted
  ]

Edit:

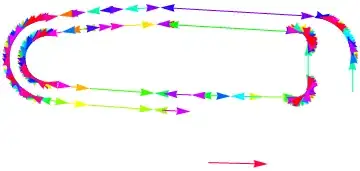

Real world data:

randomLines = {{{-0.1732811503690476`,
     0.3235849266204875`}, {-0.17359189280402723`,
     0.3225643511484479`}}, {{-0.003790604496207962`,
     0.330308955004866`}, {-0.004423377968477279`,
     0.331138019882757`}}, {{-0.1609083437046747`,
     0.32692061568805486`}, {-0.16038815001632004`,
     0.3272754550920334`}}, {{-0.15872690806364326`,
     0.3281712493076333`}, {-0.1592959532338122`,
     0.3279016198019645`}}, {{-0.0274412108919291`,
     0.29769071153521204`}, {-0.02718659256118707`,
     0.29769509804809235`}}, {{-0.005814165101646035`,
     0.33269164676889584`}, {-0.0050985101499539795`,
     0.3319329710614432`}}, {{-0.13803406459546397`,
     0.3404086542534827`}, {-0.145936615236459`,
     0.339332441377564`}}, {{-0.022642808371541714`,
     0.32717602179538546`}, {-0.022729514890690448`,
     0.32742192097588857`}}, {{-0.16278418842931225`,
     0.3252461150235488`}, {-0.16319556509908598`,
     0.3247693743061922`}}, {{-0.17411145452597812`,
     0.31410618140280167`}, {-0.17392795919535808`,
     0.3130552462865045`}}, {{-0.132713447337878`,
     0.30208331443021597`}, {-0.100026515355456`,
     0.299751289764415`}}, {{-0.16899889159931059`,
     0.33089743916120096`}, {-0.16826085579381164`,
     0.33166778863048574`}}, {{-0.1643853934095711`,
     0.3111863043989262`}, {-0.16406316733242707`,
     0.31064530270648133`}}, {{-0.0006761538014226468`,
     0.32374979504491025`}, {-0.0009712334861680851`,
     0.32475013439663575`}}, {{-0.025224324645915733`,
     0.2981887157630561`}, {-0.02499793734353272`,
     0.29830532847747804`}}, {{-0.002163040134773521`,
     0.32764005039517213`}, {-0.002658896809373818`,
     0.3285575889487024`}}, {{-0.02242717528344411`,
     0.3261574150385962`}, {-0.022461075109788706`,
     0.3264159401422299`}}, {{-0.1635815832005517`,
     0.32427187807368313`}, {-0.16394119730653092`,
     0.3237549736620164`}}, {{-0.1633365381686077`,
     0.30961720440672075`}, {-0.16371323301748703`,
     0.3101217967836426`}}, {{-0.023674627537488186`,
     0.3289717309615873`}, {-0.0238535412754112`,
     0.32916139988845045`}}, {{-0.1654951793842912`,
     0.3203275606355335`}, {-0.16564700675086885`,
     0.31971644613989636`}}, {{-0.155936889548458`,
     0.305189994603436`}, {-0.151503418460591`,
     0.304406838304457`}}, {{-0.0727958373952835`,
     0.26461098116609705`}, {-0.0428039479687876`,
     0.263913436451513`}}, {{-0.022458263874178742`,
     0.3019294608469123`}, {-0.022503423487267513`,
     0.30167884092513675`}}, {{-0.026932527807086413`,
     0.2977124426890192`}, {-0.02667967567091477`,
     0.2977427004661773`}}, {{-0.09969648248885901`,
     0.34301571998361696`}, {-0.11556475510930601`,
     0.342302617147025`}}, {{-0.024358427676212165`,
     0.2987220611582121`}, {-0.02456442659753365`,
     0.2985723474973141`}}, {{-0.16748374342973676`,
     0.33239870006741085`}, {-0.16826085579381164`,
     0.33166778863048574`}}, {{-0.00010870113377766444`,
     0.32067570736947887`}, {-0.0002443004391560457`,
     0.3217098077840136`}}, {{-0.16493948767647237`,
     0.3343355772937574`}, {-0.16402808627327933`,
     0.3348900884634228`}}, {{-0.15844348057804805`,
     0.29713091408852776`}, {-0.15947637636786122`,
     0.29739786247756983`}}, {{-0.152964624886857`,
     0.29613490529095693`}, {-0.143169407399232`,
     0.29466514291458284`}}, {{-0.16517748475198532`,
     0.31289941951686434`}, {-0.16494330760031867`,
     0.31231489104223104`}}, {{-0.16371323301748703`,
     0.3101217967836426`}, {-0.16406316733242707`,
     0.31064530270648133`}}, {{-0.023305316984615142`,
     0.29982112172172065`}, {-0.02345672343999681`,
     0.29961636376433226`}}, {{-0.0009712334861680851`,
     0.32475013439663575`}, {-0.0013180595627630184`,
     0.32573373111864834`}}, {{-0.16590929240988667`,
     0.3178473879987169`}, {-0.16593153282153464`,
     0.3172180885150769`}}, {{-0.026848640006224257`,
     0.33060633189857275`}, {-0.026590329679737904`,
     0.3305708325652618`}}, {{-0.026334221152176908`,
     0.3305219158038651`}, {-0.026081010879205578`,
     0.33045971463750307`}}, {{-0.17034984968281547`,
     0.3292468724279576`}, {-0.1696958520728942`,
     0.3300897379458447`}}, {{-0.0002443004391560457`,
     0.3217098077840136`}, {-0.00043362294146330525`,
     0.3227354333633945`}}, {{-0.17171167689644382`,
     0.3070770988467576`}, {-0.17116575668310063`,
     0.30616052573145847`}}, {{-0.027441210891929108`,
     0.29769071153521137`}, {-0.02809403765865751`,
     0.29769725829732896`}}, {{-0.147200993609053`,
     0.330628833209078`}, {-0.15633408725220094`,
     0.3289440070126807`}}, {{-0.14462682853728007`,
     0.3310351852767413`}, {-0.13707737058449998`,
     0.33206331204543804`}}, {{-0.15949588000939435`,
     0.30641294482771697`}, {-0.15893195007983538`,
     0.30613277432504504`}}, {{-0.02710844968845011`,
     0.33062831726772385`}, {-0.026848640006224257`,
     0.33060633189857275`}}, {{-0.16666965910887294`,
     0.3330881939930908`}, {-0.16748374342973676`,
     0.33239870006741085`}}, {{-0.02545635562717863`,
     0.29808378073754377`}, {-0.025224324645915733`,
     0.2981887157630561`}}, {{-0.024882153503301283`,
     0.3299565988498384`}, {-0.02511076646419278`,
     0.3300819804336035`}}, {{-0.16696481100080182`,
     0.3013644638663228`}, {-0.16776592565280904`,
     0.30206898531338117`}}, {{-0.1692528790331332`,
     0.3035981772336514`}, {-0.16993469074439835`,
     0.30441870629797974`}}, {{-0.128043266825506`,
     0.341430487537209`}, {-0.12177581745677402`,
     0.341920407137907`}}, {{-0.01472404351682356`,
     0.33788490576510627`}, {-0.015736884608708875`,
     0.3381337104305543`}}, {{-0.026334221152176908`,
     0.3305219158038651`}, {-0.026590329679737904`,
     0.3305708325652618`}}, {{-0.16013211147715362`,
     0.3366134464966566`}, {-0.1611384428627671`,
     0.33625928227294805`}}, {{-0.1630890716399921`,
     0.33539643486016946`}, {-0.16212498684755708`,
     0.335853245179691`}}, {{-0.023347651124051683`,
     0.32856572694744296`}, {-0.02350584449211901`,
     0.3287729931669158`}}, {{-0.02291625928387132`,
     0.3004778353939403`}, {-0.022809415381982865`,
     0.30070899360053127`}}, {{-0.17424002851016965`,
     0.3151652394208606`}, {-0.17411145452597812`,
     0.31410618140280167`}}, {{-0.015736884608708875`,
     0.3381337104305543`}, {-0.01676131871895284`,
     0.3383293774761414`}}, {{-0.16899889159931059`,
     0.33089743916120096`}, {-0.1696958520728942`,
     0.3300897379458447`}}, {{-0.1738491209870721`,
     0.3215289918789799`}, {-0.17405213828418334`,
     0.3204816528068072`}}, {{-0.16494330760031867`,
     0.31231489104223104`}, {-0.16467903858544197`,
     0.31174333670203586`}}, {{-0.16569354052258883`,
     0.3147148694731183`}, {-0.1655531098533738`,
     0.31410103586116495`}}, {{-0.16509726199592512`,
     0.32152198007933014`}, {-0.16485224962736336`,
     0.3221020502606631`}}, {{-0.1624723720816022`,
     0.2985153330191076`}, {-0.16149355361319787`,
     0.2980910105462918`}}, {{-0.16612812978222688`,
     0.3007025728681141`}, {-0.1652581479252421`,
     0.30008510487417167`}}, {{-0.01676131871895284`,
     0.3383293774761414`}, {-0.017794560024898265`,
     0.3384713748093851`}}, {{-0.02316453209371017`,
     0.30003332292421014`}, {-0.02303473396180133`,
     0.30025241692412363`}}, {{-0.0050985101499539795`,
     0.3319329710614432`}, {-0.004423377968477279`,
     0.331138019882757`}}, {{-0.022940760033693074`,
     0.32789850079501953`}, {-0.022828922220079186`,
     0.3276629658063637`}}, {{-0.0783810716952149`,
     0.298695519500128`}, {-0.0639031537148027`,
     0.298252896713245`}}, {{-0.02718659256118707`,
     0.29769509804809235`}, {-0.026932527807086413`,
     0.2977124426890192`}}, {{-0.17171167689644382`,
     0.3070770988467576`}, {-0.17220917492167956`,
     0.3080208312611169`}}, {{-0.17095911325079685`,
     0.3283711252842246`}, {-0.17034984968281547`,
     0.3292468724279576`}}, {{-0.16485224962736336`,
     0.3221020502606631`}, {-0.16457739200185012`,
     0.3226685886633482`}}, {{-0.017794560024898265`,
     0.3384713748093851`}, {-0.018833798753801673`,
     0.3385593162859895`}}, {{-0.17057289276109477`,
     0.30527359420929356`}, {-0.16993469074439835`,
     0.30441870629797974`}}, {{-0.0961177437851361`,
     0.291104503068724`}, {-0.0818949634250089`,
     0.290426822082235`}}, {{-0.0957179577176685`,
     0.299494984050185`}, {-0.0814951773575412`,
     0.29881730306369597`}}, {{-0.16593153282153464`,
     0.3172180885150769`}, {-0.16592100502526022`,
     0.31658848416191104`}}, {{-0.02303473396180133`,
     0.30025241692412363`}, {-0.02291625928387132`,
     0.3004778353939403`}}, {{-0.16576683647257845`,
     0.3190982606387603`}, {-0.16585434402254567`,
     0.318474678322848`}}, {{-0.115187648877698`,
     0.333911086244378`}, {-0.099319376257251`,
     0.334624189080969`}}, {{-0.02250840573536552`,
     0.3266723465370751`}, {-0.022461075109788706`,
     0.3264159401422299`}}, {{-0.09711594348365293`,
     0.3430650032516095`}, {-0.09969648248885887`,
     0.34301571998361635`}}, {{-0.024660387516507672`,
     0.3298194701710857`}, {-0.024446071569157422`,
     0.32967096730193374`}}, {{-0.15947637636786122`,
     0.29739786247756983`}, {-0.16049398602111695`,
     0.2977181837984753`}}, {{-0.022729514890690448`,
     0.32742192097588857`}, {-0.022828922220079186`,
     0.3276629658063637`}}, {{-0.16319556509908598`,
     0.3247693743061922`}, {-0.1635815832005517`,
     0.32427187807368313`}}, {{-0.17095911325079685`,
     0.3283711252842246`}, {-0.1715219927487946`,
     0.32746486824245347`}}, {{-0.17424002851016965`,
     0.3151652394208606`}, {-0.1743133329395534`,
     0.3162295521642113`}}, {{-0.17420039487710307`,
     0.3194251703707574`}, {-0.17429348925235025`,
     0.31836240577202296`}}, {{-0.1565539214362742`,
     0.3053156294928492`}, {-0.1571635818780663`,
     0.3054731941517472`}}, {{-0.16612812978222688`,
     0.3007025728681141`}, {-0.16696481100080182`,
     0.3013644638663228`}}, {{-0.16467903858544197`,
     0.31174333670203586`}, {-0.1643853934095711`,
     0.3111863043989262`}}, {{-0.13480393096839502`,
     0.34077895057190805`}, {-0.12804326682550607`,
     0.34143048753720934`}}, {{-0.164273433498032`,
     0.3232200609690685`}, {-0.16457739200185012`,
     0.3226685886633482`}}, {{-0.022809415381982865`,
     0.30070899360053127`}, {-0.022714479408088534`,
     0.30094529192195113`}}, {{-0.16057623728510573`,
     0.30705932259071705`}, {-0.16004447098197933`,
     0.30672207331365464`}}, {{-0.09717236780491953`,
     0.33466519275993967`}, {-0.09931937625725092`,
     0.3346241890809694`}}, {{-0.0223999999999996`,
     0.325636824663719`}, {-0.0223999999999996`,
     0.302690541698566`}}, {{-0.00992861401320636`,
     0.33587244261444776`}, {-0.009041550066031922`,
     0.335323927899437`}}, {{-0.15949588000939435`,
     0.30641294482771697`}, {-0.16004447098197933`,
     0.30672207331365464`}}, {{-0.16590929240988667`,
     0.3178473879987169`}, {-0.16585434402254567`,
     0.318474678322848`}}, {{-0.006568396687868179`,
     0.3334119838797717`}, {-0.007359153868518696`,
     0.334092023525829`}}, {{-0.00002719377097363207`,
     0.3196359442287738`}, {-0.00010870113377766444`,
     0.32067570736947887`}}, {{-0.02583138743504106`,
     0.3303843982146031`}, {-0.026081010879205578`,
     0.33045971463750307`}}, {{3.5213168757718605`*^-16,
     0.30059334586997`}, {3.73217884139672`*^-16,
     0.31859334586997`}}, {{-0.133311219642531`,
     0.293704611173041`}, {-0.100624287660109`,
     0.29137258650724`}}, {{-0.023789803523763194`,
     0.2992312814592999`}, {-0.02397061314593002`,
     0.2990519560110863`}}, {{-0.09571795771766846`,
     0.29949498405018493`}, {-0.10002651535545698`,
     0.299751289764415`}}, {{-0.1633365381686077`,
     0.30961720440672075`}, {-0.16293410296342192`,
     0.30913289212972694`}}, {{-0.0238535412754112`,
     0.32916139988845045`}, {-0.024042099171966737`,
     0.3293414841661694`}}, {{-0.02583138743504106`,
     0.3303843982146031`}, {-0.02558602963996038`,
     0.33029617134892064`}}, {{-0.02558602963996038`,
     0.33029617134892064`}, {-0.025345604714332153`,
     0.33019527396257353`}}, {{-0.0449731659616852`,
     0.29789667279542403`}, {-0.0280940376586573`,
     0.29769725829732896`}}, {{-0.1725026316455957`,
     0.32557071786870867`}, {-0.17203696376766003`,
     0.32653055565838185`}}, {{-0.17405213828418334`,
     0.3204816528068072`}, {-0.17420039487710307`,
     0.3194251703707574`}}, {{-0.17305364983193894`,
     0.3099794839639255`}, {-0.17265690341795825`,
     0.3089891671267368`}}, {{-0.15872690806364326`,
     0.3281712493076333`}, {-0.1581446064921331`,
     0.3284109102260923`}}, {{-0.16564700675086885`,
     0.31971644613989636`}, {-0.16576683647257845`,
     0.3190982606387603`}}, {{-0.024777780966299914`,
     0.29843331638866044`}, {-0.02456442659753365`,
     0.2985723474973141`}}, {{-0.16852930413265976`,
     0.3028142292006602`}, {-0.16776592565280904`,
     0.30206898531338117`}}, {{-0.09453629942331661`,
     0.342981057317432`}, {-0.0188337987538017`,
     0.338559316285989`}}, {{-0.02618022798853192`,
     0.29784160818282895`}, {-0.025934928004331545`,
     0.2979100015567508`}}, {{-0.02416031856136073`,
     0.2988820690157`}, {-0.024358427676212165`,
     0.2987220611582121`}}, {{-0.02397061314593002`,
     0.2990519560110863`}, {-0.02416031856136073`,
     0.2988820690157`}}, {{-0.1592959532338122`,
     0.3279016198019645`}, {-0.15985020089541102`,
     0.3276027519287627`}}, {{-0.143169407399232`,
     0.29466514291458284`}, {-0.133311219642531`,
     0.293704611173041`}}, {{-0.16580184752261332`,
     0.31533517751737167`}, {-0.16569354052258883`,
     0.3147148694731183`}}, {{-0.006568396687868179`,
     0.3334119838797717`}, {-0.005814165101646035`,
     0.33269164676889584`}}, {{-0.02499793734353272`,
     0.29830532847747804`}, {-0.024777780966299914`,
     0.29843331638866044`}}, {{-0.16342779055730133`,
     0.29899000205256`}, {-0.16435722154391225`,
     0.2995137321320412`}}, {{-0.023200477620708284`,
     0.32835049593817933`}, {-0.023347651124051683`,
     0.32856572694744296`}}, {{-0.023064724202343147`,
     0.3281278854334021`}, {-0.023200477620708284`,
     0.32835049593817933`}}, {{-0.16057623728510573`,
     0.30705932259071705`}, {-0.16108973877142355`,
     0.30742377930909276`}}, {{-0.024660387516507672`,
     0.3298194701710857`}, {-0.024882153503301283`,
     0.3299565988498384`}}, {{-0.012744118559842758`,
     0.3372307326107764`}, {-0.011782418857329856`,
     0.3368271430653881`}}, {{-0.0017156888803179662`,
     0.326697910440549`}, {-0.002163040134773521`,
     0.32764005039517213`}}, {{-0.0223999999999996`,
     0.325636824663719`}, {-0.022406798442743105`,
     0.32589747425341997`}}, {{-0.16538093583401997`,
     0.31349533908630195`}, {-0.16517748475198532`,
     0.31289941951686434`}}, {{-0.16342779055730133`,
     0.29899000205256`}, {-0.1624723720816022`,
     0.2985153330191076`}}, {{-0.159108718071151`,
     0.3369147786913791`}, {-0.15807103423313`,
     0.33716246277915196`}}, {{-0.02545635562717863`,
     0.29808378073754377`}, {-0.025693428401407696`,
     0.2979907956012883`}}, {{-0.16234856729533484`,
     0.3257008091005413`}, {-0.16278418842931225`,
     0.3252461150235488`}}, {{-0.003790604496207962`,
     0.330308955004866`}, {-0.0032019104828343607`,
     0.32944803096781144`}}, {{-0.0017156888803179662`,
     0.326697910440549`}, {-0.0013180595627630184`,
     0.32573373111864834`}}, {{-0.09611774378513621`,
     0.291104503068723`}, {-0.10062428766010907`,
     0.2913725865072393`}}, {{-0.1733983396816671`,
     0.310989099763386`}, {-0.17369003946652273`,
     0.3120152802497241`}}, {{-0.17265690341795825`,
     0.3089891671267368`}, {-0.17220917492167956`,
     0.3080208312611169`}}, {{-0.1655531098533738`,
     0.31410103586116495`}, {-0.16538093583401997`,
     0.31349533908630195`}}, {{-0.1609083437046747`,
     0.32692061568805486`}, {-0.16140937315446863`,
     0.32653919470481063`}}, {{-0.16250701729045952`,
     0.30867017158342486`}, {-0.16293410296342192`,
     0.30913289212972694`}}, {{-0.1569465738102524`,
     0.3287978129901419`}, {-0.156334087252201`,
     0.32894400701268106`}}, {{-0.02361835871310968`,
     0.2994195801920229`}, {-0.02345672343999681`,
     0.29961636376433226`}}, {{-0.1725026316455957`,
     0.32557071786870867`}, {-0.17291773524522516`,
     0.3245879543383512`}}, {{-0.1611384428627671`,
     0.33625928227294805`}, {-0.16212498684755708`,
     0.335853245179691`}}, {{-0.16049398602111695`,
     0.2977181837984753`}, {-0.16149355361319787`,
     0.2980910105462918`}}, {{-0.022503423487267513`,
     0.30167884092513675`}, {-0.022561284768092122`,
     0.3014308453444776`}}, {{-0.011782418857329856`,
     0.3368271430653881`}, {-0.010843065856772359`,
     0.336373968949508`}}, {{-0.007359153868518696`,
     0.334092023525829`}, {-0.008184286276630927`,
     0.334729916422829`}}, {{-0.17291773524522516`,
     0.3245879543383512`}, {-0.1732811503690476`,
     0.3235849266204875`}}, {{-0.17369003946652273`,
     0.3120152802497241`}, {-0.17392795919535808`,
     0.3130552462865045`}}, {{-0.17116575668310063`,
     0.30616052573145847`}, {-0.17057289276109477`,
     0.30527359420929356`}}, {{-0.08149517735754128`,
     0.298817303063696`}, {-0.07838107169521498`,
     0.2986955195001285`}}, {{-0.151503418460592`,
     0.304406838304457`}, {-0.14213853479564478`,
     0.30300164707850935`}}, {{-0.16402808627327933`,
     0.3348900884634228`}, {-0.1630890716399921`,
     0.33539643486016946`}}, {{-0.013725549740165472`,
     0.33758364007350633`}, {-0.012744118559842758`,
     0.3372307326107764`}}, {{-0.022458263874178742`,
     0.3019294608469123`}, {-0.022425923072385`,
     0.3021820550043753`}}, {{-0.14851078030823212`,
     0.33892608930990176`}, {-0.15807103423313001`,
     0.337162462779152`}}, {{-0.17433116928861334`,
     0.31729623722536016`}, {-0.1743133329395534`,
     0.3162295521642113`}}, {{-0.0950261039467197`,
     0.334595349742704`}, {-0.09717236780491953`,
     0.33466519275993967`}}, {{-0.1715219927487946`,
     0.32746486824245347`}, {-0.17203696376766003`,
     0.32653055565838185`}}, {{-0.024042099171966737`,
     0.3293414841661694`}, {-0.024239788467129365`,
     0.3295114940776837`}}, {{-0.115187648877698`,
     0.333911086244378`}, {-0.12112119567347102`,
     0.3335459537037523`}}, {{-0.02263169762510149`,
     0.3011861174028509`}, {-0.022714479408088534`,
     0.30094529192195113`}}, {{-0.12738864504220201`,
     0.333056034103054`}, {-0.13384723695743`,
     0.33243360836386193`}}, {{-0.026428692048441692`,
     0.2977857928912122`}, {-0.02618022798853192`,
     0.29784160818282895`}}, {{-0.1569465738102524`,
     0.3287978129901419`}, {-0.15755062552794172`,
     0.3286199534995984`}}, {{-0.16531176555681543`,
     0.32092994908488376`}, {-0.16509726199592512`,
     0.32152198007933014`}}, {{-0.159108718071151`,
     0.3369147786913791`}, {-0.16013211147715362`,
     0.3366134464966566`}}, {{-0.023789803523763194`,
     0.2992312814592999`}, {-0.02361835871310968`,
     0.2994195801920229`}}, {{-0.02316453209371017`,
     0.30003332292421014`}, {-0.023305316984615142`,
     0.29982112172172065`}}, {{-0.16234856729533484`,
     0.3257008091005413`}, {-0.1618898814609297`,
     0.32613222511940926`}}, {{-0.022406798442743105`,
     0.32589747425341997`}, {-0.02242717528344411`,
     0.3261574150385962`}}, {{-0.02667967567091477`,
     0.2977427004661773`}, {-0.026428692048441692`,
     0.2977857928912122`}}, {{-0.16140937315446863`,
     0.32653919470481063`}, {-0.1618898814609297`,
     0.32613222511940926`}}, {{-0.1692528790331332`,
     0.3035981772336514`}, {-0.16852930413265976`,
     0.3028142292006602`}}, {{-0.02263169762510149`,
     0.3011861174028509`}, {-0.022561284768092122`,
     0.3014308453444776`}}, {{-0.12177581745677403`,
     0.341920407137907`}, {-0.115564755109306`,
     0.3423026171470251`}}, {{-0.16531176555681543`,
     0.32092994908488376`}, {-0.1654951793842912`,
     0.3203275606355335`}}, {{-0.008184286276630927`,
     0.334729916422829`}, {-0.009041550066031922`,
     0.335323927899437`}}, {{-0.13480393096839502`,
     0.34077895057190805`}, {-0.138034064595464`,
     0.340408654253483`}}, {{-0.02350584449211901`,
     0.3287729931669158`}, {-0.023674627537488186`,
     0.3289717309615873`}}, {{-0.013725549740165472`,
     0.33758364007350633`}, {-0.01472404351682356`,
     0.33788490576510627`}}, {{-0.0639031537148028`,
     0.29825289671324495`}, {-0.061660627893130995`,
     0.29819810751174`}}, {{-0.04497316596168523`,
     0.29789667279542326`}, {-0.046157143827387906`,
     0.297914496015335`}}, {{-0.022406484973584426`,
     0.3024359681709503`}, {-0.022399999999999913`,
     0.302690541698566`}}, {{-0.158354208447265`,
     0.30588232057279774`}, {-0.15776421977096358`,
     0.30566226185823286`}}, {{-0.13384723695743`,
     0.332433608363862`}, {-0.13707737058449998`,
     0.33206331204543804`}}, {{-0.15739809597472298`,
     0.296918061589936`}, {-0.152964624886857`,
     0.29613490529095704`}}, {{-0.1658208075617013`,
     0.33373440309693436`}, {-0.16666965910887294`,
     0.3330881939930908`}}, {{-0.022940760033693074`,
     0.32789850079501953`}, {-0.023064724202343147`,
     0.3281278854334021`}}, {{-0.1738491209870721`,
     0.3215289918789799`}, {-0.17359189280402723`,
     0.3225643511484479`}}, {{-0.0950261039467197`,
     0.334595349742704`}, {-0.027108449688450102`,
     0.330628317267724`}}, {{-0.0616606278931308`,
     0.29819810751174`}, {-0.0461571438273879`,
     0.297914496015335`}}, {{-0.14462682853728`,
     0.33103518527674103`}, {-0.147200993609053`,
     0.330628833209078`}}, {{-0.1615835847589727`,
     0.30781445643486477`}, {-0.16205643779747447`,
     0.3082302959231285`}}, {{-0.17429348925235025`,
     0.31836240577202296`}, {-0.17433116928861334`,
     0.31729623722536016`}}, {{-0.16592100502526022`,
     0.31658848416191104`}, {-0.1658777375327947`,
     0.3159602800548601`}}, {{-0.1658208075617013`,
     0.33373440309693436`}, {-0.16493948767647237`,
     0.3343355772937574`}}, {{-0.00002719377097363207`,
     0.3196359442287738`}, {3.6948222259525213`*^-16,
     0.31859334586997`}}, {{-0.16205643779747447`,
     0.3082302959231285`}, {-0.16250701729045952`,
     0.30867017158342486`}}, {{-0.16435722154391225`,
     0.2995137321320412`}, {-0.1652581479252421`,
     0.30008510487417167`}}, {{-0.024446071569157422`,
     0.32967096730193374`}, {-0.024239788467129365`,
     0.3295114940776837`}}, {{-0.16580184752261332`,
     0.31533517751737167`}, {-0.1658777375327947`,
     0.3159602800548601`}}, {{-0.0032019104828343607`,
     0.32944803096781144`}, {-0.002658896809373818`,
     0.3285575889487024`}}, {{-0.121121195673471`,
     0.333545953703752`}, {-0.12738864504220201`,
     0.333056034103054`}}, {{-0.15893195007983538`,
     0.30613277432504504`}, {-0.158354208447265`,
     0.30588232057279774`}}, {{-0.16394119730653092`,
     0.3237549736620164`}, {-0.164273433498032`,
     0.3232200609690685`}}, {{-0.16038815001632004`,
     0.3272754550920334`}, {-0.15985020089541102`,
     0.3276027519287627`}}, {{-0.15739809597472298`,
     0.296918061589936`}, {-0.15844348057804805`,
     0.29713091408852776`}}, {{-0.022569038450355353`,
     0.32692593695745403`}, {-0.02250840573536552`,
     0.3266723465370751`}}, {{-0.14213853479564478`,
     0.30300164707850935`}, {-0.13271344733787804`,
     0.3020833144302151`}}, {{-0.1559368895484579`,
     0.30518999460343643`}, {-0.1565539214362742`,
     0.3053156294928492`}}, {{-0.025934928004331545`,
     0.2979100015567508`}, {-0.025693428401407696`,
     0.2979907956012883`}}, {{-0.022642808371541714`,
     0.32717602179538546`}, {-0.022569038450355353`,
     0.32692593695745403`}}, {{-0.15776421977096358`,
     0.30566226185823286`}, {-0.1571635818780663`,
     0.3054731941517472`}}, {{-0.09453629942331661`,
     0.342981057317432`}, {-0.09711594348365293`,
     0.3430650032516095`}}, {{-0.15755062552794172`,
     0.3286199534995984`}, {-0.1581446064921331`,
     0.3284109102260923`}}, {{-0.145936615236459`,
     0.339332441377564`}, {-0.148510780308232`,
     0.338926089309901`}}, {{-0.17305364983193894`,
     0.3099794839639255`}, {-0.1733983396816671`,
     0.310989099763386`}}, {{-0.022425923072385`,
     0.3021820550043753`}, {-0.022406484973584426`,
     0.3024359681709503`}}, {{-0.02511076646419278`,
     0.3300819804336035`}, {-0.025345604714332153`,
     0.33019527396257353`}}, {{-0.00992861401320636`,
     0.33587244261444776`}, {-0.010843065856772359`,
     0.336373968949508`}}, {{-0.00043362294146330525`,
     0.3227354333633945`}, {-0.0006761538014226468`,
     0.32374979504491025`}}, {{-0.1615835847589727`,
     0.30781445643486477`}, {-0.16108973877142355`,
     0.30742377930909276`}}};

Looks random:

Graphics[Table[{Hue[i/Length[randomLines]],
   Arrow@randomLines[[i]]}, {i, Length[randomLines]}] ]

Sort into paths:

sorted = mySort[randomLines];

This is what I expect:

Graphics[{
  Arrowheads[.02],
  Table[{PointSize[0.015], Hue[i/Length[sorted]],
    Point[sorted[[i, 1, 1]]], Arrow@sorted[[i]], GrayLevel[0],
    Text[i, sorted[[i, 1, 1]], {0, 0}]}, {i, Length[sorted]}]
  }]

Answer 1

I think this should do the trick and also should have decent performance:

TOL = 0.5 Sqrt[Min[Total[(randomLines[[All, 1]] - randomLines[[All, 2]])^2, {2}]]];
(*pts=DeleteDuplicates[Flatten[randomLines,1],Norm[#1-#2] <TOL&];*)
pts = Flatten[randomLines, 1];
clusters = DeleteDuplicates[Sort /@ Nearest[pts -> "Index", pts, {[Infinity], TOL}]];
pts = pts[[clusters[[All, 1]]]];
edges = Partition[Flatten[Nearest[pts -> "Index", Flatten[randomLines, 1], {[Infinity], TOL}]], 2];
A = KirchhoffMatrix[edges];
chains = Table[
  Module[{L, cycles, perm},
   L = A[[c, c]];
   cycles = SparseArrayHamiltonianCycle[L]; If[Length[cycles] == 0, perm = SparseArrayMinimumBandwidthOrdering[L][[2, 1]];
    ,
    perm = cycles[[1]];
    ];
   pts[[c[[perm]]]]
   ],
  {c, SparseArray`StronglyConnectedComponents[A]}];
Graphics[Table[{RandomColor[], Arrow[c]}, {c, chains}]]

For the synthetic example, we obtain the following:

For the real world example, we get:

This is how this works:

• First we determine the smallest edge length in order to determine a reasonable tolerance parameter TOL. We assume from here on that the distance between points that are to be identified with each other aare considerably smaller than this minimal edge length.

• We use DeleteDuplicates Nearest to perform the actual identification with respect to this tolerance parameter.

• We determine the edges edges of the underlying graph (again using the tolerance TOL).

• We build the graph Laplacian A of the underlying graph (omitting the creation of Graph data structure for performance reasons - as usual).

• Then we go through the connected compontents and consider each component's graph Laplacian L separately. If we find a Hamiltonian cycle, we use it as reordering of that component. Otherwise, the connected component c is a linear chain. In that case, we use the minimum bandwidth reordering. This works because a linear chain must have a reordering of vertices that brings the Laplacian into tridiagonal form. And the graph Laplacian can be tridiagonal only if the indices of neighboring vertices differ by $\pm 1$. So any one of the two possible minimal bandwidth reorderings for c will do.
