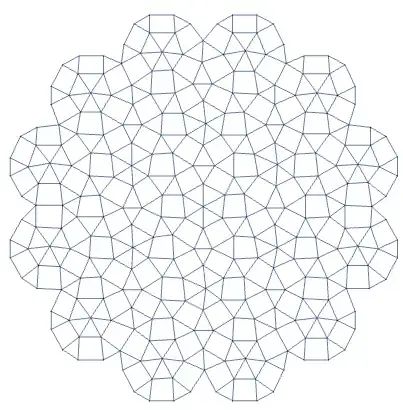

I have the following image

enter image description here

Is it possible to extract the lines from this image and then convert those lines to a graph representation? I tried using ImagesLines[] with Binarize[] but got very bad results.

AccidentalTaylorExpansion
  • 1,267
  • 6
  • 10

2 Answers2

21
g = IndexGraph[
  MorphologicalGraph[
   Thinning[ColorNegate[Binarize[pic]], Method -> "MedialAxis"]]]

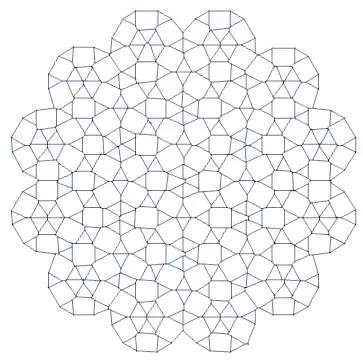

enter image description here

Then you can merge vertices that are close each other:

pts = GraphEmbedding[g];

Median[EuclideanDistance[pts[[#[[1]]]], pts[[#[[2]]]]] & /@
  EdgeList[g]]

13.0384

f = Nearest[Thread[pts -> Range[Length[pts]]]]

merge = Select[f[#, {All, 10}] & /@ pts, Length[#] > 1 &];

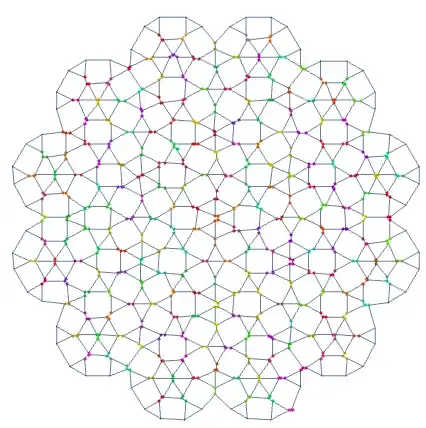

You can check the grouping of vertices:

HighlightGraph[g, merge, VertexSize -> 1]

enter image description here

and final graph:

final = Fold[VertexContract, g, merge]

enter image description here

halmir
  • 15,082
  • 37
  • 53
12

First, use the method of deleting the branch points developed in this answer:

img = Import["https://i.stack.imgur.com/aLhGVm.png"];

imb = Thinning[ColorNegate@Binarize@img];


edges = DeleteSmallComponents@MorphologicalTransform[imb,
   If[#[[2, 2]] == 1 && Total[#, 2] == 3, 1, 0] &];


edgesLabeled = MorphologicalComponents[edges];

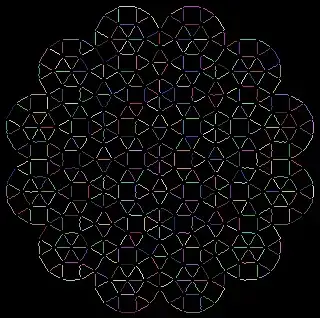

edgesLabeled // Colorize


Second, extract the branch points (nodes) and separate them from the edges by making their labels sufficiently large, as I did here:

nodes = imb - edges;
threshold = 10^Ceiling[Log10[Max[edgesLabeled] + 1]];
nodesLabeled = MorphologicalComponents[nodes] * threshold;

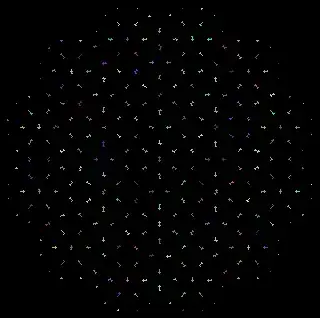

nodesLabeled // Colorize


edgesPlusNodesLabeled = edgesLabeled + nodesLabeled;

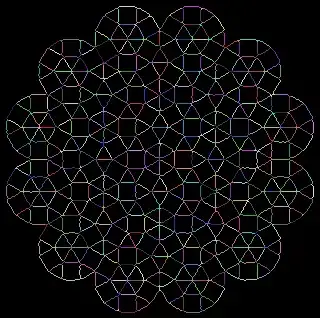

edgesPlusNodesLabeled // Colorize


Now it is easy to reconstruct the graph:

neighbors =
  ComponentMeasurements[edgesPlusNodesLabeled,
   "Neighbors", #Label < threshold &];
coords = ComponentMeasurements[edgesPlusNodesLabeled,
   "BoundingDiskCenter", #Label >= threshold &];

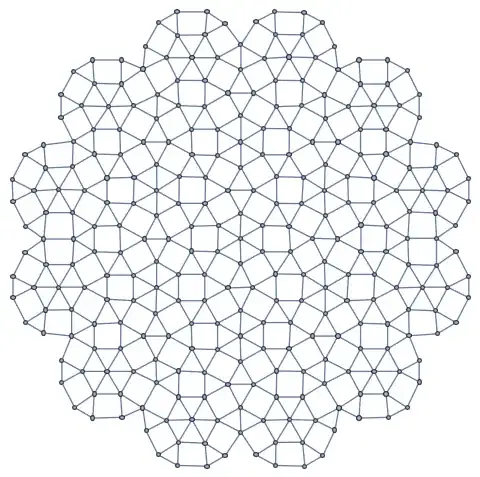

Graph[UndirectedEdge @@@ neighbors[[All, 2]],
 VertexCoordinates -> coords, VertexSize -> .2]

graph

Overlay on the original image:

HighlightImage[img, {Thick, Line /@ neighbors[[All, 2]] /. coords,
  Green, Translate[Disk[{0, 0}, Offset[2]], coords[[All, 2]]]}]


Alexey Popkov
  • 61,809
  • 7
  • 149
  • 368
  • 2
    Your answer and halmir's are both excellent! If I could accept two I would have but I chose the halmir's because it's simpler. – AccidentalTaylorExpansion Dec 31 '21 at 11:43
  • This is a particularly interesting question, and I asked a similar question for non-planar graphs. See https://mathematica.stackexchange.com/questions/261413/is-it-possible-to-extract-vertices-and-lines-from-this-image-of-nonplanar-graph – licheng Dec 31 '21 at 13:46
