The problem I am trying to solve is the following :

$$(\frac{1}{c^2}\frac{\partial^2}{\partial t^2}-\frac{\partial^2}{\partial x^2}+1)\psi(x,t)=0$$

$$\psi (0,t)=\psi(L(t),t)=0$$

$$\psi(x,0)=\sqrt{\frac{1}{c\sqrt{1+\pi^2/4}}} sin(\pi \frac{x}{2})$$

$$\frac{d\psi (x,t)}{dt}\Bigr|_{t=0}=0$$

$$L(t)=2+sin(\omega t)$$

I have used the pdetoode method as was used here to solve this problem and here is my code (some codes might be redundant as I copied and modified the code from the link above) :

ydum = x/L[t];
eqn1 = 1/c^2 D[\[Psi][ydum, t], {t, 2}] -
      D[\[Psi][ydum, t], {x, 2}] + (m^2 c^2)/h^2 \[Psi][ydum, t] ==
     0 /. \[Psi][ydum, t] -> \[Psi][y, t] /. x -> y L[t] // Expand

m = 1; c = 1; h = 1; [Omega] = 1; L[t_] := 2 + Sin[[Omega] t]; bc = {[Psi][0, t] == 0, [Psi][1, t] == 0}; ic = {[Psi][y, 0] == Sqrt[2 (m c)/(c Sqrt[m^2 c^2 + [Pi]^2 h^2/L[0]^2] L[0])] Sin[ [Pi] y], D[[Psi][y, t], t] == 0 /. t -> 0}; points = 25; xdifforder = 4; {yL, yR} = domain = {0, 1}; grid = Array[# &, points, domain]; pto = pdetoode[[Psi][y, t], t, grid, xdifforder]; remove = #[[2 ;; -2]] &; {ode, odebc, odeic} = MapAt[remove, pto /@ {eqn1, bc, ic}, 1]; soll = NDSolveValue[{ode, odebc, odeic[[2]], odeic[[1]]}, [Psi] /@ grid, {t, 0, 50}]; sol1 = rebuild[#, grid, -1] &@soll Manipulate[ Plot[sol1[y, t] /. y -> y L[t], {y, 0, 1}, PlotRange -> {-5, 10}], {t, 0, 50}]

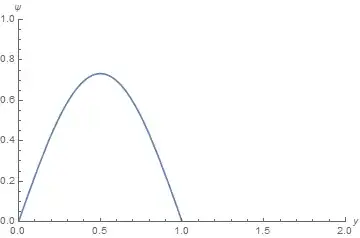

enter image description here

The solution grows larger in time and this makes me anxious. Is this how it's supposed to be or is there something wrong with my code?

I have also solved this problem without the use of pdetoode (check out my previous question ) and I got different result : enter image description here

I greatly appreciate anyone who would point out my error in both methods.

  • 1
    The grid is too coarse, try e.g. points = 200; xdifforder = 2;. Also, it's better to observe a smaller time interval first e.g. {t, 0, 5}. – xzczd Feb 19 '22 at 13:36
  • Thanks! Now the solution doesn't get larger in time. However, when I ramp up the $\omega$ to 1000, NDSolveValue spits out an error : NDSolveValue::icfail: Unable to find initial conditions that satisfy the residual function within specified tolerances. Try giving initial conditions for both values and derivatives of the functions. How do I fix this? (By the way, what does xdifforder mean in pdetoode?) – ForacleFunacle Feb 20 '22 at 05:18
  • 1
  • As to the icfail message, it's because you're currently discretize the system to a DAE system, to avoid it, you need to handle the b.c. in a more complicated way, see e.g. this post: https://mathematica.stackexchange.com/a/127411/1871 and this post https://mathematica.stackexchange.com/a/184285/1871 2. xdifforder sets the value of DifferenceOrder option of NDSolve\FiniteDifferenceDerivative`, it's the order of difference formula for spatial discretization.
  • – xzczd Feb 20 '22 at 14:31
