How can I add a horizontal line to my BarChart?

Question

This is my first time asking a question on the Mathematica StackExchange. As the title says I'm looking for a way to add a horizontal line across my bar graph. The code I currently have is as follows:

BarPi = BarChart[dataExperimentalPi,
  ChartLabels -> {A, B, C, D, E, F}, PlotRange -> {3, 3.25}]

I have a screenshot of the desired output below (along with my code at present).

Thank you so much for the help in advance.

Answer 1

There might be better ways, but you can try Epilog

BarChart[{1, 2, 3}, ChartLabels -> {"A", "B", "C"},
 Epilog -> {Red, Thick, Line[{{-0.4, 0.5}, {3.45, 0.5}}]}]

The problem is that I had to try different starting/ending values for the x coordinate to get the red line to match as needed, this is because the scales are different. For your case, you'd have to do the same. Try few values to make the red line starts and ends exactly where you want it.

Another option is to use Show

p1 = BarChart[{1, 2, 3}, ChartLabels -> {"A", "B", "C"}];
p2 = Graphics[{Red, Thick, Line[{{-0.4, 0.5}, {3.45, 0.5}}]}];
Show[p1, p2]

Answer 2

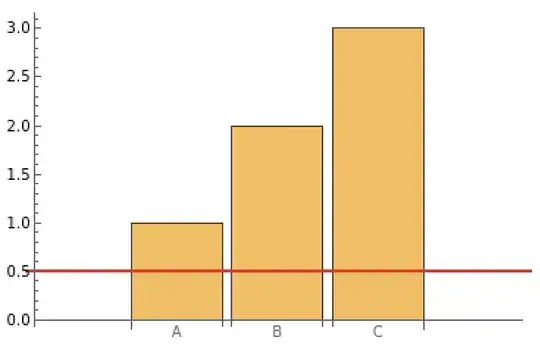

You could use grid lines:

BarChart[
  {1, 2, 3}, ChartLabels -> {"A", "B", "C"},
  GridLines -> {None, {0.5}},
  GridLinesStyle -> Directive[Red, Thick],
  Method -> {"GridLinesInFront" -> True}
]

Answer 3

1. nItems can be used to change the number of data items.
2. A Red line is drawn at the Mean value of the data items.
3. I have used this answer by @kglr for the FixedBarSpacing option that appears in Red.
4. My setup: v12.2.0 Win7-x64.
5. I hope this gives you the necessary pointers.

---

nItems = 13;
data = 3 + RandomReal[{-0.7, 0.7}, nItems];
m = Mean@data;
BarChart[data
 , ChartLabels -> CharacterRange[
    "A", "Z"][[1 ;; Length@data]
   ]
 , "FixedBarSpacing" -> True
 , PlotRange -> {
   {0.4, Length[data] + 0.4 + 0.1}
   , {0, Ceiling[Max@data, 0.5]}
   }
 , AxesOrigin -> {0.4, 0}
 , AspectRatio -> 1/3
 , ImageSize -> Large
 , ImagePadding -> {{Scaled[0.04], Scaled[0.01]}
   , {Scaled[0.04], Scaled[0.01]}}
 , Epilog -> {
   Red, Thick
   , Line[{
     Scaled[{0, 0}, {0.4, m}]
     , Scaled[{1, 0}, {0.4, m}]
     }]
   }
 ]
