Decrease padding around Bar Chart

Question

I don't like the default amount of padding / white space around BarChart. How can I specify it?

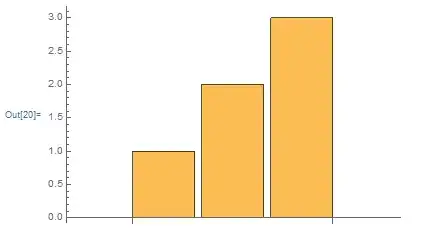

BarChart[{1, 2, 3}]

You can use AxesOrigin but it seems a little un-intuitive how to specify and I'm not sure how it scales. — Tom, Jun 16 '20 at 13:11
possible duplicate: How to remove the extra space on the left and the right of the default BarChart? — kglr, Jun 17 '20 at 10:15
I think you're right. But there have been some neater solutions posted this time :) — Tom, Jun 17 '20 at 11:32

MarcoB · Accepted Answer · 2020-06-16T20:29:14.617

This is definitely an example of how vexing it often can be to get flexible graphical output from some built ins in Mathematica, where one is left struggling against the defaults.

A way out may be to force RectangleChart into use, since that function apparently makes much more reasonable choices on plot ranges. RectangleChart needs explicit bar widths, though, so here is a quick hack to add those to a simple dataset:

fakeBarChart = RectangleChart[Transpose@{ConstantArray[1, Length[#]], #}] &;

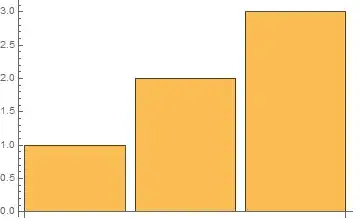

fakeBarChart[{1, 2, 3}]

No doubt this will fail messily for more complex datasets, but it may still be easier to fix that than to fight with the silly choices that BarChart makes.

This seems like the neatest solution so far. – Tom Jun 17 '20 at 08:50 — Tom, Jun 17 '20 at 08:50

kglr · Answer 2 · 2020-08-15T07:33:50.233

1. Use the (undocumented) option "FixedBarSpacing" as "FixedBarSpacing" -> True or as Method -> {"FixedBarSpacing" -> True}:

d = Range[3];

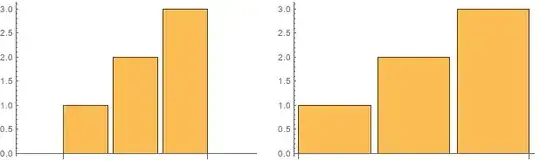

Row[{BarChart[d, ImageSize -> 300],
     BarChart[d,  ImageSize -> 300, "FixedBarSpacing" -> True]},
  Spacer[10]]

2. Using {d} as the first argument and using the option BarSpacing -> {Automatic, 1} removes the unwanted spaces on the left and right:

BarChart[{d}, BarSpacing -> {Automatic, 1}]

3. Alternatively, a combination of PlotRange + AxesOrigin + DisplayFunction:

BarChart[d,
 PlotRange -> {{0.4, Length[d] + .5}, All},
 PlotRangeClipping -> True,
 DisplayFunction -> (Show[#, AxesOrigin -> {0.4, 0}] &)]

Note: One would expect using AxesOrigin -> {0.4, 0} directly would have worked. But, somehow, user-specified AxesOrigin option values are overridden.

flinty · Answer 3 · 2020-06-16T15:51:44.793

2

It's annoying I couldn't find an easy way to do this. You can remove some of the white space if you pad with extra zeros on the right (you can also use PadRight[{1, 2, 3}, 6]) and limit the x-axis PlotRange:

BarChart[{1, 2, 3, 0, 0, 0}, BarSpacing -> 0.1,
 PlotRange -> {{0, 3.5}, Automatic}]

edited Jun 16 '20 at 15:51

answered Jun 16 '20 at 13:23

flinty

25,147
2
20
86
