Plot wavefronts of Laguerre-Gaussian modes

Question

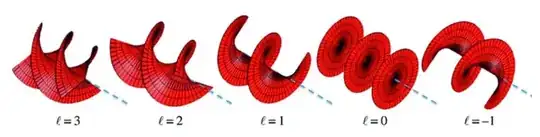

I am trying to plot wavefronts of Laguerre-Gaussian modes, and want to show the changing number of twists with the change in l values. If anyone has the code or any insights. Kindly help me about it. I want something like this.

@Syed , in that response twists are not changing with the number of l values. — Qubit, Sep 06 '23 at 06:32
Welcome to the Mathematica Stack Exchange. Please click on the question mark icon on the page banner and take the site Tour. Subsequently, post an on-topic question along with a minimal example and properly formatted Mathematica code that you have tried so far. Thanks. — Syed, Sep 06 '23 at 06:39
@Qubit From the first looking twists are changing on the picture from my answer on 202641. Maybe you mean something else? :) — Alex Trounev, Sep 06 '23 at 08:50
@AlexTrounev Thank You for your response. I am referring to the number of twists like there are same number of twists in l=1 and l=2 both. — Qubit, Sep 06 '23 at 10:50
This is periodic function, so picture shows one period only. Do you need picture with l periods? — Alex Trounev, Sep 06 '23 at 11:59
@AlexTrounev yes exactly. Actually, I need to show Orbital Angular Momentum equals to L=ℏ. Where being the number of twists.., Also, I have some basic questions regarding your code, can I have your email? — Qubit, Sep 06 '23 at 13:02
@Qubit Please, see my answer. My email address is available at https://www.sciencedirect.com/science/article/pii/S2211379722005277?via%3Dihub — Alex Trounev, Sep 07 '23 at 08:14

score 2 · Accepted Answer · answered Sep 07 '23 at 07:57

Code to reproduce $l$ periods on $(0, 2\pi)$ can be modified from our answer here as follows

LG[r_, \[Phi]_, p_, l_, w_,
   z_] := (Sqrt[(2 p!)/(\[Pi] (p + Abs[l])!)] 1/
     w E^(-r^2/w^2) ((r Sqrt[2])/w)^Abs[l] LaguerreL[p, Abs[l],
     2 r^2/w^2] E^(I l \[Phi] + I z));
LGA[r_, p_, l_, w_, z_] :=
  Sqrt[(2 p!)/(\[Pi] (p + Abs[l])!)] 1/w E^(-r^2/w^2) ((r Sqrt[2])/w)^
    Abs[l] LaguerreL[p, Abs[l], 2 r^2/w^2];
{Table[Module[{l = L, p = 0, w = 1},
   ParametricPlot3D[{Cos[l u] Sin[v], Sin[Abs[l] u] Sin[v], l u}, {u,
      0, 2 Pi}, {v, -Pi, Pi}, Mesh -> None,
     ColorFunction ->
      Function[{x, y, z},
       Hue[Abs[LG[Sqrt[x^2 + y^2], ArcTan[x, y], p, l, w, z]]]],
     Boxed -> False, BoxRatios -> {1, 1, 1}, Axes -> False,
     PlotPoints -> 50, PlotLabel -> Row[{"l = ", l}],
     ColorFunctionScaling -> False, PlotRange -> All] //
    Quiet], {L, {-2, -1, 1, 2, 3}}],
 Table[Module[{l = L, p = 0, w = 1},
   DensityPlot[
     Arg[LG[Sqrt[x^2 + y^2], ArcTan[x, y], p, l, w, 0]], {x, -3,
      3}, {y, -3, 3}, Frame -> False, Axes -> False, PlotPoints -> 50,
      ColorFunction -> Hue] // Quiet], {L, {-2, -1, 1, 2, 3}}],
 Table[Module[{l = L, p = 0, w = 1},
   DensityPlot[
     Abs[LGA[Sqrt[x^2 + y^2], p, l, w, 0]], {x, -3, 3}, {y, -3, 3},
     Frame -> False, Axes -> False, PlotPoints -> 50,
     ColorFunction -> Hue, PlotRange -> All] // Quiet], {L, {-2, -1,
    1, 2, 3}}]}
