A perforated ding dong surface

Question

Looking at this surface, which I created with Blender / Python,

I asked myself how we can duplicate some aspects of the scene with Mathematica.

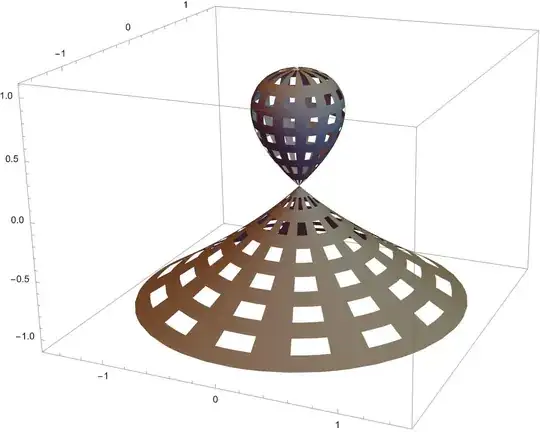

Thanks to its excellent documentation I could swiftly produce:

ParametricPlot3D[
 {Cos[u] * v Sqrt[1 - v], Sin[u] * v Sqrt[1 - v], v},
 {u, 0, 2 Pi}, {v, -1, 1},
 ImageSize -> Large,
 Mesh -> 25,
 MeshShading -> {{Gray, Gray}, {None, Gray}},
 MeshStyle -> None,
 PlotPoints -> 40]

I don't think that we can produce the shadows with Mathematica. But would it be possible

1. to thicken the paper-thin stripes? (Blender's solidify - modifier does this automatically)

2. to place the Ding-Dong on a plane and add a horizon to create an illusion of depth?

3. to add some interesting lighting?

Answer 1

Easier parts of the question can be handled using "ThickSurface" as PlotTheme (alternatively, using the option Extrusion) and MaterialShading as PlotStyle, and playing with the settings for MeshFunctions and Mesh:

amesh = Prepend[0] @
   Accumulate @ Riffle[ConstantArray[2 Pi/16, 16], Pi/32, {1, -1, 2}];
zmesh = Rescale[#, MinMax @ #, {-1 + 2/59, 1}] &@
  Accumulate[Flatten @ ConstantArray[{1, 5}, 10]];
dingdong = ParametricPlot3D[
  {Cos[u]v Sqrt[1 - v], Sin[u]v Sqrt[1 - v], v},
  {u, 0, 2 Pi}, {v, -1, 1},
  ImageSize -> Large,
  MeshFunctions -> {#4 &, #5 &},
  Mesh -> {amesh, zmesh},
  PlotStyle -> MaterialShading["Iron"],
  MeshShading -> {{Automatic, Automatic}, {None, Automatic}},
  PlotTheme -> "ThickSurface",
  Lighting -> "ThreePoint",
  MeshStyle -> None,
  PlotPoints -> 40 ];
shadow = ParametricPlot3D[
   {Cos[u]v Sqrt[1 - v], Sin[u]v Sqrt[1 - v], -1},
   {u, 0, 2 Pi}, {v, -1, 1},
   MeshFunctions -> {#4 &, #5 &},
   Mesh -> {amesh, zmesh},
   PlotStyle -> LightGray,
   MeshShading -> {{Automatic, Automatic}, {None, Automatic}},
   Lighting -> "ThreePoint",
   MeshStyle -> None, PlotPoints -> 40];

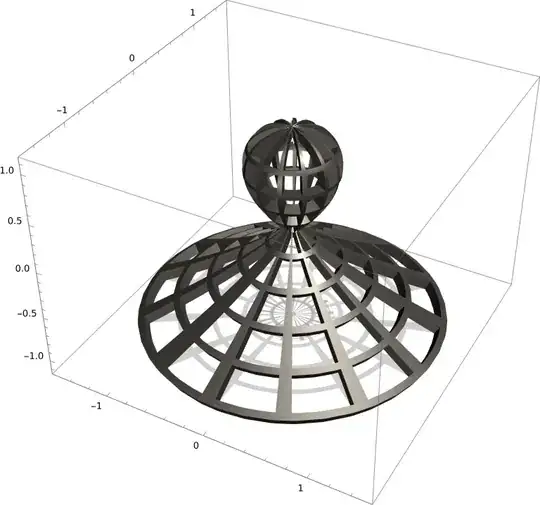

Show[dingdong, shadow]

Remove PlotTheme -> "ThickSurface" and add the option Extrusion -> .1 to get

Use MaterialShading["Gold"] to get
