Incompatible InterpolatingFunction between V9 (and earlier) and V10

Question

Bug introduced in 10.0.0 and fixed in 10.0.1

I am encountering compatibility issues when loading DumpSave(d) definitions in V10 that have been created with earlier versions. V10 appears to be unable to digest `InterpolatingFunction from earlier version. When looking at an example functions in both versions I get the following:

Definition from the Documentation

points = {{0, 0}, {1, 1}, {2, 3}, {3, 4}, {4, 3}, {5, 0}};
ifun = Interpolation[points]

In V9.0.1 this is digested as:

??ifun
Global`ifun
ifun=InterpolatingFunction[{{0,5}},{4,3,0,{6},{4},0,0,0,0,Automatic},{{0,1,2,3,4,5}},{{0},{1},{3},{4},{3},{0}},{Automatic}]

In V10:

??ifun
Global`ifun
ifun=InterpolatingFunction[{{0,5}},{4,3,0,{6},{4},0,0,0,0,Automatic,{},{},False},{{0,1,2,3,4,5}},{{0},{1},{3},{4},{3},{0}},{Automatic}]

Particularly the second part is not identical:

V9.0.1:

ifun[[2]]
{4,3,0,{6},{4},0,0,0,0,Automatic}

V10:

ifun[[2]]
{4,3,0,{6},{4},0,0,0,0,Automatic,{},{},False}

Can somebody explain the differences to me? Is there a way to still be able to use the old definitions (which were time consuming to create) in V10?

The V10 documentation doesn't mention any modifications since V3, but this is clearly bogus. I think the changes were made to support the new output format for interpolation functions that V10 implemented. I like the new output format. — m_goldberg, Aug 18 '14 at 13:32
@m_Goldberg I agree, the new output format is nice. However, I also like my old InterpolatingFunctions and i would like to Keep using them :) — Markus Roellig, Aug 18 '14 at 13:40
But what can you do except rebuild them? WRI giveth and WRI taketh away. I guess I advise complaining to WRI tech support. — m_goldberg, Aug 18 '14 at 13:44
This is a bug and seems to be fixed in the upcoming V10.0.1 release. — user21, Aug 19 '14 at 09:43
@user21 Do you have any more information on this? Such as when V10.0.1 is going to be released. While I like the fix Mr.Wizard suggest, it would be nice if it works out of the box. — theDriver, Aug 19 '14 at 21:55
@theDriver, my guess is more on the order of weeks than month. — user21, Aug 20 '14 at 06:38

score 8 · Accepted Answer · edited Apr 13 '17 at 12:55

Following How to splice together several instances of InterpolatingFunction? which I updated earlier today, before seeing this question, there are several new Properties for InterpolatingFunction expressions in version 10:

v7 = {"Coordinates", "DerivativeOrder", "Domain", "Evaluate", "Grid",
   "InterpolationOrder", "MethodInformation", "Methods", "Properties", "ValuesOnGrid"};

v10 = {"Coordinates", "DerivativeOrder", "Domain", "ElementMesh", "Evaluate", "Grid",
   "InterpolationMethod", "InterpolationOrder", "MethodInformation", "Methods",
   "OutputDimensions", "Periodicity", "PlottableQ", "Properties", "QuantityUnits",
   "ValuesOnGrid"};

Complement[v10, v7]

{"ElementMesh", "InterpolationMethod", "OutputDimensions",
 "Periodicity", "PlottableQ", "QuantityUnits"}

I suspect that the additional parameters correlate one or more of these. Proceeding with that assumption I searched for a mapping and found:

test1 = Array[{Quantity[#, "Second"], Quantity[#^2, "Meters"]} &, 10] // Interpolation;

test1[[2]]
test1["QuantityUnits"]
test1["PlottableQ"]

{4, 3, 0, {10}, {4}, 0, 0, 0, 0, Automatic, {"Seconds"}, "Meters", True}
{{"Seconds"}, "Meters"}
True

Older InterpolatingFunction expressions should not have any units associated (I believe) therefore you should always be able to use {},{} for those parameters. Apparently "PlottableQ" is False unless there are units so you should be able to use False there as well.

ifun9 = InterpolatingFunction[{{0, 5}}, {4, 3, 0, {6}, {4}, 0, 0, 0, 0,
    Automatic}, {{0, 1, 2, 3, 4, 5}}, {{0}, {1}, {3}, {4}, {3}, {0}}, {Automatic}];

ifunFixed = MapAt[Join[#, {{}, {}, False}] &, ifun9, 2];

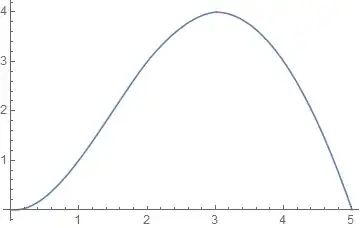

Plot[ifunFixed[x], {x, 0, 5}]

enter image description here

Works like a charm. Thanks! – Markus Roellig Aug 19 '14 at 09:05 — Markus Roellig, Aug 19 '14 at 09:05
