Changing the atom color for plotting xyz-files

Question

Mathematica takes the standard color code for atoms when plotting an *.xyz file, but I want to customize the color for the specific atoms.

I really become desperate as I did not get it so far.

Example:

Import["ExampleData/caffeine.xyz"]

caffeine

It doesn't really matter which colors are used. I just need to know how to change the default ones.

Michael E2 · Answer 1 · 2014-11-12T16:57:23.267

13

One can use the (undocumented?) option ColorRules:

Import["ExampleData/caffeine.xyz",
 ColorRules -> {"H" -> Red, "C" -> Black, "N" -> Darker@Green, "O" -> White}]

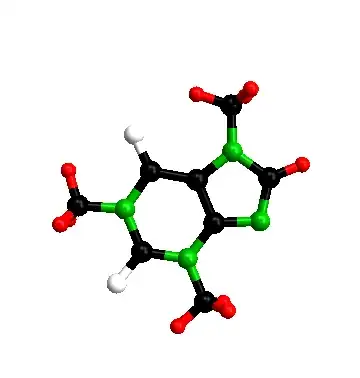

Mathematica graphics

Addendum: Other options may be found here: Options[Graphics`MoleculePlotDump`iMoleculePlot3D]. Note: The option ColorFunction seems to be unimplemented.

edited Nov 12 '14 at 16:57

answered Nov 12 '14 at 16:32

Michael E2

235,386
17
334
747

2

Related: 24045. – Michael E2 Nov 12 '14 at 17:11
Great find! For the particular problem I can't imagine a better answer. I still do like the generality of my approach and I hope people find value in it elsewhere. – Mr.Wizard Nov 13 '14 at 09:34
@Mr.Wizard Thanks. I liked your answer so much, I nearly gave up after reading it. But I was curious how the bonds are determined, when bond data is missing in the xyz format. So I kept looking. – Michael E2 Nov 13 '14 at 12:35

score 10 · Answer 2 · answered Nov 12 '14 at 11:26

Try this:

t = Import["c:\\work\\temp\\1.xyz"];

enter image description here

allColors = {};
(*get all colors from Graphics3D*)
Scan[If[MatchQ[#, RGBColor[__]], AppendTo[allColors, #]] &, t,
  Infinity];
allColors = DeleteDuplicates[allColors]
(*{RGBColor[0.65, 0.7, 0.7], RGBColor[0.4, 0.4, 0.4]}*)
(*replace all obtained colors with any another*)
replaceRules = MapThread[Rule, {allColors, {RGBColor[0.4, 0.4, 1], RGBColor[0.4, 1, 1]}}];
t /. replaceRules

enter image description here

score 6 · Answer 3 · edited Apr 13 '17 at 12:55

This question is closely related to: How to change element color in Periodic Table? and my solution there works here as well. However thanks to this question I realized that it had a bug which I have now fixed.

An example for your application:

(* please load code from linked answer *)

withScheme[
  Import["ExampleData/caffeine.xyz"],
  "Atoms",
  {"H" -> Blue, "O" -> Yellow, "N" -> Orange}
]

enter image description here
