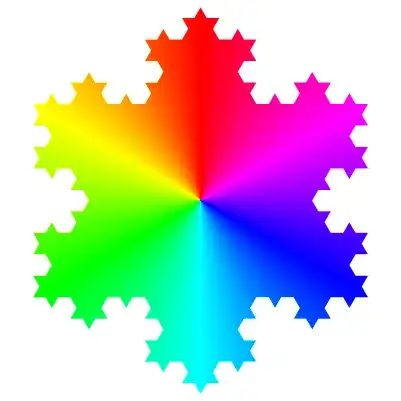

How to draw a polygon with hue color like this one (Koch snowflake)?

Question

I know how to construct the Koch snowflake:

f[{a:{x1_,y1_},b:{x2_,y2_}}] :=
  Partition[{a,(2a+b)/3,{3(x1+x2)+√3(y1-y2),√3(x2-x1)+3 (y1+y2)}/6,(a+2b)/3,b},2,1];
pts=Join@@Nest[Join@@f/@#&,.5{{{0,0},{2,0}},{{2,0},{1,-√3}},{{1,-√3},{0,0}}},5];
Graphics[Polygon @ pts]

and draw a hue disk (How do I draw a Circular Graph colored like this in Mathematica?), but how do I draw a Koch snowflake with hue-based coloring like this? Vector diagrams are better than images.

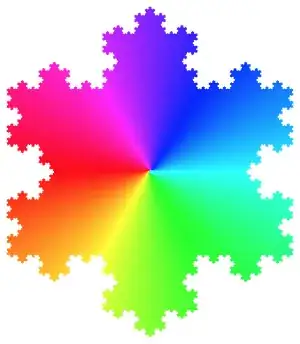

Answer 1

With a hue disk as you suggested (but slightly tweaked to get the colours in the right spot):

hueDisk = With[{sectors = 360}, angle = 2 Pi/sectors;
  Table[{Hue[1 - i/sectors], EdgeForm[{Thick, Hue[1 - i/sectors]}],
    Disk[{0, 0}, 0.6, {\[Pi]/2 + i angle, \[Pi]/2 + (i + 1) angle}]}, {i, 0, sectors - 1}]];

Then we can use the FilledCurve technique to draw the snowflake over the top:

Graphics[{hueDisk,
  FaceForm[White], EdgeForm[Black],
  FilledCurve[{
    {Line[{ImageScaled[{-2, -2}], ImageScaled[{2, -2}],
       ImageScaled[{2, 2}], ImageScaled[{-2, 2}]}]},
    {Line@With[{m = Mean@pts}, # - m & /@ pts]}}]}]

Answer 2

One way is to use your code for the snowflake, and turn it into an image. Then use the code for the colored circle and turn it into an image. Then multiply:

f[{a : {x1_, y1_}, b : {x2_, y2_}}] :=
  Partition[{a, (2 a + b)/3, {3 (x1 + x2) + \[Sqrt]3 (y1 - y2), \[Sqrt]3 (x2 - x1) +
       3 (y1 + y2)}/6, (a + 2 b)/3, b}, 2, 1];
pts = Join @@ Nest[Join @@ f /@ # &, .5
     {{{0, 0}, {2, 0}}, {{2, 0}, {1, -\[Sqrt]3}}, {{1, -\[Sqrt]3}, {0, 0}}}, 5];
flake = ColorNegate[Image[Graphics[Polygon@pts], ImageSize -> 400]];
circle = Image[With[{sectors = 360}, angle = 2 Pi/sectors;
    Graphics[Table[{Hue[i/sectors], EdgeForm[{Thick, Hue[i/sectors]}],
       Disk[{0, 0}, 1, {i angle, (i + 1) angle}]}, {i, 0,  sectors - 1}]]], ImageSize -> 400];
ColorNegate[ImageMultiply[flake, circle]]

Answer 3

Clear["`*"]
f[{a_,b_}]:={3a,2a+b,3/2(a+b)+√3/2(b-a).RotationMatrix[-Pi/2],a+2b,3b}/3;
pts=Nest[Join@@f/@Partition[#,2,1]&,.5{{0,0},{2,0},{1,-√3},{0,0}},3];
img=Colorize[Image@Rescale@Table[ArcTan[x,y+1.*^-6],{x,-200,200},{y,-200,200}],ColorFunction->Hue];
ImageAdd[img,Graphics[Polygon@pts]]

pts = # - Mean@pts & /@ pts;
Graphics[{Texture@img,Polygon[pts,VertexTextureCoordinates->Rescale@pts]}]

Answer 4

Using the Koch snowflake generator from here, and the current ability of Mathematica to plot over polygons, here is one more possibility:

kochinsert[pts_?MatrixQ] :=
           Insert[#, Composition[TranslationTransform[#[[2]] - #[[1]]],
                                 RotationTransform[-π/3, #[[1]]]][#[[2]]], 3] &[
                     Transpose[{1 - #, #}] &[Subdivide[3]].pts]

koch[pts_?MatrixQ] :=
     Apply[Join, Prepend[Rest /@ Rest[#], First[#]]] &[kochinsert /@ Partition[pts, 2, 1]]

ks = Polygon[Nest[koch, Append[#, First[#]] & @ N[CirclePoints[3]], 4]];
DensityPlot[ArcTan[-y, -x], {x, y} ∈ ks, BoundaryStyle -> Black, ColorFunction -> Hue,
            Exclusions -> None, Frame -> False, PlotPoints -> 95]

Answer 5

Using:

• KochCurve: (introduced Mar 16, 2017)

• ConicGradientFilling (introduced Dec 16, 2020)

---

Clear["Global`*"];
cols = (Hue /@ Subdivide[1, 13]) // ColorConvert[#, RGBColor] & //
    Reverse // RotateRight[#, 4] &;
reg = TransformedRegion[KochCurve[4]
     , #] & /@ {RotationTransform[Pi, {1/2, 0}]
    , RotationTransform[-Pi/3, {1, 0}]
    , RotationTransform[Pi/3, {0, 0}]};
ks = reg /. Line -> Sequence // Flatten[#, 2] & // DeleteDuplicates //
    CanonicalizePolygon@*Polygon;
Graphics[{ConicGradientFilling[cols], ks}]
