In object programming languages often structs exist which help you to reuse code twice or often, but writing that code only one time.

A convenient way to write Latex code if the author does not want to dive too deep into Latex is to simply use a template.

The use case here is that the author wants to have shared components to include which are template independent. For sections and subsection I think this is quite common. But the author wants to share the code for an element such as code for a figure and caption into for example a book template and a presentation template.

A file exampleFigure.tex has content

      \begin{figure}[h!]
        \includegraphics[width=0.6\paperwidth]{examplePath/exampleFigure.png}
        \caption{Example Section.}
      \end{figure}

and be included in exampleBookSection.tex

       The example BlaBla shows the ... and we can see in figure:

   \include{exampleFigure}

   but on the other hand ...

as well as in examplePresentationSlide.tex

    \begin{frame}{ExampleSlide}
       \framesubtitle{Random Bla}%
       \include{exampleFigure}
    \end{frame}

The named use case already gets pretty much more complex if we want to replace in exampleFigure.tex [width=0.6\paperwidth] to [width=0.8\paperwidth] in for example the include in examplePresentationSlide.tex. In programming we can simply reuse code fragments by having variables as parameters.

In every example I found for include mechanism a child.tex is included only one time in a parent.tex. Those examples have a tree structure. My use case allows child.tex included by two parents parent1.tex and parent2.tex. I want even multiple roots (template files).

  • Is such a structure maintainable or not?
  • Do helpful latex IDE's exist if it is maintainable?
  • Is there a helpful guide to follow here for recommendations how to solve things such as the parameterization problem named above?

How to solve the parameterization question?

Jan Hackenberg
  • 103
  • 2
    This is quite confusing... anyway, it looks like that you just want to define a macro. (go read up and come back if you have more questions.) – user202729 Dec 24 '21 at 08:05
  • 2
    @moewe Actually, include does more (own aux file) and input would be what just takes the content. Imo, include is wrong in thas case. – TeXnician Dec 24 '21 at 08:19
  • @TeXnician Ach! I confused \include and \input again. Thanks for pointing that out. I'll delete the comments (too late to edit them now :-(). – moewe Dec 24 '21 at 08:21

3 Answers3

3

"Libraries" in LaTex are called packages and included via

\usepackage{mystuff}

With the code accessed by, for example \myfig{fig:zz}{myfigure}{my caption}

where, in this case mystuff.sty should have

\newcommand\myfig[4][htp]{%
\begin{figure}[#1]%
\includegraphics[width=0.6\paperwidth]{#3}%
\caption{#4\label{#2}}%
\end{figure}}

note I made the positional argument optional so you can go \myfig[!ht] when needed. You shouldn't routinely add ! as it is for exceptional use to over-ride the document wide settings, it doesn't make sense to set document wide settings then always ignore them. Also using h on its own is usually an error and LaTeX will warn about it and change it, so htp is a better default.

David Carlisle
  • 757,742
1

Some valiant attempts have been made to do this (cf. Passing parameters to \input{text} (included text file) as a starting point), but I find it's usually not worth it.

What you can do, however, is have variables/macros in the parent document (even change them on the fly, as it were) and reference that in the child.

\begin{figure}[h!]
        \includegraphics[width=\mywidth]{\myfigure}
        \caption{\mycaption}
\end{figure}

… in conjunction with, say,

\def\mywidth{.6\paperwidth}
\def\myfigure{examplePath/exampleFigure} % usually best to omit the .png etc suffix
\def\mycaption{This is a caption!}
\input{exampleFigure.tex}

% using the same width, so no need to redefine
\def\myfigure{examplePath/exampleFigure2}
\def\mycaption{Another caption!}
\input{exampleFigure.tex}

As you can see, you'd have to redefine your variables before \inputing your snippet, as needed. That said, I am a copy & paste guy myself when it comes to these things. The most tedious part, in my book, is the preamble anyway (don't get me started on font setup), and I certainly reuse those.

Ingmar
  • 6,690
  • 5
  • 26
  • 47
1

I can offer an interface where template-files are of pattern

\filesection{⟨name of section⟩}{⟨replacement for the token \default⟩}
⟨code⟩
\endfilesection
%-------------------------------------------------------------
\filesection{⟨name of section⟩}{⟨replacement for the token \default⟩}
⟨code⟩
\endfilesection
%-------------------------------------------------------------
\filesection{⟨name of section⟩}{⟨replacement for the token \default⟩}
⟨code⟩
\endfilesection
%-------------------------------------------------------------
\endinput

You input the template-files with the command

\inputfilesection{⟨name of template-file⟩}%
                 {⟨name of section⟩}%
                 [⟨replacement for the token \default⟩]

The ⟨code⟩ of a file-section will be executed only if both the \inputfilesection-command and the \filesection-comand have the same ⟨name of section⟩-argument.

In this case ⟨code⟩ will be read under verbatim-catcode-régime and the sequence \default will be replaced: If the \inputfilesection-command specifies a ⟨replacement for the token \default⟩-argument, then the replacement will come from that argument.
Otherwise the replacement will come from the \filesection-command's ⟨replacement for the token \default⟩-argument.

The result is passed to \scantokens for re-tokenization and normal processing.

Several \filesections can have the same ⟨name of section⟩. In this case all file-sections of the name in question occurring in the template-file are delivered by \inputfilesection. In this case if the \inputfilesection-provides a ⟨replacement for the token \default⟩-argument, this argument will be used as replacement for the token \default with all file-sections delivered.

CAVEATS I AM AWARE OF:

!!!Don't do \inputfilesection inside files that are called by \inputfilesection!!!

!!!\inputfilesection attempts to read the ⟨replacement for the token \default⟩-argument under verbatim-catcode-régime. Therefore \inputfilesection should not be used inside arguments of other macros and the like.!!!

%
% A exemplary template-file:
%
\begin{filecontents*}[overwrite]{MyTemplates.tex}
%\begin{filecontents*}{MyTemplates.tex}
\filesection{example-image-a}{width=0.6\textwidth}
\begin{figure}[!ht]
\centering
\includegraphics[\default]{example-image-a}
\caption{Example Section.}
\end{figure}
\endfilesection
%-------------------------------------------------------------
\filesection{example-image-b}{width=0.6\textwidth}
\begin{figure}[!ht]
\centering
\includegraphics[\default]{example-image-b}
\caption{Example Section.}
\end{figure}
\endfilesection
%-------------------------------------------------------------
\filesection{example-image-c}{width=0.6\textwidth}
\begin{figure}[!ht]
\centering
\includegraphics[\default]{example-image-c}
\caption{Example Section.}
\end{figure}
%\show\defaultABC %% This yields \show\defaultABC
                  % , resulting in > \defaultABC=undefined.
                  % This is a test to make sure that replacing
                  % is not done if the sequence \default is
                  % trailed by a character whose catcode at the
                  % time of replacing is 11.
\endfilesection
%-------------------------------------------------------------
\endinput
\end{filecontents*}

\documentclass{article}
\usepackage{graphicx}


\makeatletter
%///// start of code that could go into a package / .sty-file//////////////////
\newcommand\UD@ifnextcharspace[3]{%
  \let\reserved@d= #1%
  \edef\reserved@a{\unexpanded{#2}}%
  \edef\reserved@b{\unexpanded{#3}}%
  \futurelet@let@token\UD@ifnch
}%
\newcommand\UD@ifnch{%
  \ifx@let@token\reserved@d\expandafter\reserved@a\else\expandafter\reserved@b\fi
}%


\NewDocumentCommand\inputfilesection{mm}{%
  % Use \UD@ifnextcharspace for ensuring the next token is read under
  % normal catcode-régime:
  \begingroup
  \UD@ifnextcharspace[{%
    \let\do@makeother\dospecials
    \do^^I%
    \do^^M%
    @inputfilesection{#1}{#2}%
  }{%
    \let\do@makeother\dospecials
    \do^^I%
    \do^^M%
    @inputfilesection{#1}{#2}%
  }%
}%
\NewDocumentCommand@inputfilesection{mm!o}{%
  \endgroup
  \def@stringincommand{#2}%
  \IfNoValueF{#3}{\def\default{#3}}%
  \input{#1}%
  \global\let\default\UndeFinEd
}%
\newcommand@stringincommand{}%
\newcommand@stringinfile{}%
\NewDocumentCommand\filesection{m}{%
  \begingroup@makeother^^I\relax
  @filesection{#1}%
}%
\NewDocumentCommand@filesection{mv}{%
  \endgroup
  \begingroup
  \let\do@makeother\dospecials
  \do^^I%
  \do^^M%
  @@filesection{#1}{#2}%
}%
\begingroup
\newcommand@@filesection[3]{%
  \endgroup
  \def@@filesection##1##2##3#1{%
     \def@stringinfile{##1}%
     \expandafter\endgroup
     \ifx@stringinfile@stringincommand\expandafter@firstofone\else\expandafter@gobble\fi
     {%
       \begingroup
       @ifundefined{default}{\def\default{##2}}{}%
       \newlinechar=\endlinechar
       \scantokens
       \expandafter\expandafter
       \expandafter\expandafter
       \expandafter\expandafter
       \expandafter{\expandafter\UD@Replacedefault\expandafter{\default}{##3}{#3}#2}%
     }\ignorespaces
  }%
}%
@firstofone{%
  \let\do@makeother\dospecials
  \do^^I%
  \catcode\{=1 % \catcode}=2 %
  @@filesection
}{\endfilesection}{%}{\endgroup\ignorespaces }%
%
%
%%/////////// code for \UD@Replacedefault /////////////////////////////////////
%%=============================================================================
%% PARAPHERNALIA:
%% \UD@firstoftwo, \UD@secondoftwo, \UD@PassFirstToSecond, \UD@Exchange,
%% \UD@stopromannumeral, \UD@CheckWhetherNull, \UD@ExtractFirstArg
%%=============================================================================
\newcommand\UD@firstoftwo[2]{#1}%
\newcommand\UD@secondoftwo[2]{#2}%
\newcommand\UD@firstoftwobraced[2]{{#1}}%
\newcommand\UD@PassFirstToSecond[2]{#2{#1}}%
\newcommand\UD@Exchange[2]{#2#1}%
@ifdefinable\UD@stopromannumeral{\chardef\UD@stopromannumeral=\^^00}% %%----------------------------------------------------------------------------- %% Check whether argument is empty: %%............................................................................. %% \UD@CheckWhetherNull{<Argument which is to be checked>}% %% {<Tokens to be delivered in case that argument %% which is to be checked is empty>}% %% {<Tokens to be delivered in case that argument %% which is to be checked is not empty>}% %% %% The gist of this macro comes from Robert R. Schneck's \ifempty-macro: %% <https://groups.google.com/forum/#!original/comp.text.tex/kuOEIQIrElc/lUg37FmhA74J> \newcommand\UD@CheckWhetherNull[1]{% \romannumeral\expandafter\UD@secondoftwo\string{\expandafter \UD@secondoftwo\expandafter{\expandafter{\string#1}\expandafter \UD@secondoftwo\string}\expandafter\UD@firstoftwo\expandafter{\expandafter \UD@secondoftwo\string}\expandafter\UD@stopromannumeral\UD@secondoftwo}{% \expandafter\UD@stopromannumeral\UD@firstoftwo}% }% %%----------------------------------------------------------------------------- %% Extract first inner undelimited argument: %%............................................................................. %% \UD@ExtractFirstArg{ABCDE} yields {A} %% %% \UD@ExtractFirstArg{{AB}CDE} yields {{AB}} %% %% Due to \romannumeral-expansion the result is delivered after two %% expansion-steps/after "hitting" \UD@ExtractFirstArg with \expandafter %% twice. %% %% \UD@ExtractFirstArg's argument must not be blank. %% This case can be cranked out via \UD@CheckWhetherBlank before calling %% \UD@ExtractFirstArg. %% %% Use frozen-\relax as delimiter for speeding things up. %% Frozen-\relax is chosen because David Carlisle pointed out in %% <https://tex.stackexchange.com/a/578877> %% that frozen-\relax cannot be (re)defined in terms of \outer and cannot be %% affected by \uppercase/\lowercase. %% %% \UD@ExtractFirstArg's argument may contain frozen-\relax: %% The only effect is that internally more iterations are needed for %% obtaining the result. %%............................................................................. \@ifdefinable\UD@RemoveTillFrozenrelax{% \expandafter\expandafter\expandafter\UD@Exchange \expandafter\expandafter\expandafter{% \expandafter\expandafter\ifnum0=0\fi}% {\long\def\UD@RemoveTillFrozenrelax#1#2}{{#1}}% }% \expandafter\UD@PassFirstToSecond\expandafter{% \romannumeral\expandafter \UD@PassFirstToSecond\expandafter{\romannumeral \expandafter\expandafter\expandafter\UD@Exchange \expandafter\expandafter\expandafter{% \expandafter\expandafter\ifnum0=0\fi}{\UD@stopromannumeral#1}% }{% \UD@stopromannumeral\romannumeral\UD@ExtractFirstArgLoop }% }{% \newcommand\UD@ExtractFirstArg[1]% }% \newcommand\UD@ExtractFirstArgLoop[1]{% \expandafter\UD@CheckWhetherNull\expandafter{\UD@firstoftwo{}#1}% {\UD@stopromannumeral#1}% {\expandafter\UD@ExtractFirstArgLoop\expandafter{\UD@RemoveTillFrozenrelax#1}}% }% %%============================================================================= %% \UD@ForkDefaultPhrase{<tokens to check>} %% {<tokens in case <tokens to check> equal \default>} %% {<tokens in case <tokens to check> are sub-phrase of \default>} %% {<tokens in other cases>} %%============================================================================= \@ifdefinable\UD@gobbletoexclam{\long\def\UD@gobbletoexclam#1!{}}% \begingroup \newcommand\UD@ForkDefaultPhrase[8]{% \endgroup \newcommand\UD@ForkDefaultPhrase[1]{% \expandafter\UD@CheckWhetherNull\expandafter{\UD@gobbletoexclam##1!}% {% \UD@DefaultPhraseFork !##1!#2!#3!#4!#5!#6!#7!#8!{\expandafter\UD@firstoftwo\UD@firstoftwo{}}% !#1!##1!#3!#4!#5!#6!#7!#8!{\expandafter\UD@firstoftwo\UD@firstoftwo{}}% !#1!#2!##1!#4!#5!#6!#7!#8!{\expandafter\UD@firstoftwo\UD@firstoftwo{}}% !#1!#2!#3!##1!#5!#6!#7!#8!{\expandafter\UD@firstoftwo\UD@firstoftwo{}}% !#1!#2!#3!#4!##1!#6!#7!#8!{\expandafter\UD@firstoftwo\UD@firstoftwo{}}% !#1!#2!#3!#4!#5!##1!#7!#8!{\expandafter\UD@firstoftwo\UD@firstoftwo{}}% !#1!#2!#3!#4!#5!#6!##1!#8!{\expandafter\UD@firstoftwo\UD@firstoftwo{}}% !#1!#2!#3!#4!#5!#6!#7!##1!{\expandafter\UD@firstoftwo\UD@firstoftwobraced}% !#1!#2!#3!#4!#5!#6!#7!#8!{\expandafter\UD@secondoftwo\UD@firstoftwo{}}% !!!!% }{\expandafter\UD@secondoftwo\UD@firstoftwo{}}% }% \@ifdefinable\UD@DefaultPhraseFork{% \long\def\UD@DefaultPhraseFork##1!#1!#2!#3!#4!#5!#6!#7!#8!##2##3!!!!{##2}% }% }% \@firstofone{% \let\do\@makeother\dospecials \do\^^I \catcode{=1 %
  \catcode\}=2 % \UD@ForkDefaultPhrase }{\}{\d}{\de}{\def}{\defa}{\defau}{\defaul}{\default}% %%============================================================================= %% \UD@Replacedefault{<Replacement>}% %% {<List of character-tokens where the sequence %% \default is to be replaced>}% %% {<tokens to prepend to result>}% %%============================================================================= \newcommand\UD@Replacedefault[3]{% % #1 - <Replacement> % #2 - <List where the token \default is to be replaced> % #3 - <tokens to prepend to result> \romannumeral\UD@Replacedefaultloop{}{}{\UD@secondoftwo}{#2}{#3}{#1}% }% \newcommand\UD@Replacedefaultloop[6]{% % #1 - <Result collected so far> % #2 - <sub-phrase of \default collected so far> % #3 - <flag for checking catcode of subsequent character if phrase \default is collected> % #4 - <List of character-tokens> % #5 - <tokens to prepend to result> % #6 - <Replacement> \UD@CheckWhetherNull{#4}{% \UD@ForkDefaultPhrase{#2}\UD@firstoftwo\UD@secondoftwo\UD@secondoftwo {\UD@stopromannumeral#5#1#6}{\UD@stopromannumeral#5#1#2}% }{% \expandafter\UD@PassFirstToSecond\expandafter{\UD@firstoftwo{}#4}{% \expandafter\expandafter\expandafter\UD@PassFirstToSecond\UD@ExtractFirstArg{#4}{% \UD@defaultreplace{#5}{#6}{#1}{#2}{#3}% }% }% }% }% \newcommand\UD@defaultreplace[7]{% % #1 - <tokens to prepend to result> % #2 - <Replacement> % #3 - <Result collected so far> % #4 - <sub-phrase of \default collected so far> % #5 - <flag for checking catcode of subsequent character if phrase \default is collected> % #6 - <Character in this iteration> % #7 - <Remaining List of character-tokens> \expandafter\UD@firstoftwo\expandafter{% \expandafter\UD@Replacedefaultloop\romannumeral #5{% \ifnum\the\catcode\expandafter\csname\string#6\endcsname=11 %
      \expandafter\UD@firstoftwo\else\expandafter\UD@secondoftwo\fi
      {\UD@stopromannumeral{#3#4}}{\UD@stopromannumeral{#3#2}}{}{\UD@secondoftwo}{#6#7}%
    }{%
      \UD@ForkDefaultPhrase{#4#6}%
                           {\UD@stopromannumeral{#3}{#4#6}{\UD@firstoftwo}}%
                           {\UD@stopromannumeral{#3}{#4#6}{\UD@secondoftwo}}%
                           {\UD@stopromannumeral{#3#4#6}{}{\UD@secondoftwo}}%
                           {#7}%
    }%
  }{}{#1}{#2}%
}%
%%/////////// end of code for \UD@Replacedefault //////////////////////////////
%///// end of code that could go into a package / .sty-file////////////////////
\makeatother


\begin{document}


\inputfilesection{MyTemplates.tex}{example-image-a}


\inputfilesection{MyTemplates.tex}{example-image-b}


\inputfilesection{MyTemplates.tex}{example-image-c}


\inputfilesection{MyTemplates.tex}{example-image-a}[width=.3\textwidth]


\inputfilesection{MyTemplates.tex}{example-image-b}[width=.3\textwidth]


\inputfilesection{MyTemplates.tex}{example-image-c}[width=.3\textwidth]


\end{document}

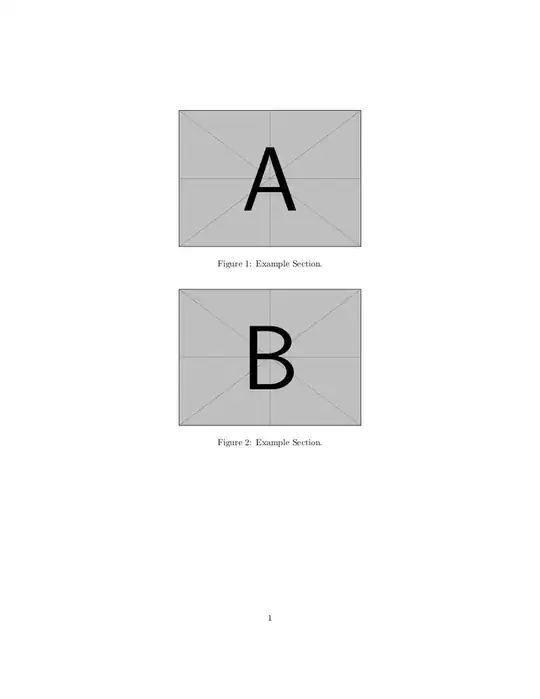

enter image description here

Ulrich Diez
