2

I have to create a series of exercises, all with the same items:

  • Title
  • Image
  • Questions
  • Solutions
  • etc..

I would like to create a separate file for each exercise and then from my main document be able to reference these specific sections multiple times. I want to be able to put equations, images, tikz, etc... within each item.

I considered creating a file with macro definitions for each case, e.g.:

ex1.sty

\newcommand\ex1sol{
(contents)
}
...

Then call the macros where needed but this is not working, and I feel there has to be a better solution anyway, since this does not seem like a rare application. Essentially it means to present the same content in different formats.

Ingmar
  • 6,690
  • 5
  • 26
  • 47
jsb
  • 454

1 Answers1

1

As a variant of my answer to Using Latex code chunks as library - For reusing latex elements such as figures in multiple representations I can offer an interface where files with specifiable sections are of pattern

\filesection{⟨name of section⟩}
⟨code⟩
\endfilesection
%-------------------------------------------------------------
\filesection{⟨name of section⟩}
⟨code⟩
\endfilesection
%-------------------------------------------------------------
\filesection{⟨name of section⟩}
⟨code⟩
\endfilesection
%-------------------------------------------------------------
\endinput

You input these files with the command

\inputfilesection{⟨name of file⟩}{⟨name of section⟩}

The ⟨code⟩ of a file-section will be executed only if both the \inputfilesection-command and the \filesection-comand have the same ⟨name of section⟩-argument.

In this case ⟨code⟩ will be read under verbatim-catcode-régime. Then the result is passed to \scantokens for re-tokenization and normal processing.

Several \filesections can have the same ⟨name of section⟩. In this case all file-sections of the name in question occurring in the file are delivered by \inputfilesection.

CAVEATS I AM AWARE OF:

!!!Don't do \inputfilesection inside files that are called by \inputfilesection!!!

%
% An example file with \filesection-commands:
%
%\begin{filecontents*}[overwrite]{FileWithSections.tex}
\begin{filecontents*}{FileWithSections.tex}
\filesection{First Section}
Some text in First Section Of FileWithSections.tex.
\begin{verbatim*}
Some verbatim material in
First Section Of FileWithSections.tex.
\end{verbatim*}
\endfilesection
%-------------------------------------------------------------
\filesection{Second Section}
Some text in Second Section Of FileWithSections.tex.
\begin{verbatim*}
Some verbatim material in
Second Section Of FileWithSections.tex.
\end{verbatim*}
\endfilesection
%-------------------------------------------------------------
\filesection{Third Section}
Some text in Third Section Of FileWithSections.tex.
\begin{verbatim*}
Some verbatim material in
Third Section Of FileWithSections.tex.
\end{verbatim*}
\endfilesection
%-------------------------------------------------------------
\endinput
\end{filecontents*}

\documentclass{article}
\usepackage{graphicx}


\makeatletter
%///// start of code that could go into a package / .sty-file//////////////////
@ifundefined{NewDocumentCommand}{\RequirePackage{xparse}}{}%
\NewDocumentCommand\inputfilesection{mm}{%
  \def@stringincommand{#2}%
  \input{#1}%
}%
\newcommand@stringincommand{}%
\newcommand@stringinfile{}%
\NewDocumentCommand\filesection{m}{%
  \begingroup
  \let\do@makeother\dospecials
  \do^^I%
  \do^^M%
  @filesection{#1}%
}%
\begingroup
\newcommand@filesection[2]{%
  \endgroup
  \def@filesection##1##2#1{%
     \def@stringinfile{##1}%
     \expandafter\endgroup
     \ifx@stringinfile@stringincommand\expandafter@firstofone\else\expandafter@gobble\fi
     {%
       \begingroup
       \newlinechar=\endlinechar
       \scantokens\expandafter\expandafter\expandafter{%
       \expandafter\expandafter\expandafter\endgroup
       \UD@RemoveLeadingNTrailingCarriageReturn{##2}#2}%
     }\ignorespaces
  }%
}%
@firstofone{%
  \let\do@makeother\dospecials
  \catcode\{=1 % \catcode}=2 %
  @filesection
}{\endfilesection}{\ignorespaces%}%
%=================================================================================
% Begin of code for removing one leading and one trailing explicit
% <carriage-return>-character-token of catcode 12(other) from verbatimized
% argument
%=================================================================================
@ifdefinable\UD@stopromannumeral{\chardef\UD@stopromannumeral=`^^00}%
%%-----------------------------------------------------------------------------
%% Check whether argument is empty:
%%.............................................................................
%% \UD@CheckWhetherNull{<Argument which is to be checked>}%
%%                     {<Tokens to be delivered in case that argument
%%                       which is to be checked is empty>}%
%%                     {<Tokens to be delivered in case that argument
%%                       which is to be checked is not empty>}%
%%
%% The gist of this macro comes from Robert R. Schneck's \ifempty-macro:
%% <https://groups.google.com/forum/#!original/comp.text.tex/kuOEIQIrElc/lUg37FmhA74J>
\newcommand\UD@CheckWhetherNull[1]{%
  \romannumeral\expandafter@secondoftwo\string{\expandafter
  @secondoftwo\expandafter{\expandafter{\string#1}\expandafter
  @secondoftwo\string}\expandafter@firstoftwo\expandafter{\expandafter
  @secondoftwo\string}\expandafter\UD@stopromannumeral@secondoftwo}{%
  \expandafter\UD@stopromannumeral@firstoftwo}%
}%
%%-----------------------------------------------------------------------------
\begingroup
@makeother^^M%
@firstofone{%
  \endgroup%
  %%=============================================================================
  %% Check whether_verbatimized_ argument has a leading explicit
  %% <carriage-return>-character-token of catcode 12(other):
  %%-----------------------------------------------------------------------------
  %% \UD@CheckWhetherLeadingCarriageReturn{<Argument which is to be checked>}%
  %%                                      {<Tokens to be delivered in case
  %%                                       <argument which is to be checked>'s
  %%                                       1st token is an explicit <carriage-
  %%                                       return>-character-token of
  %%                                       catcode 12(other)>}%
  %%                                      {<Tokens to be delivered in case
  %%                                       <argument which is to be checked>'s
  %%                                       1st token is not an explicit
  %%                                       <carriage-return>-character-token of
  %%                                       catcode 12(other)>}%
  \newcommand\UD@CheckWhetherLeadingCarriageReturn[1]{%
    \UD@@CheckWhetherLeadingCarriageReturn\UD@SelDom#1\UD@SelDom^^M\UD@@SelDom%
  }%
  @ifdefinable\UD@@CheckWhetherLeadingCarriageReturn{%
    \long\def\UD@@CheckWhetherLeadingCarriageReturn#1\UD@SelDom^^M#2\UD@@SelDom{%
      \UD@CheckWhetherNull{#2}{@secondoftwo}{@firstoftwo}%
    }%
  }%
  %%-----------------------------------------------------------------------------
  %% Check whether_verbatimized_ argument having a leading explicit <carriage-
  %% return>-character-token of catcode 12(other) consists only of such tokens:
  %%-----------------------------------------------------------------------------
  %% \UD@CheckWhetherOnlyCarriageReturn{<Argument which is to be checked and
  %%                                    which is known to have a leading explicit
  %%                                    <carriage-return>-character-token of
  %%                                    catcode 12(other)>}%
  %%                                   {<Tokens to be delivered in case <argument
  %%                                    which is to be checked> consists only
  %%                                    of explicit <carriage-return>-character-
  %%                                    tokens of catcode 12(other)>}%
  %%                                   {<Tokens to be delivered in case <argument
  %%                                    which is to be checked> does not consist
  %%                                    only of explicit <carriage-return>-
  %%                                    character-tokens of catcode 12(other)>}%
  \newcommand\UD@CheckWhetherOnlyCarriageReturn[1]{%
    \UD@CheckWhetherLeadingCarriageReturn{#1}{%
      \expandafter\UD@CheckWhetherOnlyCarriageReturn%
      \expandafter{\UD@@TrimLeadingCarriageReturn#1}%
    }{%
      \UD@CheckWhetherNull{#1}{@firstoftwo}{@secondoftwo}%
    }%
  }%
  %%-----------------------------------------------------------------------------
  %% Remove one leading explicit <carriage-return>-character-token of
  %% catcode 12(other) from verbatimized argument:
  %%-----------------------------------------------------------------------------
  @ifdefinable\UD@@TrimLeadingCarriageReturn{%
    \long\def\UD@@TrimLeadingCarriageReturn^^M{}%
  }%
  %%-----------------------------------------------------------------------------
  %% Check whether_verbatimized_ argument has a trailing explicit
  %% <carriage-return>-character-token of catcode 12(other):
  %%-----------------------------------------------------------------------------
  %% \UD@CheckWhetherTrailingCarriageReturn{<Argument which is to be checked>}%
  %%                                      {<Tokens to be delivered in case
  %%                                       <argument which is to be checked>'s
  %%                                       last token is an explicit <carriage-
  %%                                       return>-character-token of
  %%                                       catcode 12(other)>}%
  %%                                      {<Tokens to be delivered in case
  %%                                       <argument which is to be checked>'s
  %%                                       last token is not an explicit
  %%                                       <carriage-return>-character-token of
  %%                                       catcode 12(other)>}%
  \newcommand\UD@CheckWhetherTrailingCarriageReturn[1]{%
    \UD@@CheckWhetherTrailingCarriageReturn#1\UD@SelDom^^M\UD@SelDom\UD@@SelDom%
  }%
  @ifdefinable\UD@@CheckWhetherTrailingCarriageReturn{%
    \long\def\UD@@CheckWhetherTrailingCarriageReturn#1^^M\UD@SelDom#2\UD@@SelDom{%
      \UD@CheckWhetherNull{#2}{@secondoftwo}{@firstoftwo}%
    }%
  }%
  %%-----------------------------------------------------------------------------
  %% Remove one trailing explicit <carriage-return>-character-token of
  %% catcode 12(other) from verbatimized argument:
  %%-----------------------------------------------------------------------------
  \newcommand\UD@TrimTrailingCarriageReturn[1]{%
     \UD@@TrimTrailingCarriageReturn#1\UD@SelDom%
  }%
  @ifdefinable\UD@@TrimTrailingCarriageReturn{%
    \long\def\UD@@TrimTrailingCarriageReturn#1^^M\UD@SelDom{#1}%
  }%
  %%-----------------------------------------------------------------------------
  %% Remove one leading and one trailing explicit <carriage-return>-character-
  %% token of catcode 12(other) from verbatimized argument if present.
  %% In the edge case of the verbatimized argument consisting only of explicit
  %% <carriage-return>-character-tokens of catcode 12(other) remove only one of
  %% them.
  %% Due to \romannumeral-expansion the result is delivered in 2 expansion-steps:
  %%-----------------------------------------------------------------------------
  \newcommand\UD@RemoveLeadingNTrailingCarriageReturn[1]{%
    \romannumeral%
    \UD@CheckWhetherLeadingCarriageReturn{#1}{%
      \UD@CheckWhetherTrailingCarriageReturn{#1}{%
         \UD@CheckWhetherOnlyCarriageReturn{#1}{%
           \expandafter\UD@stopromannumeral\UD@@TrimLeadingCarriageReturn#1%
         }{%
           \expandafter\expandafter\expandafter\expandafter\expandafter%
           \expandafter\expandafter\UD@stopromannumeral\expandafter%
           \UD@TrimTrailingCarriageReturn\expandafter{\UD@@TrimLeadingCarriageReturn#1}%
         }%
      }{%
        \expandafter\UD@stopromannumeral\UD@@TrimLeadingCarriageReturn#1%
      }%
    }{%
      \UD@CheckWhetherTrailingCarriageReturn{#1}{%
        \expandafter\expandafter\expandafter\UD@stopromannumeral%
        \UD@TrimTrailingCarriageReturn{#1}%
      }{\UD@stopromannumeral#1}%
    }%
  }%
}%
%================================================================================
% End of code for removing one leading and one trailing explicit
% <carriage-return>-character-token of catcode 12(other) from verbatimized
% argument
%================================================================================
%///// end of code that could go into a package / .sty-file////////////////////
\makeatother


\begin{document}


\noindent
\inputfilesection{FileWithSections.tex}{First Section}


\noindent\hrule\null


\noindent
\inputfilesection{FileWithSections.tex}{Second Section}


\noindent\hrule\null


\noindent
\inputfilesection{FileWithSections.tex}{Third Section}


\noindent\hrule\null


\noindent
\inputfilesection{FileWithSections.tex}{First Section}


\noindent\hrule\null


\noindent
\inputfilesection{FileWithSections.tex}{Second Section}


\noindent\hrule\null


\noindent
\inputfilesection{FileWithSections.tex}{Third Section}


\end{document}

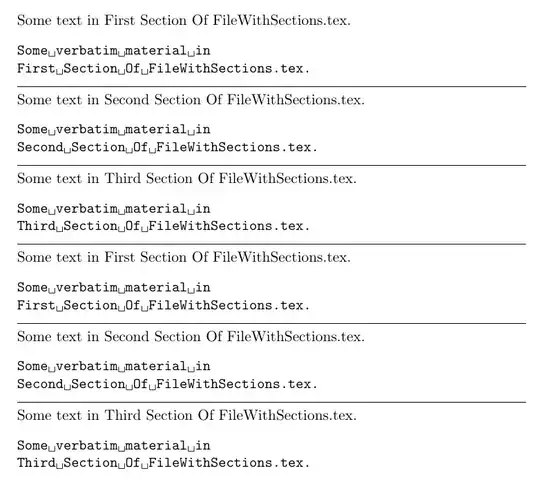

enter image description here

Ulrich Diez
  • 28,770
