I have these four tikspicture plots as subfigures. I want to have the axes aligned as well as the subcaptions (a,b,c,d). Also, I want the plots to have the same size and the subcaption letters to be centered underneath each plot. Another problem seems to be that the plots are to close to the margin on the right-hand side.

Thank you very much for any help!

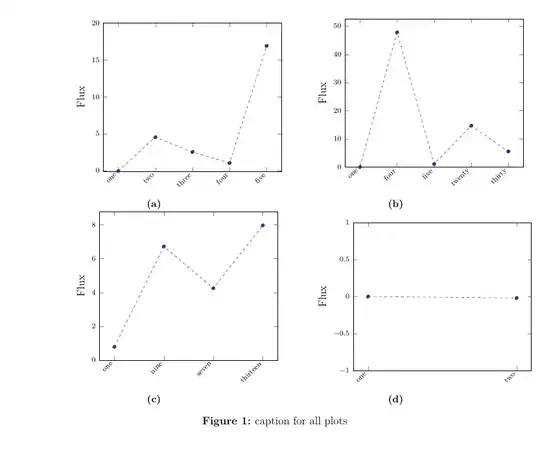

enter image description here

\documentclass[
    12pt,
    a4paper,
    parskip=half,
    toc=bibliography,
    numbers=noendperiod
    ]{scrbook}

\usepackage[
left=3cm,
right=2.5cm,
top=2.5cm,
bottom=2.0cm,
includehead,
includefoot
]{geometry}

\usepackage[UKenglish]{babel}
\usepackage[T1]{fontenc}
\usepackage[utf8]{inputenc}

\usepackage{scrlayer-scrpage}
\usepackage{lmodern}
\usepackage{textcomp}
\usepackage{amsmath,amssymb}
\usepackage{mwe}
\usepackage{esvect}
\usepackage{mathfixs}
\usepackage[right]{eurosym}
\usepackage{gensymb}
\usepackage[dvipsnames,table,xcdraw]{xcolor}
\usepackage{graphicx}
\usepackage{subcaption}
\usepackage{float}
\usepackage{caption}
\usepackage{pgfplots}
\pgfplotsset{compat=newest}
\addtokomafont{caption}{\scriptsize}
\usepackage[font={normal}]{caption}
\setkomafont{captionlabel}{\bfseries\rmfamily}


\begin{document}

\begin{figure}[H]
    \begin{subfigure}{0.4\linewidth}
        \begin{tikzpicture}[baseline]
            \begin{axis}[
                xticklabels={one, two, three, four, five},
                tick label style={font=\scriptsize},
                x tick label style = {rotate=45, anchor=east},
                ylabel={Flux},
                ymin=-0.05,
                ymax=20,
                xtick={1,2,3,4,5},
                ]
                \addplot[color=Blue, mark=*, dashed]
                coordinates {(1,-0.03)(2,4.55)(3,2.55)(4,1.06)(5,16.91)};
            \end{axis}
        \end{tikzpicture}
        \caption{ }
    \end{subfigure}
\hfill
    \begin{subfigure}{0.4\linewidth}
        \begin{tikzpicture}
            \begin{axis}[
                xticklabels={one, four, five, twenty, thirty},
                tick label style={font=\scriptsize},
                x tick label style = {rotate=45, anchor=east},
                ylabel={Flux},
                ymin=0,
                xtick={1,2,3,4,5},
                legend pos=outer north east,
                legend cell align={left}
                ]
                \addplot[color=Blue, mark=*, dashed]
                coordinates {(1,0.00)(2,47.77)(3,1.10)(4,14.68)(5,5.53)};
            \end{axis}
        \end{tikzpicture}
        \caption{ }
    \end{subfigure}
\vfill
    \begin{subfigure}{0.4\linewidth}
        \begin{tikzpicture}
            \begin{axis}[
                xticklabels={one, nine, seven, thirteen},
                tick label style={font=\scriptsize},
                x tick label style = {rotate=45, anchor=east},
                ylabel={Flux},
                ymin=0,
                xtick={1,2,3,4},
                legend pos=outer north east,
                legend cell align={left}
                ]
                \addplot[color=Blue, mark=*, dashed]
                coordinates {(1,0.78)(2,6.72)(3,4.25)(4,7.97)};
            \end{axis}
        \end{tikzpicture}
        \caption{ }
    \end{subfigure}
\hfill
    \begin{subfigure}{0.4\linewidth}
        \begin{tikzpicture}
            \begin{axis}[
                xticklabels={one, two},
                tick label style={font=\scriptsize},
                x tick label style = {rotate=45, anchor=east},
                ylabel={Flux},
                ymin=-1,
                ymax=1,
                xtick={1,2},
                legend pos=outer north east,
                legend cell align={left}
                ]
                \addplot[color=Blue, mark=*, dashed]
                coordinates {(1,0.00)(2,-0.02)};
            \end{axis}
        \end{tikzpicture}
        \caption{ }
    \end{subfigure}
    \caption{caption for all plots}
    \label{all_plots}
\end{figure}


\end{document}
Zarko
  • 296,517
Fantastic MsFox
  • 137
  • 1
    When you ask a question here, you can find on the right side a Related section where sometimes you could find answers or at least leads to an answer. For example, in this case, you have (https://tex.stackexchange.com/questions/191160/how-can-i-align-2-plots-vertically?rq=1) and (https://tex.stackexchange.com/questions/191865/aligning-multiple-figures-tikzpicture-vertically-and-horizontally?rq=1). – SebGlav Jul 25 '23 at 17:11
  • 1
    Welcome. // One part of your problem is that a) size of outer bounds vary (must be the same), b) plotsize varies (must be the same), c) space/rectangle needed left and below to put all labels varies (must be the same). // To reduce distration, and sometimes side effects, I highly recommend to delete packages etc., which are not needed for this question. // Once you solved the layout issue to obtain 4 identical plot layouts, which aren't right now, turn to the problem to position images with subcaptions (or treat that one separately and join both approaches later). – MS-SPO Jul 25 '23 at 19:59
  • 1
    Does this answer your question? How can I align 2 plots vertically? – Dr. Manuel Kuehner Jul 25 '23 at 22:59
  • Does this answer your question? Aligning multiple figures/tikzpicture vertically and horizontally – cabohah Jul 26 '23 at 06:50
  • 1
    Wrt. closing this question, the duplicates on alignment address a point of minor importance. I.e. adopting these won't make the diagrams look right. See my previous comment and Zarko's solution. // Relevant is the layout of the pgfplots themselves. – MS-SPO Jul 26 '23 at 08:31

1 Answers1

3

Something like this:

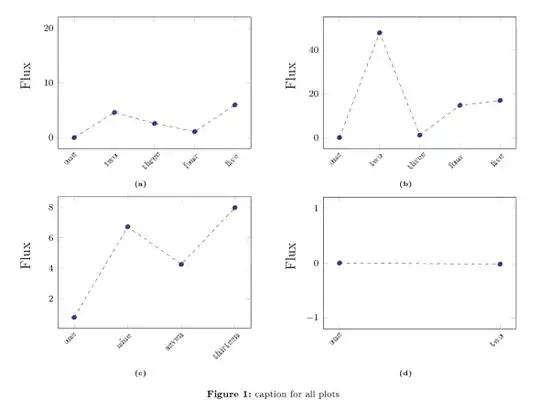

enter image description here
