3

I am wondering whether there would be a simpler way to get a similar figure: (1) avoid adjusting by hand the size of each coloured box, (2) avoid computing by hand the middle of each box from which the arrows are drawn.

\documentclass{book}
\usepackage{tikz}
\usetikzlibrary{calc}

\def\constraint#1{\textsc{#1}}

\begin{document}

\begin{tikzpicture}
\node (ctr) {$\constraint{increasing\_max\_peak}$};
\fill[brown!20]  ($(ctr.south west)+(0.1,0)$)  rectangle ($(ctr.north west)+(2.07,0)$);
\fill[pink!20]   ($(ctr.south west)+(2.07,0)$) rectangle ($(ctr.north west)+(2.9,0)$);
\fill[violet!20] ($(ctr.south west)+(2.9,0)$)  rectangle ($(ctr.north east)-(0.1,0)$);
\node (ctr1) {$\constraint{increasing\_max\_peak}$};
\draw[->] ($(ctr.south west)+(1.085,0)$) -- ($(ctr.south west)+(1.085,-0.7)$) node[below] {\scriptsize \constraint{Condition}};
\draw[->] ($(ctr.south west)+(2.485,0)$) -- ($(ctr.south west)+(2.485,-0.3)$) node[below] {\scriptsize \constraint{Feature}};
\draw[->] ($(ctr.south west)+(3.35,0)$) -- ($(ctr.south west)+(3.35,-0.7)$) node[below] {\scriptsize \constraint{Pattern}};
\end{tikzpicture}

\end{document}

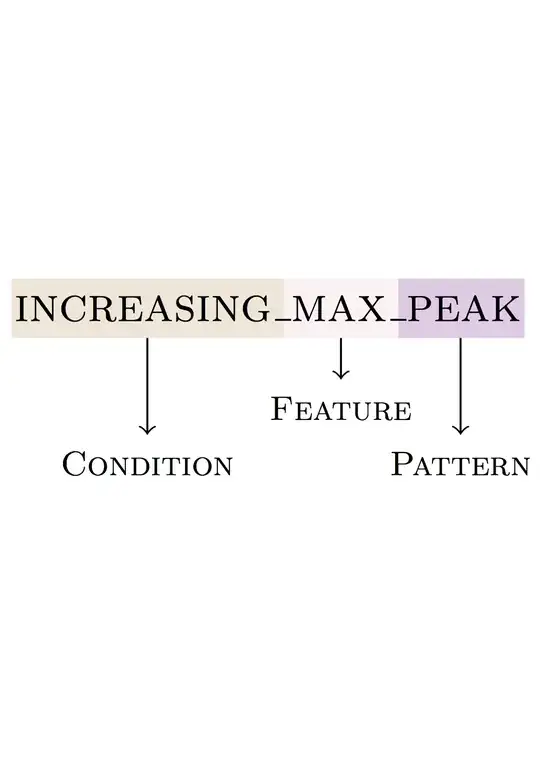

enter image description here

Nicolas Beldiceanu
  • 727

1 Answers1

3

You could for example use \subnodes from the tikzmark library. Note this requires the addition of the remember picture option to the tikzpicture environment. That lets you use the anchors of the subnodes to draw the boxes and arrows.

You could also make use of the backgrounds library to avoid having to draw the same node twice.

enter image description here

\documentclass[border=5mm]{standalone}
\usepackage{tikz}
\usetikzlibrary{
  tikzmark,
  backgrounds
}

\newcommand\constraint[1]{\textsc{#1}}

\begin{document}

\begin{tikzpicture}[remember picture]
\node (ctr) {$\constraint{\subnode{i}{increasing}\subnode{a}{\_}\subnode{m}{max}\subnode{b}{\_}\subnode{p}{peak}}$};
\begin{scope}[on background layer]
  \fill[brown!20] (i.north west) rectangle (a.south);
  \fill[pink!20] (a.south) rectangle (m.north east);
  \fill[violet!20] (b.north |- p.north) rectangle (p.south  east);
\end{scope}

\begin{scope}[
  every node/.append style={font=\scriptsize}
]
  \draw [->] (i.south) -- ++(0,-0.7) node[below] {\constraint{condition}};
  \draw [->] (m.south) -- ++(0,-0.4) node[below] {\constraint{feature}};
  \draw [->] (p.south) -- ++(0,-0.7) node[below] {\constraint{pattern}};
\end{scope}

\end{tikzpicture}

\end{document}
Torbjørn T.
  • 206,688
