Tree of logic puzzle

Question

I want to build a tree of the 8-puzzle. By using logicpuzzle and forest I got to this point:

\documentclass{article}
\usepackage{logicpuzzle}
\usepackage{forest}
\newenvironment{eight}[1][]{%
\begin{logicpuzzle}[rows=3,columns=3,#1]
\begin{puzzleforeground}
\framepuzzle
\end{puzzleforeground}
}{\end{logicpuzzle}}
\begin{document}
\begin{forest}
[\begin{eight}
\setrow{3}{1,4,2}
\setrow{2}{6,,5}
\setrow{1}{7,3,8}
\end{eight}
[\begin{eight}
\setrow{3}{1,4,2}
\setrow{2}{,6,5}
\setrow{1}{7,3,8}
\end{eight}
\begin{eight}
\setrow{3}{1,,2}
\setrow{2}{6,4,5}
\setrow{1}{7,3,8}
\end{eight}
\begin{eight}
\setrow{3}{1,4,2}
\setrow{2}{6,5,}
\setrow{1}{7,3,8}
\end{eight}
\begin{eight}
\setrow{3}{1,4,2}
\setrow{2}{6,3,5}
\setrow{1}{7,,8}
\end{eight}]]
\end{forest}
\end{document}

But the result I get has these problems:

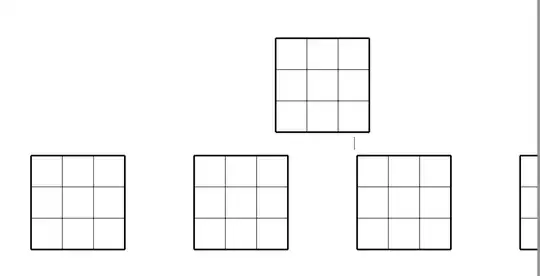

• The numbers don't appear inside the grid
• The lines connecting the starting configuration to the next four are not displayed correctly
• The whole drawing is shifted to the right and gets out of the page

Answer 1

This code helps to solve the issues.

The geometry package helps to set better margins for the tree and fit it on the page. Also added scale=0.9, width= 3cm, to control the size of the puzzles and their separation.

The next row will have 12 puzzles. Try \documentclass[landscape]{article}.

\begin{forest}for tree={l sep=4em} adds extra vertical space from the parent node.

Saving the environment eight in boxes and the using them to build the tree solves the problem of the disappearing numbers (and simplifies the code of the tree).

\documentclass{article}
\usepackage[left=3.00cm, right=3.00cm, top=4.00cm, bottom=3.00cm]{geometry}
\usepackage{logicpuzzle}
\usepackage{forest}
\newenvironment{eight}[1][]{%
    \begin{logicpuzzle}[rows=3,columns=3, scale=0.9, width= 3cm, #1]
        \begin{puzzleforeground}
            \framepuzzle

    }{\end{puzzleforeground}\end{logicpuzzle}}
\newsavebox{\tempi}
\newsavebox{\tempii}
\newsavebox{\tempiii}
\newsavebox{\tempvi}
\newsavebox{\tempv}
\sbox{\tempi}{%
\begin{eight}
    \setrow{3}{1,4,2}
    \setrow{2}{6,,5}
    \setrow{1}{7,3,8}
\end{eight}
}
\sbox{\tempii}{%
\begin{eight}
    \setrow{3}{1,4,2}
    \setrow{2}{,6,5}
    \setrow{1}{7,3,8}
\end{eight}
}
\sbox{\tempiii}{%
\begin{eight}
    \setrow{3}{1,,2}
    \setrow{2}{6,4,5}
    \setrow{1}{7,3,8}
\end{eight}
}
\sbox{\tempvi}{%
\begin{eight}
    \setrow{3}{1,4,2}
    \setrow{2}{6,5,}
    \setrow{1}{7,3,8}
\end{eight}
}
\sbox{\tempv}{%
\begin{eight}
    \setrow{3}{1,4,2}
    \setrow{2}{6,3,5}
    \setrow{1}{7,,8}
\end{eight}
}
\begin{document}
    \centering
    \begin{forest}for tree={l sep=4em}
        [\usebox{\tempi}
        [\usebox{\tempii}][\usebox{\tempiii}][\usebox{\tempvi}][\usebox{\tempv}]
        ]
    \end{forest}
\end{document}
