Dynamic Linkage of LocatorPane and InputField

Question

How do I get the InputField to coordinate with the LocatorPane so that a change in each control changes the other to be in agreement? It would be nice if the function was self-contained and was dynamically linked to a second similar control where the variable is radians. The angle control is based on this (see Applications). Related links do not address or solve this particular issue; links such as this this, and this

 fDeg[Dynamic[angleDeg_]] :=
   DynamicModule[{p, angleRad, angleCalc, dtr = Degree},

    angleCalc[newp_,
      oldp_] := (angleRad =
       angleRad + ArcCos[newp.oldp] Sign[Cross[newp].(newp - oldp)];
      If[0 < angleRad, angleRad = Mod[angleRad, +2*Pi]];
      If[0 > angleRad, angleRad = Mod[angleRad, -2*Pi]];
      angleDeg = angleRad/dtr;
      f[angleDeg];
      p = {Cos[angleRad], Sin[angleRad]});

    angleRad = angleDeg*dtr;
    p = {Cos[angleRad], Sin[angleRad]};

    LocatorPane[Dynamic[p, (angleCalc @@ Normalize /@ {#, p}) &],
     Dynamic@Show[
       Graphics[{Circle[], Arrowheads[0.15],
         Arrow[Dynamic[{{0, 0}, p}]]}, ImageSize -> Tiny],
       Graphics[{Dynamic[{Text[
            NumberForm[angleDeg, {3, 2}], {0, 0}]}]}]],
     Appearance -> None]];

 aDeg = 45;

 Column[{
   "Degrees:",
   fDeg[Dynamic[aDeg]],
   "aDeg: ",
   InputField[Dynamic[aDeg],
    FieldSize -> 6]
   }, Alignment -> Center]

score 5 · Answer 1 · answered Mar 10 '19 at 22:14

Consider the following refactoring of your code

First, the locator pane is used to set a point location constrained on a circle with unit radius (this part borrowed heavily from an example in the documentation for LocatorPane). A degree value is then calculated from the coordinates of tha tpoint.

Secondly, the input field is used to read in a degree value, which is then used to update the position of the dynamic point pt using the second argument of Dynamic.

DynamicModule[
  {pt = {0, 1.}},
  Column[{
    "Degrees:", Dynamic[(ArcTan @@ pt)/Degree],
    LocatorPane[
      Dynamic[pt],
      Graphics[{
        Circle[],
        PointSize[Large],
        Dynamic[Arrow[{{0, 0}, pt/Norm[pt]}]]
      }],
      Appearance -> None
    ],
    InputField[
      Dynamic[(ArcTan @@ pt)/Degree, (pt = N@{Cos[#1 Degree], Sin[#1 Degree]}) &],
      FieldSize -> Tiny
    ]
    }, Alignment -> Center
  ]
]

This keeps both fields in sync with each other:

MarcoB. This is nice. But I was hoping for a self-contained function where only aDeg is passed. One reason for this is to allow aDeg to be altered elsewhere by some process such as a simulation of an automated flight control system. The controls (LocatorPane and InputField) would change accordingly. But the simulation could be interrupted by the user by means of the controls, and a new value input by the field or the dial. Any thoughts? — user48879, Mar 11 '19 at 02:25

kglr · Answer 2 · 2019-03-11T08:01:08.293

An alternative way to use Experimental`AngularSlider is to use a single dynamic variable and limit the angles to the range 0 to 360 using {0,360} as the second argument of AngularSlider:

DynamicModule[{z = 120},
 Column[{Experimental`AngularSlider[Dynamic[z], {0, 360},
   Experimental`BoundaryAction -> "Clip"],
   InputField[Dynamic[z], ImageSize -> {100, 24}, BaseStyle -> 16]},
  Alignment -> Center]]

To display angles in radians and degrees and allow the slider to move around the clock:

DynamicModule[{z = 120},
 Panel @ Column[{Style["Degree", 16],
    Overlay[{Experimental`AngularSlider[Dynamic[z,(z = Round[#, 1]) &], {0, 360},
       Experimental`BoundaryAction -> "Wrap", ImageSize -> 200],
      Graphics[{Text[Framed[Style[Dynamic[Round[z,1]] °, 16], FrameStyle -> None],
         Scaled @ {3/4, 4/10}, {-1, 1}],
       Text[Framed[Style[Dynamic[Round[z Degree, Pi/2^7] ], 16], FrameStyle -> None],
        Scaled @ {3/4, 4/10}, {-1, -1}]}]}, All, 1],
    InputField[Dynamic[z, (z = Round[#, 1]) &], ImageSize -> {100, 24}, BaseStyle -> 16]},
   Alignment -> Center]]

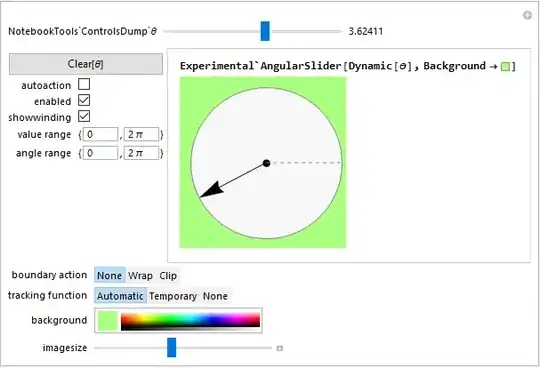

If you want to play with various options of Experimental`AngularSlider you can use

NotebookTools`AngularSliderTest[]

score 2 · Answer 3 · answered Mar 11 '19 at 07:05

Here is a simplified demo linking an InputField[] with Experimental`AngularSlider[]:

DynamicModule[{x = 0., u = 0.},
              Column[{Experimental`AngularSlider[Dynamic[x, (x = #; u = x/Degree) &]],
                      InputField[Dynamic[u, (u = #; x = u Degree) &], Number]}]]

linking AngularSlider and InputField

Clicking on the AngularSlider[] updates the value in the InputField[], and entering a (degree) value in the InputField[] moves the slider to the specified angle.

score 0 · Accepted Answer · answered Mar 11 '19 at 16:22

I think the following code solves the issue, though I’m not sure exactly why it works but the other didn't. Note that the function is self-contained, and that the InputField should be placeable in a separate part of an application. Also note the added features. The next step would be to make a function for radians and link the 2 controls.

 DynamicModule[{gSquare, dtr, rtd, AngularControlDegFnc01,
   AngularControlRadFnc01, aDeg, aRad, ShowDeg},

  AngularControlDegFnc01[Dynamic[aDegArg_]] := DynamicModule[
    {
     aRadH,
     dtrH = Pi/180., rtdH = 180./Pi,
     Pi2H = 2*Pi, icrH = .25, thH = 0.01, athH = 0.017,
     c1H = RGBColor[.8, .5, .5], c2H = RGBColor[.5, .5, .8],
     pH, pCalcH, aCalcH, cCalcH, mCalcH, wCalcH, rCalcH
     },

    rCalcH[] := aRadH = aDegArg*dtrH;
    wCalcH[] := {icrH*pCalcH[], pCalcH[]};
    pCalcH[] := pH = {Cos[aRadH], Sin[aRadH]};
    cCalcH[] := If[Sign[aRadH] == -1, Return[c1H], Return[c2H]];
    mCalcH[] := Block[{},
      If[0 < aRadH, aRadH = Mod[aRadH, +Pi2H]];
      If[0 > aRadH, aRadH = Mod[aRadH, -Pi2H]];];
    aCalcH[newpArg_, oldpArg_] := Block[{},
      aRadH =
       aRadH + ArcCos[newpArg.oldpArg]*
         Sign[Cross[newpArg].(newpArg - oldpArg)];
      aDegArg = aRadH*rtdH;
      mCalcH[];
      pCalcH[]];

    rCalcH[];
    pCalcH[];

    LocatorPane[Dynamic[pH, (aCalcH @@ Normalize /@ {#, pH}) &],
     Dynamic[ShowDeg = Show[{
         Graphics[{cCalcH[], Disk[{0, 0}, 1, {0, rCalcH[]}]}],
         Graphics[{Black, Thickness[thH], Line[{{0, 0}, {1, 0}}]}],
         Graphics[{GrayLevel[.8], Disk[{0, 0}, icrH]}],
         Graphics[{Thickness[thH], Circle[{0, 0}, icrH]}],
         Graphics[{Black, Thickness[1.5*thH], Circle[]}],
         Graphics[{Black, Thickness[athH], Arrowheads[5*athH],
           Arrow[wCalcH[]]}],
         Graphics[{Dynamic[{Text[
              NumberForm[Round[aDegArg, 0.01], {3, 1}], {0, 0}]}]}]},
        ImageSize -> 150]

      ], Appearance -> None]
    ];

  gSquare =
   Graphics[{Gray, Thick,
     Line[1.4*{{-1, -1}, {-1, +1}, {+1, +1}, {+1, -1}, {-1, -1}}]}];
  dtr = Pi/180.;
  rtd = 180./Pi;
  aDeg = 45;
  aRad = aDeg*dtr;

  Manipulate[
   Dynamic@Show[{ShowDeg, gSquare}, ImageSize -> 150],
   Row[{
     Column[{
       AngularControlDegFnc01[Dynamic[aDeg]],
       Row[{"aDeg: ", InputField[Dynamic[aDeg], FieldSize -> 6]}]
       }]
     }],
   ControlPlacement -> Left
   ]
  ]
