  1. I am new to Mathematica and would like to find the set $$\{ (x,y) \in \mathbb{R}^2: (3x+y\exp(xy))(x-a) + (6y + x \exp(xy))(y-b) < 0 \}$$ for some constants $a$ and $b$. How can I do this? Added: Is the set empty when a=-1.0643 and b=0.150?
  2. My actual question may be more difficult. For this function $f:\mathbb{R}^2 \to \mathbb{R}$, defined as $$ f(x,y) := (3x+y\exp(xy))(x-a) + (6y + x \exp(xy))(y-b) $$ I would like to know its range $f(\mathbb{R}^2)$, or better yet $f(\mathbb{R}^2 - \{(a,b)\})$, or as close as possible. Can it be done in Mathematica as well?
Sasha
  • 7,373
  • 36
  • 47
Tim
  • 317
  • 3
  • 8
  • Is the set Finite? If so use the function FindInstance or use Solve or NSolve:

    http://reference.wolfram.com/mathematica/ref/FindInstance.html?q=FindInstance&lang=en

    If the set is not finite, then please clarify what you mean by "finding the set".

    – Searke Mar 13 '12 at 21:47
  • @Searke: I have no idea if the set is finite, or empty. That is part of my questions too. – Tim Mar 13 '12 at 21:48
  • Can you describe what you would like to do as you would do it by hand on a chalkboard or with a different piece of software? – Searke Mar 13 '12 at 21:53
  • If you are asking me how I do it by hand, I can tell you I will be stuck. If you are asking me why I want to know the result, my part 2 explains that, I think. – Tim Mar 13 '12 at 21:59
  • Please also include the expressions in correct Mathematica syntax. It is appreciated if you include formatted math for readability, but it is important to also have directly copyable code. – Szabolcs Mar 14 '12 at 05:59

2 Answers2

9

[Please please please...post actual cut-and-pastable code.]

Here is a method that is, unfortunately, impractical. But it sometimes gives results if you are patient.

isEmpty[a_?NumericQ, b_?NumericQ] := Module[{finst},
  finst =
   FindInstance[(3*x + y Exp[x*y])*(x \[Minus] a) + (6*y +
         x*Exp[x*y])*(y \[Minus] b) < 0, {x, y}];
  If[ListQ[finst],
   If[Length[finst] == 0, True, False]
   , $Failed]
  ]

In[306]:= isEmpty[1, 3]

Out[306]= False

Here is a start on a method that uses contpur plotting. One must settle for a finite range on {x,y} for this; I use -+10 for both.

isEmpty2[a_?NumericQ, b_?NumericQ] := Module[{cplot},
  cplot =
   ContourPlot[(3*x + y Exp[x*y])*(x \[Minus] a) + (6*y +
         x*Exp[x*y])*(y \[Minus] b) == 0, {x, -10, 10}, {y, -10, 10},
    ContourShading -> False, Frame -> None]
  ]

It just gives a picture but i guess those better versed in Mathematica's Graphics might be able to extract at True/False therefrom. It would of course not be a guaranteed resutl, since plotting uses numeric approximation methods.

It gives a nice result for a=-4, b=-1.

enter image description here

--- edit ---

A comment asks about a specific set of inputs for {a,b}. Not one to duck such a test, I'll show a result with FindRoot. Here we find an {x,y} pair for which the expression of interest is negative (equal to -0.2), by setting y first to 0. I did this because the contour plot indicated there was a negative region in that general vicinity.

In[339]:= FindRoot[((3*x + y Exp[x*y])*(x - a) + (6*y +
        x*Exp[x*y])*(y - b) /. {a -> -1.0643, b -> -.15,
     y -> 0.}) == -.2, {x, .1}]

Out[339]= {x -> -0.0634401}

--- end edit ---

Brett Champion
  • 20,779
  • 2
  • 64
  • 121
Daniel Lichtblau
  • 58,970
  • 2
  • 101
  • 199
  • Thanks! Is the set empty when a=-1.0643 and b=0.150? – Tim Mar 13 '12 at 22:09
  • @Tim No, not empty. isEmpty2[1.0643, .15] indicates a small ovaline contour. Or something. (I don't suppose "ovaline" is a word.) – Daniel Lichtblau Mar 13 '12 at 22:12
  • @Daniel: a is negative. If it is nonempty, could you give an element of the set? – Tim Mar 13 '12 at 22:13
  • @Tim see edited response. – Daniel Lichtblau Mar 13 '12 at 22:24
  • @DanielLichtblau: Thanks! (a is negative and b positive). May I ask what "In[306]:= isEmpty[1, 3]" and "Out[306]= False" mean? Is the first one run the function isEmpty and return the false, true or failed value to the variable In[306]? What does 306 mean in both? – Tim Mar 13 '12 at 22:38
  • @Tim (I'll get it right eventually.) When b is +0.15 I get a root x -> -0.0706475. The In[306]/Out[306] is just Mathematica's way of denoting a computational input and evaluated result. – Daniel Lichtblau Mar 13 '12 at 22:42
6

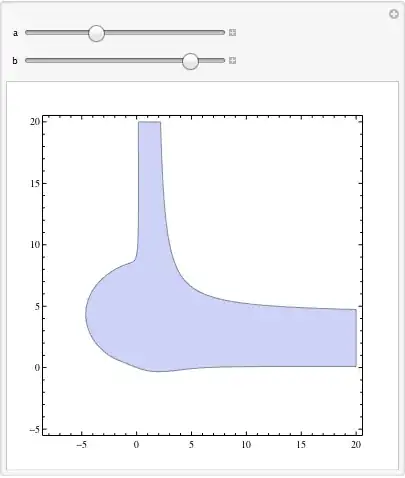

To get an indication of the region where your function is negative you could use RegionPlot. For example

ineq[x_, y_, a_, b_] :=
  ((3 x + y Exp[x y]) (x - a) + (6 y + x Exp[x y]) (y - b))

Manipulate[
 Show[RegionPlot[ineq[x, y, a, b] < 0, {x, -8, 20}, {y, -5, 20},
   ImagePadding -> 20, PlotPoints -> 30]],
 {a, 0, 10},
 {b, 0, 10}]

Mathematica graphics

Heike
  • 35,858
  • 3
  • 108
  • 157
