Functional defined Ticks of LogLinearPlot does not work

Question

Bug introduced in 10.0 and fixed in 12.0

version 10

$Version

"10.0 for Microsoft Windows (64-bit) (June 29, 2014)"

Consider three cases in LogLinearPlot's option Ticks:

findDivisions[{x1_, x2_}, n_] := FindDivisions[-Log[10, #] & /@ {x1, x2}, n]
myTicks[x1_, x2_] := {10^-#, #} & /@ findDivisions[{x1, x2}, 10]

p1 = LogLinearPlot[Log[10, x], {x, 10^-10, 10},
   Ticks -> {myTicks[10^-10, 10], Automatic}];
p2 = LogLinearPlot[Log[10, x], {x, 10^-10, 10},
   Ticks -> {myTicks, Automatic}];
p3 = LogLinearPlot[Log[10, x], {x, 10^-10, 10},
   Ticks -> {Function[{x1, x2}, {10^-#, #} & /@
       findDivisions[{x1, x2}, 10]], Automatic}];

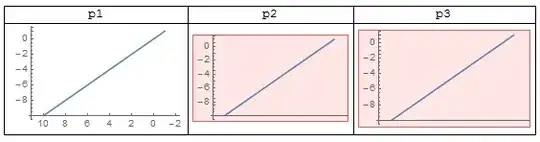

Grid[{{"p1", "p2", "p3"}, {p1, p2, p3}}, Frame -> All]

p1 is right.

p2 is wrong with message "Tick specification must be a list or a function".

p3 is wrong with FindDivisions's error.

this is related.

version 9

$Version

"9.0 for Microsoft Windows (32-bit) (January 24, 2013)"

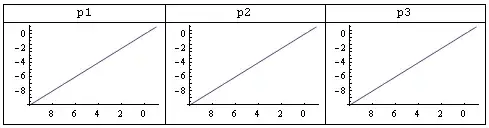

All three cases well worked!

The same behavior in v.10.0.1. It is a bug: clear contradiction to the Documentation. — Alexey Popkov, Oct 30 '14 at 17:40

Alexey Popkov · Accepted Answer · 2014-11-09T20:17:25.217

Let us see how LogPlot in Mathematica 10.0.1 handles the default and custom Ticks specifications for the log-axis:

Options[LogPlot[x^2, {x, 0, 10}], Ticks]
Options[LogPlot[x^2, {x, 0, 10}, Ticks -> {Automatic, f}], Ticks]
Options[LogPlot[x^2, {x, 0, 10}, Ticks -> {Automatic, f@## &}], Ticks]
Options[LogPlot[x^2, {x, 0, 10}, Ticks -> {Automatic, Range[10]^2}], Ticks]

{Ticks -> {Automatic, Charting`ScaledTicks[{Log, Exp}]}}
{Ticks -> {Automatic, VisualizationUtilitiesScalingDump`scaleTicks[{Log, Exp}, f]}}
{Ticks -> {Automatic, Charting`FindScaledTicks[(f[##1] &)[##1], {Log, Exp}] &}}
{Ticks -> {Automatic, {{0, 1}, {Log[4], 4}, {Log[9], 9}, {Log[16], 16},
    {Log[25], 25}, {Log[36], 36}, {Log[49], 49}, {Log[64], 64}, {Log[81], 81},
    {Log[100], 100}}}}

According to the Documentation page for Ticks, when the functional form is used it must accept two arguments. This means that Visualization`Utilities`ScalingDump`scaleTicks must have SubValues in order to function properly:

SubValues[Visualization`Utilities`ScalingDump`scaleTicks]

{}

There are no SubValues and the functional form returns unevaluated.

When pure function is used, we get evaluatable pure function Charting`FindScaledTicks[(f[##1] &)[##1], {Log, Exp}] &. Unfortunately, this function is implemented incorrectly - it must pass to f the plot range in the natural coordinate system (i.e. from 0.01 to 370) but instead it passes the actual plot range (i.e. from Log[0.01] to Log[370]):

Reap[Image@LogPlot[x^2, {x, 0, 10}, Ticks -> {Automatic, Sow[{##}] &}]][[2, 1]]
Exp[%]

{{-4.55639, 5.91396}}
{{0.0104999, 370.171}}

One workaround is to avoid functional Ticks inside of the *Log*Plot functions and move them in the outer Show. It requires another implementation of ticks-generating function as it is already made in the CustomTicks` package which currently continues development as a part of the SciDraw package:

<< CustomTicks`
Show[LogPlot[x^2, {x, 0, 10}], Ticks -> {Automatic, LogTicks}]

plot

Thank a lot for your detailed explanation. – Junho Lee Nov 02 '14 at 13:14 — Junho Lee, Nov 02 '14 at 13:14

score 3 · Answer 2 · answered Nov 02 '14 at 12:38

I agree this is an unfortunate situation. I guess you can pass x value range to plot and your desired division. For illustration only:

g[xmin_, xmax_] :=
 Table[{j,
    Style[Superscript[10, Log10[j]], Red, 12,
     ScriptSizeMultipliers -> 0.7,
     ScriptBaselineShifts -> 1.5], {0.03, 0}}, {j,
    PowerRange[xmin, xmax, 10]}] /.
  Style[Superscript[x_, a : (0 | 1)], b__] :>
   Style[Superscript[x^a, ""], b]
yt = Join[{#, #, {0.04, 0}} & /@ Range[-3, 3], {#, #, {0.02, 0}} & /@
    Range[-3.5, 3.5, 1]];

then

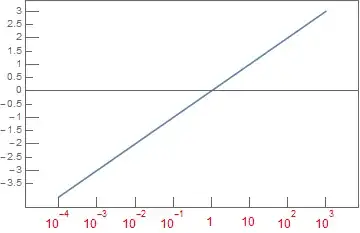

LogLinearPlot[Log10[x], {x, ##}, Frame -> True,
   FrameTicks -> {{yt, None}, {g[##], None}}] & @@ {1/10000, 1000}

enter image description here

but agree would be nice if functioned as it does in Plot

Thank you for an fine example about the Ticks – Junho Lee Nov 02 '14 at 13:21 — Junho Lee, Nov 02 '14 at 13:21

George Wolfe · Answer 3 · 2014-10-30T18:17:46.383

-3

In:

LogLinearPlot[Log[10, x], {x, 10^-10, 10},Ticks -> {myTicks, Automatic}];

myTicks is not evaluated to a list of anything; it's just a symbol. If you evaluate:

myTicks[10^-10, 10]

you get:

{{100, -2}, {1, 0}, {1/100, 2}, {1/10000, 4}, {1/1000000, 6}, {1/
 100000000, 8}, {1/10000000000, 10}}

which is a list. Don't know about Version 9, but The error message for p2 with Version 10 means exactly what it says. It seems that the code below supports my interpretation.

myTicks[x1_, x2_] := {10^-#, #} & /@ findDivisions[{x1, x2}, 10]
Head[myTicks]
Symbol

But, this does work:

myTicks[min_, max_] := Table[i, {i, Ceiling[min], Floor[max], 1}]
LogPlot[x^2, {x, 0, 10}, Ticks -> {myTicks, Automatic}]

edited Oct 30 '14 at 18:17

answered Oct 30 '14 at 17:25

George Wolfe

5,462
21
43

myTicks is a function. p2 is exactly right syntax. – Junho Lee Oct 30 '14 at 17:32
I don't think it's evaluated as a function without brackets and arguments. I tested it. But perhaps I made a mistake. – George Wolfe Oct 30 '14 at 17:33
myTicks is just a Symbol and it is well-documented way to specify a ticks generating function. The generation of the Ticks specification is made Dynamically by a callback from the FrontEnd to the Kernel. – Alexey Popkov Oct 30 '14 at 17:43
So, why doesn't p2 have the proper ticks? – George Wolfe Oct 30 '14 at 17:45
@GeorgeWolfe It is a bug in the log-plotting code. See here the documented and expected behavior. – Alexey Popkov Oct 30 '14 at 17:51
@AlexeyPopkov I found a tick function that does work with LogPlot. Why does this work? – George Wolfe Oct 30 '14 at 18:19
@GeorgeWolfe It works because in your example the function is applied only to the linear axis. The bug appears when you apply it to the log-axis: LogPlot[x^2, {x, 0, 10}, Ticks -> {Automatic, myTicks}]. – Alexey Popkov Oct 30 '14 at 18:30
