Increase 3D Graph thickness for 3D printing in Mathematica?

Question

My code:

Plot3D[{(2*x*y)/(x^2 + y^2)}, {x, -2, 2}, {y, -2, 2}]

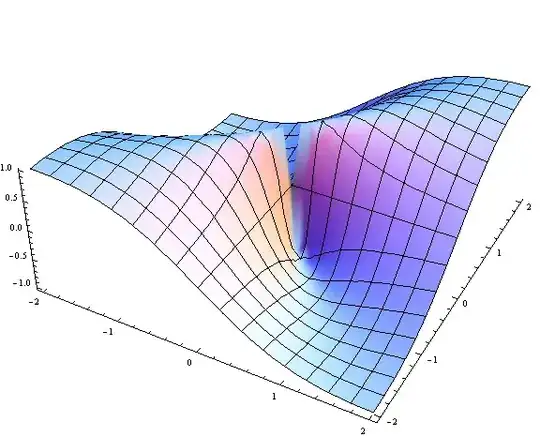

Output:

enter image description here

And now I can export this to STL by using the export STL command, however, when I try to print this on the MakerBot 3D printer there is a problem because the width of the graph is too thin. I need to increase the thickness of the width of the graph, can I do this in Mathematica?

I'm confused by your terminology. What do mean by "width" and "thickness"? I have no idea what dimension "width" refers to, and as for "thickness", a surface it infinitesimally thin by definition. — m_goldberg, Nov 24 '13 at 03:49
Here's an article about 3D printing from Mathematica... there are some tricks to take note of. http://www.segerman.org/3d_printing_notes.html — bill s, Nov 24 '13 at 04:20

score 22 · Answer 1 · answered Jul 16 '14 at 14:14

22

In version 10.0.0 the PlotStyle -> Thickness method shown by cormullion does not appear to work. Instead we can use the undocumented Extrusion option:

ContourPlot3D[x y z == 0.05, {x, -1, 1}, {y, -1, 1}, {z, -1, 1}, Extrusion -> 0.1]

enter image description here

answered Jul 16 '14 at 14:14

Simon Woods

84,945
8
175
324

3

Aaaaaaagh. They're supposed to add new features for new releases, not remove ones.. – cormullion Jul 16 '14 at 16:36
1

Which works in ContourPlot3D even though it's Red so unrecognized as an option but doesn't work and is rejected by ListContourPlot3D!!! Echoing Aaaaaaaagh. V. 10.1. – Ymareth Apr 03 '15 at 18:23
1

@Ymareth Seems Extrusion (still undocumented) works now also in ListContourPlot3D since v10.2. See this post – SquareOne Oct 29 '15 at 10:49
@Ymareth To avoid Red , Method -> {"Extrusion" -> .1} – cvgmt Sep 07 '23 at 08:49

Michael E2 · Answer 2 · 2013-11-24T14:29:03.573

You can take advantage of the VertexNormals that Plot computes to translate the surface a little to each side. I'm not sure just what is required for good STL output. I put a polygonal side all around the two surfaces. The VertexNormals are wrong for the sides, so I commented them out for the image presented.

The thickness is controlled by the parameter thickness.

With[{plot = Plot3D[{(2*x*y)/(x^2 + y^2)}, {x, -2, 2}, {y, -2, 2}, Mesh -> None]},
 With[{n0 = VertexNormals /. Cases[plot, HoldPattern[VertexNormals -> _], Infinity],
       thickness = 0.1},
  With[{pts = First @
         Cases[plot,
               GraphicsComplex[p_, e__] :> Flatten[{p - thickness n0, p + thickness n0}, 1],
               Infinity],
        vn = First @ Cases[plot, HoldPattern[VertexNormals -> v_] :> Join[v, v], Infinity]},
   Graphics3D[
    GraphicsComplex[
     pts,
     {EdgeForm[],
      Cases[plot, Polygon[p_] :> Polygon@Join[p, p + Length[pts]/2], Infinity],
      Cases[plot,
       Line[p_] :> Polygon[Join[#, Reverse@# + Length[pts]/2] & /@ Partition[p, 2, 1]],
       Infinity]}
     (*, VertexNormals -> vn *)
     ],
    PlotRange -> All,
    Options[plot]
    ]
   ]]]

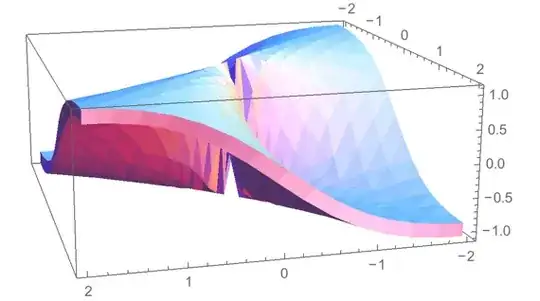

Graphics

This was a very detailed answer, and I appreciate you taking the time to write it. I chose the other only out of simplicity but I am sure your answer may have future benefits, thanks. — ratman2050, Nov 24 '13 at 23:22
Hey, no problem. The other way is definitely superior based on simplicity. Also, the other answer does what this one does and more. — Michael E2, Nov 24 '13 at 23:26

cormullion · Accepted Answer · 2014-07-16T16:52:22.743

16

Try this:

Plot3D[{(2*x*y)/(x^2 + y^2)}, {x, -2, 2}, {y, -2, 2},
 PlotStyle -> Thickness[1]]

thick

And remember to watch your units - if you print in millimetres, 1 is a bit small...

For Version 10

The above no longer works in Mathematica version 10. Instead of Plot3D, use ParametricPlot3D:

ParametricPlot3D[{x, y, (2 x y)/(x^2 + y^2)}, {x, -2, 2}, {y, -2, 2},
 PlotStyle -> Thickness[1]]

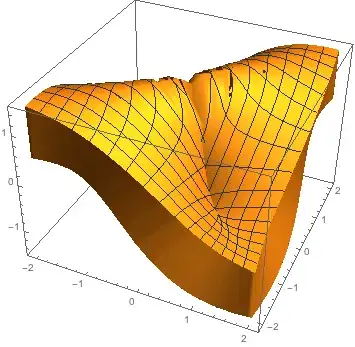

still thick

edited Jul 16 '14 at 16:52

answered Nov 24 '13 at 08:31

cormullion

24,243
4
64
133

This may be version 9 and later, not sure... – cormullion Nov 24 '13 at 08:31
What about AbsoluteThickness? edit: it seems it's not supported. – shrx Nov 24 '13 at 11:54
@shrx AbsoluteThickness doesn't appear to work for this application... – cormullion Nov 24 '13 at 12:01
@MichaelE2 :) our answers reflect our contrasting math skills... – cormullion Nov 24 '13 at 12:55
This seems to be a special-case plot style for Plot3D, ParametricPlot3D and perhaps others, which does just what I tried to do in my answer (expand along the normals), but with proper VertexNormals along the edges. Undocumented (as far as I can see). – Michael E2 Nov 24 '13 at 14:39

score 7 · Answer 4 · answered Oct 18 '16 at 19:26

7

As of Version 11 there are the PlotThemes "ThickSurface" and "FilledSurface".

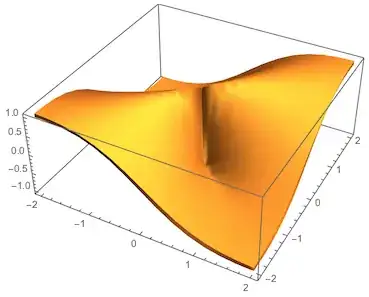

Plot3D[{(2*x*y)/(x^2 + y^2)}, {x, -2, 2}, {y, -2, 2}, PlotTheme -> "ThickSurface"]

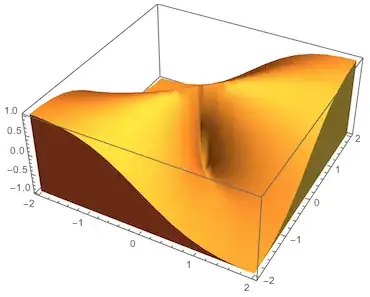

Plot3D[{(2*x*y)/(x^2 + y^2)}, {x, -2, 2}, {y, -2, 2}, PlotTheme -> "FilledSurface"]

answered Oct 18 '16 at 19:26

Greg Hurst

35,921
1
90
136

Can Mathematica 11 vary the value of "ThickSurface"? If yes how? Could you share a line of code? I have this: PlotTheme -> "ThickSurface" but the thickness is to big. thank you – M. Joe Oct 23 '17 at 10:29
1

@M.Joe I think you'll adapt Simon Wood's answer by using the undocumented option Extrusion. – Greg Hurst Oct 23 '17 at 17:49
